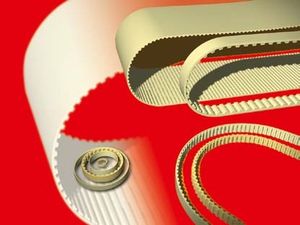

PU endless timing belts
- any special length on request
T5 - T10 - T20 AT5 - AT10 - AT20 XL - L - H - XH
RPP5 - RPP8 - RPP14 MTD8M ATG10 P2
|
|
|
|
|
|
- Available Pitch Sizes: XL, L, H, XH
T5, T10, T20, AT5, AT10, AT20
HTD®: 5M, 8M, 14M
- The widest selection available
- Steel and Kevlar ® cord construction provides excellent strength
- Cost effective
- Readily available
- Long lengths slit to various widths
Urethane Belts
Open-ended roll lengths can be thermally welded to almost any required length, or fixed end to end with our clamping plates. Truly endless is the strongest construction, recommended for drive and high torque applications.
Urethane Construction and Teeth Molded integrally the urethane protects the cords and provides a strong, flexible and excellent wear-resistant
belt. Various urethane compounds are available depending on construction. To ensure correct engagement with the pulley grooves, the teeth are precisely formed and accurately spaced. They are precisely located so that the tooth root line lies substantially on the pitch line; thus the tooth spacing of the belt is not altered by flexing.
Low friction nylon fabric on the tooth and/or back side, is available on thermal weldable urethane
|
|
|

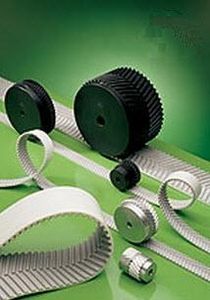

Davall Stock Gears provide a reliable source of high quality "off-the-shelf" imperial and metric timing drives. Classic, HTD, PowerGripGT, T series and Poly Chain GT
|
|
optibelt ALPHA linear for linear drives
Optibelt ALPHA linear are extruded open ended timing
belts with tension cords parallel to the belt edges.
Application is mainly in the linear technology area.
|
|
Series 51
foam systems
drive/transport
~ food, paper, packaging, weigh-feed equipment,
machine building industry, printing and folding industry
~ with Polyester fabric, efficient and flexible
~ with Aramide fabric, tear-resistant and low stretch
~ lengths from 150 mm - 4200 mm
Series 61
compact-systems
70 Shore A coating
~ glass production, paper, packaging, printing and folding
industry
~ laterally rigid, elastic or non-stretch, with or without fabric
~ lengths from 150 mm - 4200 mm
|
|
