Position display units serve to visualize the values measured with linear encoders, length gauges, rotary encoders or angle encoders. Areas of application include:
- Measuring and inspection equipment
- Dividing apparatuses
- Monitoring of measuring equipment
- Manual machine tools
- Measuring machines
Position displays from HEIDENHAIN are designed to be highly user-friendly. Typical characteristics are:
- Highly readable, alphanumeric display
- Simple, logically arranged keypad
- Ergonomically designed push-button keys
- Splash-protected front panel
- Sturdy die-cast housing
Most position display units feature a data interface for further processing in the higher-level electronics or simply to print out the measured values.
|
|
Product GK473 Gateway
Technical data - electrical ratings
Current consumption 10 years (flash / EEPROM)
Display 4 LED´s as operating status indicators
Emitted interference DIN EN 61000-6-4
Interface to SPA EIA RS485 (ASCII protocol)
Interfaces CANopen
DeviceNet
Profibus-DPV0
Interference immunity DIN EN 61000-6-2
LED operating status DP (green) fieldbus operating status
DP (red) operating and error status
RX / TX (yellow) receiving / transmitting a token (RS485)
Programmable parameters Auto-Check functions
Auto Scan SPA
Auto Message SPA Position
Auto Message SPA Error
Supply voltage range 12...24 VDC
Other products available:
|
|
|
|
|
|
The newest generation of digital readout systems, the ACU-RITE 200S, features exclusive crystal clear LCD display technology. This technology replaces the traditional LED and VFD displays still used by other manufacturers. The 200S features a 5.7", 320x240 resolution transmissive LCD display, the latest in flat screen technology.
The 200S milling LCD readout system is now totally intuitive as all prompts, instructions and help functions are now visible as text or graphics on the screen. In addition, all standard routines are now visible on the screen with graphics to guide the user through simple questions. It is no longer necessary to constantly refer to a manual or memorize codes, to access the functionality of the 200S system.
Available in the same LCD readout as a 2- or 3-axes display, the 200S for milling comes complete with bolthole pattern calculations for full and partial circles with graphics, zero reset and preset features, tool diameter compensation, near zero warning, and every other operating feature available in ACU-RITE's previous DRO product lines.
The 200S provides the NEW STANDARD of productivity for manual milling applications!
|
|

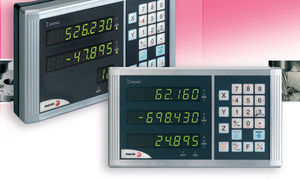

FAGOR Innova series DRO's represent a technological breakthrough in measuring and control systems for machine tools offering high quality and features at very competitive prices.
With tailored solutions
Innova series DRO's offer a great deal of standard features, some of which only FAGOR can offer and they adapt to the specific requirements of each application in order to obtain greater productivity from milling machines, boring mills, lathes, grinders and other applications.
FAGOR's new "TrueVision"
Following the feature looks of the Innova series, FAGOR presents their new 40 i DRO with an exclusive color TFT screen that displays programming assistance and solid graphics making it a lot easier to work on the various machines that may be equipped with it.
Its great viewing angle from any point of view makes this "TrueVision" the best on the market.
|
|
|
As the market leader in precision measuring devices, Acu-Rite products have consistently set the standard of innovation for nearly 50 years. Proudly designed and manufactured in the USA, Acu-Rite products retain a tradition of superior quality and are preferred by machine tool builders worldwide.
|
|
200s readout systems
As the industry standard in digital readout systems, the Acu-Rite 200S offers state-of-the-art features for milling, turning and grinding applications.
# 2 or 3 axes 5.7” Transmissive LCD display
# Job Clock
# Feed Rate Display
# Multiple Language Support
# Absolute/Incremental
# Near-Zero Warning
# Help Function
# 16 Tool Offsets/Diameter
# Preset and zero reset
# 4 Function Calculator/Trig Calculator
# Instant Inch/mm conversion
# Position-TracTM
|
|
ACU RITE RADIAL makes its radial drill still faster!
ACU RITE radial
Those, high performance position display for radial and high-speed radial drills, which can be served easily.
The collection of the machine motion is made by means of a ACU RITE length measuring system at the arm and - usually - by a friction wheel system at the column. With the help of a further measuring system at the guide also the drilling depth can be measured and indicated.
|
|
Digital Readout
A complete system consists of one or more Linear Encoders, commonly referred to as scales, and a Digital Readout.
The Linear Encoder monitors the machine travel and the Digital Readout (DRO) displays the distance moved or machine table position to the operator.
The axis display is large and clear and the keyboard is designed to be easy to use.
Many functions can be taken off the keyboard to support the work at the machine.
Depending on application you can choose between different versions of the readout.
|
|
A very powerful micro-controller manages and processes all the information [position, calculation, etc.] trasmitted by the transducers or entered by the user. Having such a highly evolved but user-friendly digital Readout means increasing the production performance of the machine on which it is installed considerably.
|
|
|
NAI offers a wide variety of industry leading angle position indicators and measurement instruments for the defense and aerospace markets. Its best-of-breed performance is delivered in a variety of accuracy and resolution grades, with various packaging options available. NAI also offers form, fit and function replacements for the obsolete DDC angle position indicator models AP-30610, AP-30611, AP-30710, AP-30711 and AP-30712.
|
|
|
The Acu-Rite 300S is a fully programmable 4 axes readout system, now available with a full color display. With the capability to store and create a library of programs the 300S is everything you need to create, edit and execute programs on your manual machine tool.
|
|
High Accuracy Lathe Packages
Fits Most Popular Lathes Up To 80
* Uncompromising accuracy and repeatablity X-axis display resolutions to 0.00002"
* Fits most popular lathes up to 80" between centers
* Display includes 9 tool offsets for increased productivity
* Optionally, a third scale can be installed on the compound for Z1 or Z2 measurements
* All brackets and hardware included for quick, easy installation
* Display: LH52-3 Scales: GB-A and SJ700
|
|
|
The Acu-Rite 300S is a fully programmable 4 axes readout system, now available with a full color display. With the capability to store and create a library of programs the 300S is everything you need to create, edit and execute programs on your manual machine tool.
|
|
Electronic-digital position indicators proviede flexible, electronic capture of measured values and semi-automatic adjustment control at axels.
Benefits:
- Spindle pitch, direction of rotation and decimal point can be freely programmed
- Length or angle indication
- Incremental measurement function or offset input
- Zero setting of the shaft is performed at the touch of a button
|
|
|

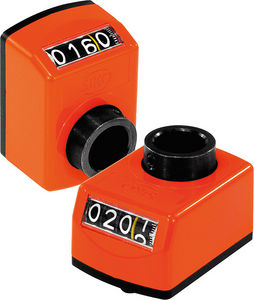

Position values on shafts and spindles can be simply and clearly controlled with the original SIKO counters. Extremely simple installation and retrofitting is one of the decisive advantages. The displayed value can be adapted to the required spindle pitch with an integrated gear unit.
|
|
| ... products without technical information |
| |
Modern process pants place ever increasing demands on the quality and functionality of the valves used. This also includes constantly available information about the valve status to ensure high process reliability in the plant.
To meet this demand, we have developed a new feedback diagnosis system.
|
|
| ... products without technical information |
| |
Z57
- Easy handling
- External set/reset/inhibit inputs
- Digital brightness control
- Extensive programmable output performance
- Potential free output relays (changeovers)
|
|
|
Mechanical control knobs are handy adjustment units with an integrated measurement system for variable mounting situatuions. A reduction gear enables a extremely fineresolution tracking and precise absolute depiction of adjustment values directly at the measuring point.
|
|
| ... products without technical information |
| |
Electrical position indicators and combi switchboxes
Intelligent electrical position indicators with automatic commissioning and initialisation, available for quarter turn and linear actuators, field-bus capable combi switchboxes with integrated pilot valves, customer-specific special solutions, versions for OEMs and other makes available
|
|
