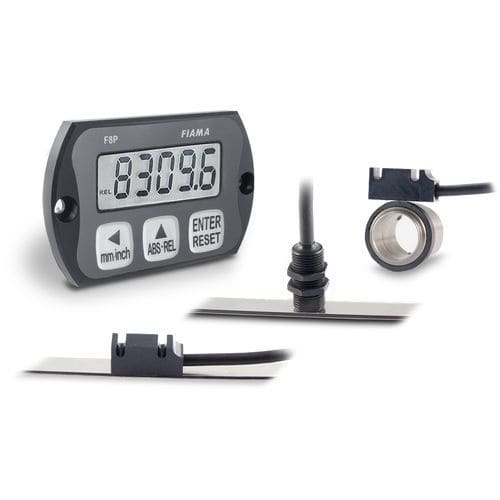

LCD display F8P

numeric10-digitfor sensors

F8P display for panel mounting. Small size with integrated position sensor to be combined with P50 magnetic band or DM30 magnetic ring, offers a complete system for measuring linear and angular displacements. Main features: • LCD display with digit 10mm height, high visibility. • Housing in black anodized aluminum, easy installation through two screws on both sides of the instrument. • Powered by a lithium battery 1 / 2AA 3.6V, 4 years life. The battery holder is external to the instrument for quick and easy replacement and is protected against polarity reversal in the case of incorrect installation of battery. Main functions: • Setting of counting direction, measurement units (mm, inches, degrees), decimal point, and multiplication factor • Absolute/relative and reset/preset mode
