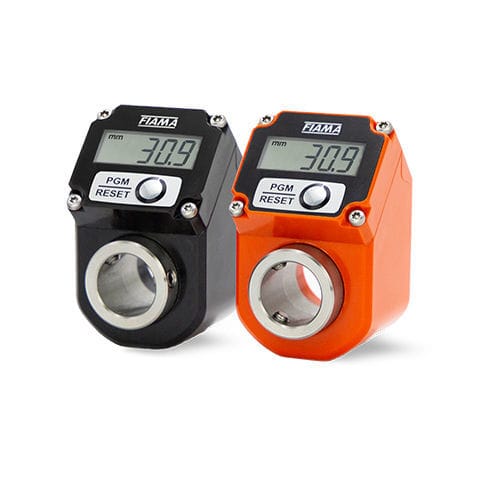

Position indicator EP3

digitalhollow-shaftelectronic

The EP3 electronic indicator allows monitoring of adjustments to eliminate errors and a precise reading of linear or angular displacements. Applicable to many types of industrial machinery: packaging; wood, metal, stone, glass, plastic and paper processing; in the chemical, Main features: •100% interchangeable with mechanical indicator OP3 • Easy mounting through hollow shaft. • Powered by a long-life battery, easy replacement from the front (without loss of position and parameters). • Display with 7,5mm-high-digits, which allow excellent readability also from a distance. • Hollow shaft made of stainless steel; shock, vibration and dirt resistant plastic case. Main functions: ￭ Easy set-up with just one button for set-up of all parameters. ￭ All activated functions are identified by a symbol on the display. ￭ Setting of the value shown on the display for every rotation of the hollow shaft; measurement direction, number of decimals. ￭ Parameters: reset/preset; absolute/relative reference; mm/inches conversio, degrees, 3 distinct origins.
