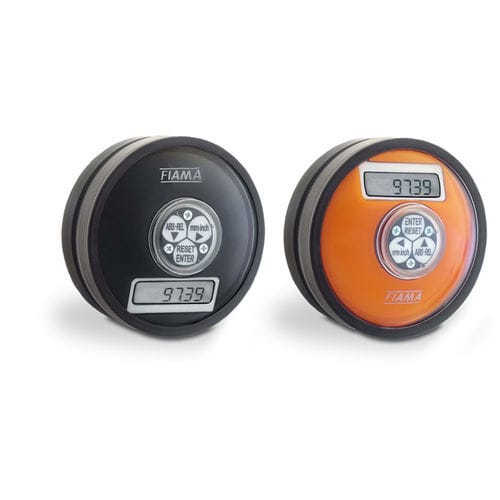

Position indicator EN9 series

digitalprogrammableelectronic

Programmable electronic indicator for the measurement of linear or rotary movements on various types of industrial equipment (packaging, woodworking, metal-working, etc.). Main features: • The display has 5 digits which are 7.5mm high plus negative sign, which can easily be read also at a distance. • The instrument and buttons are protected by transparent covers. • The power is supplied by a ½AA 3.6V battery which lasts approximately 4 years. Replacing of the battery, which is indicated by an icon when necessary, is carried out easily and without loss of the parameters. Main functions: ■ Directly programmable by the three front keys ■ Setting of the value shown on the display for every turn of the hollow shaft; measurement direction, number of decimals. ■ Parameters of reset/preset; absolute/relative reference; mm/inches conversion and display in degrees. 3 distinct origins for the correction of by using different tools and the offset function for the compensation of tool wear. Available versions: - EN90 is a gravity indicator suitable for installation on horizontal shafts; can be supplied with handwheel models P125P, P150P, P175P, P200P or the P100L s tarwheel. - EN90F is a fixed-reaction indicator suitable for mounting on vertical or inclined shafts; can be suupplied with handwheel models P125PF, P150PF, P175PF, P200PF or the P100L starwheel.
