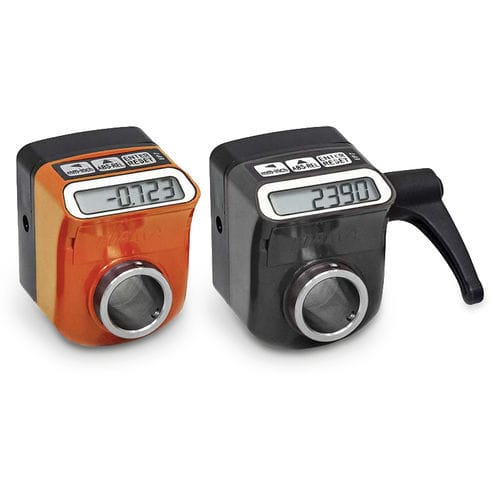

Position indicator EP7

digitalhollow-shaft

The EP7 electronic indicator, which is supplied with an internal battery and includes in the same case the position sensor and the display unit, measures linear or angular movements, applicable to many types of industrial machinery (packaging, woodworking, aluminium, coil etc). Main features: • Simple assembly through the hollow shaft • Powered by long battery life, easy replacement from the front (without loss of quote and parameters) • The display has 7,5mm-high-digits, which allow excellent readability also from a distance. • The hollow shaft is made of stainless steel; shockproof, self-extinguishing plastic container. Main functions: ▪ Directly programmable by the three front keys ▪ On the display all activated functions are shown by a symbol. ▪ Setting of the value shown on the display for every turn of the hollow shaft; measurement direction, number of decimals. ▪ Parameters of reset/preset; absolute/relative reference; mm/inches conversion and display in degrees. 3 distinct origins for the correction of by using different tools and the offset function for the compensation of tool wear.
