LCD display F7

numeric7-digitfor sensors

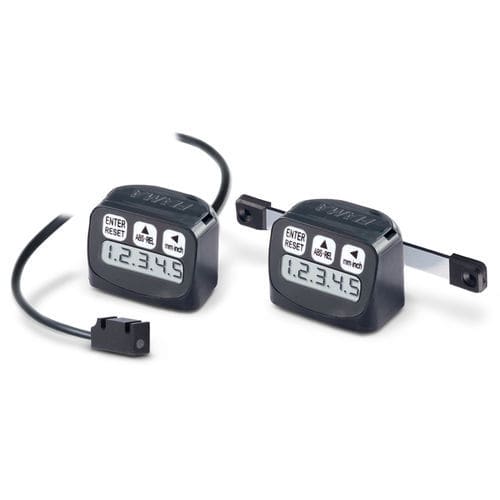

The F7 is a display unit with integrated or external position sensor, in combination with the P50 magnetic band or AM14 (with Ø14) or AM20 (with Ø20), magnetic ring, is a complete system to measure linear movements. Main features: • The electronics is inside a grey plastic housing which is robust, shock-resistant, and self-extinguishing. • Two versions of the F7 are available: - F7-E with external sensor - F7-I with integrated sensor • The display can be fixed quickly and easily using the two threaded holes on the back of the housing or alternatively with the SM bracket support, the SF flanged support or the SN swivel support , which can be supplied optionally (see pg. 4-5). • The unit is powered by a ½AA 3.6V battery which lasts approximately 4 years. Main functions: ￭ Setting of counting direction, number of decimal places, units (mm or inches), absolute/relative measurement, reset/preset. ￭ The displayed quota can be corrected by a programmable multiplication factor, with values between 0.0001 and 99999. ￭ When the battery is almost exhausted, an icon will appear to advise the operator to substitute it. This does not effect the configuration parameters and also the correct measurement is maintained if the magnetic band or ring is not moved during this operation.
