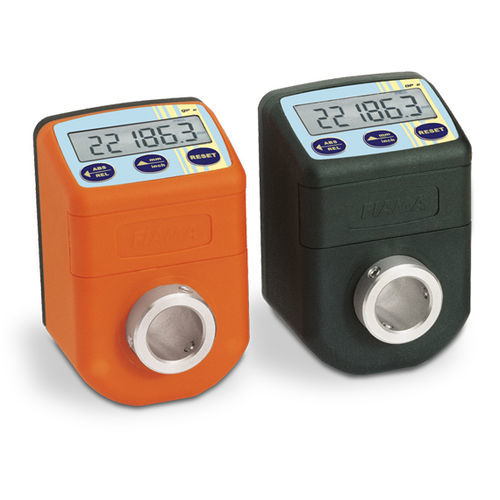

Position indicator EP2 series

digitalhollow-shaft

The EP- electronic indicator, which is supplied with an internal battery and includes in the same case the position sensor and the display unit, measures linear or angular movements, applicable to many types of industrial machinery (packaging, woodworking, aluminium, coil etc). Main features: • Simple assembly through the hollow shaft • Powered by long battery life, easy replacement from the front (without loss of quote and parameters) • The display has 6 digits besides a sign (range -999999 to 999999,) and has 10 mm-high-digits for an excellent readability also from a distance. • Shockproof, self-extinguishing plastic container. Main functions: ■ Directly programmable by the three front keys ■ On the display all activated functions are shown by a symbol. ■ Setting of the value shown on the display for every turn of the hollow shaft; measurement direction, number of decimals. ■ Parameters of reset/preset; absolute/relative reference; mm/inches conversion and display in degrees. 3 distinct origins for the correction of by using different tools and the offset function for the compensation of tool wear. Available accessories (see menu on the right ): − Flange block shaft FL-B; − Movement knob PM; − Reduction bushes BF; − Handle V.M; − Handwheel V.R.
