with single diaphragm, DS150, static pressure max 100 bar
with bellow, DS100-150, max static pressure 25 bar
with double diaphragm, DS100-150, max static pressure 200 bar
with double diaphragm, DS100-150, max static pressure 100 bar
with double diaphragm, DS100-150, max static pressure 400 bar
with double Bourdon tube, DS100
|
|
Model : MN14
DS : 100-150
Mechanical intervention : sliding, inductives, electronic
Intervention number : 1...2
Protection degree : IP 44
|
|
Model : MN17/L
DS : 250
Ranges : 0...1/0...1600 bar and vacuum
Working pressure : max 75% of FSV
Accuracy class : 0.1...0.25 as per EN837-1
Protection degree : IP 44
Wetted part : AISI316L, beryllium copper alloy
Other features : anti-parallax dial
|
|
Capsule
Diaphragm
Differential

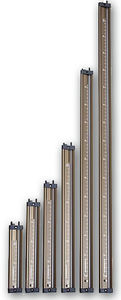

Glass tube pressure gauges
Electric contacts
|
|
Winters Instruments' Safety Case Gauge is designed to be used where safety is a major concern. With a solid front and blowout back, this gauge features a 0.5% ANSI/ASME Grade 1A accuracy, full rotary movement and a micrometer pointer for easy calibration. The 4.5" dial makes the gauge easy to read even from a distance (4" and 6" dials, 1% accuracy available).
This all stainless steel Safety Case Gauge is ideal for use in process, petrochemical and oil & gas industries, where operator safety is of paramount concern. In the rare chance of a catastrophic failure, a solid stainless steel wall separates the bourdon tube from the front of the gauge, forcing any pressure safely out of the back of the case. Operator safety is further enhanced by the standard safety glass lens. |
|
Model : SP
DS : 63-100
Ranges : 0...1/0...40 bar and vacuum
Working pressure : max 75% of FSV
Accuracy class : grade A as per ASME B40.1
Protection degree : IP 67
Wetted part : AISI316L
Other features : fillable and filled case
|
|
Model : MN9/N
DS : 63
Ranges : 0...60/0...600 mbar
Working pressure : max 75% of FSV
Accuracy class : 1.6 as per EN837-3
Protection degree : IP 55
Wetted part : copper alloy
|
|
Ranges : 0...1/0...600 bar and vacuum

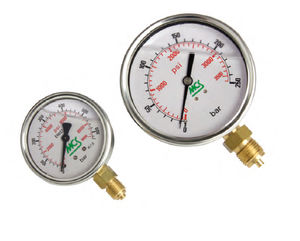

Industrial service, Liquid filled
For Process Industry
For oil industry, NACE std.
For Food and Sanitary Industries
Laboratory and Test
With Electric contact and micro-switches
|
|
The Models 1530 and 1535 are feature ±1% of span accuracy and utilize 300 series stainless steel case. These heavy duty 2", 2-1/2" and 3-1/2" pressure gauges are specifically designed to withstand the corrosive atmospheres, such as salt air, sour gas, and other industrial gases.
These gauges are also used in specialty gauge regulators and gas cabinets, as well as many other applications. The Model 1535 features
all internal wetted surfaces of 316L, making these gauges ideally suited for use with corrosive process media.
The Model P1535 is available in pressure ranges from 30" Hg VAC-0 psi to 0-3000 psi. This precision gauge incorporates rugged case construction with rear pressure relief, and a seamless Bourdon tube with welded joints for heavy duty service.
SPECIFICATIONS
SIZE: 2", 2-1/2", and 3-1/2"
CASE: Drawn stainless steel polished with pressure relief in
back of case
RING AND WINDOW: One piece, threaded polycarbonate
POINTER: Aluminum, adjustable, black finish
DIAL: Aluminum, white background with black markings; dual scale dials available in some pressure ranges
BOURDON TUBE
P-1530: Beryllium copper, silver brazed
P-1535: 316L seamless stainless steel
CONNECTION
P-1530: 1/4-18 ANPT brass
P-1535: 1/4-18 ANPT 316L stainless steel
RANGE: VAC-0-30 psi to 3000 psi
ACCURACY (Grade 1A):
±1% of span for range to but not including 3000 psi
±2% of span for ranges 3000 psi and above
SCALES: psi, bar, kg/cm2, kPa (single or dual scale) |
|
Full stainless steel made pressure gauges and thermometers for chemical and food industries.
Industrial pressure gauges: ND100 and 63 dials, IP65, BSPP axial and radial conexions, up to 250 bars.
Sanitary diaphragm pressure gauges: ND100 and 63 dials, IP65, Clamp, SMS or DIN conexions, up to 25 bars.
Thermometers: ND100 and 63 dials, 100mm Bulb length horizontal or vertical connexion up to 250°C
|
|
Application
For non-corrosive gaseous and
liquid media. With open connecting
flange also suitable for viscous and
polluted media.
! When measuring gas or vapour,
the instruments must be used
in accordance with the safety
recommendations of EN 837-2
(see appendix). |
|

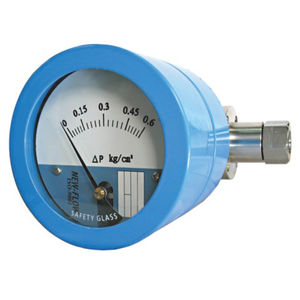

| Differential gauges type BDT13 are available in bourdon tube, diaphragm or piston systems. With the differential gauge it is possible to measure have one pointer to read the differential pressure. The variation in high static pressure makes this gauge suitable for almost all differential measurments. |
|
The Ashcroft® Digigauge® Family brings industry leading features to the marketplace.
The award-winning Ashcroft® digital test gauge features unmatched accuracy specifications of .05% Terminal Point, Total Error Band full-scale including span, linearity, hysteresis and temperature from 0 degrees to 1500 degrees F.
The new Ashcroft Type 2089 digital gauge comes in the industry’s smallest case size of (3") yet has the largest display – larger than even competitors' 4" gauges. The display offers backlighting with adjustable contrast levels. This gauge features 12 selectable engineering units, seven languages, and it can be calibrated in the field. Calibration and dampen modes are password protected. Three AAA Alkaline batteries provide over 1000 hours of battery life. The gauge is CE approved and FM approved for intrinsically safe operations, Class1, Division 1.
The Ashcroft® Type 2274 industrial digital gauge has the breakthrough features of 4-20 mA output, switching capability, and an extra large digital display. It is available in three case types.
The general purpose digital gauge, Type D1005PS, has 1/2% full-scale terminal point accuracy, large 1/2 inch character size and brings standard features to the digital gauge market that, until now, were either not offered or were provided only as options on competitor's products.
|
|
One M1 digital pressure gauge can replace three or more mechanical gauges
Unlike Mechanical Gauges:
- Dropping can’t affect accuracy. The housing and boot are compatible with many industrial fluids including Skydrol®
- Overpressure doesn’t affect accuracy
- Repeatable readings
- No temperature or gravity effect
Unlike Other Digital Gauges:
- More resolution
- Shock mounted electronics
- Protected LCD
- Uniform backlight
- Very easy to use, no manuals, no menus, no problem!
Unlike Anything Else:
- 0.2% of reading! Like a deadweight tester!
- Calibration report with data at five temperature
- Replace three or more 0.25% standard gauges
- CE certified and manufactured under a ISO 9001 registered quality system
- Runs on 2 AA alkaline batteries providing up to 30,000 hours of service
- Precision and performance at an affordable price
Pressure is Our Business!
|
|

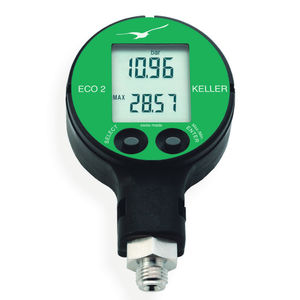

Battery operated digital reference pressure gauges:
Type TLDMM: Accuracy ±0.05% f.s.
Type TLDMM-A01: Accuracy ±0.1% f.s.
Type TLDMM-A02: Accuracy ±0.2% f.s.
Type LDM 70-E25: Accuracy ±0.25% f.s.
Type LDM 70-K50: Accuracy ±0.5% f.s.
A lot of different pressure ranges between 0/100 mbar and 0/2000 bar available.
The pressure unit is switchable to psi, MPa, and other units.
Robust contruction, wetted parts in stainless steel.
Precise measurement of pressure and pressure peaks.
Optional with RS232-interface (TLDMM-types)
Optional in build-in case for panel mounting (TLDMM-types).
Pressure port: 1/2" BSP male, stainless steel |
|
The HPM110 digital pressure gauge is designed for continuous monitoring of oil, gas, water, hydraulic and other pressure media in mobile equipment, industrial hydraulics, compressors and process control equipment.
The HPM110 offers an economical solution to monitoring pressure and peak pressure with a simple visual display. The hand-held unit can be installed when required using a standard test point, or left permanently connected in a system. Since the HPM110 is battery powered it requires no external wiring.
The HPM110 simultaneously displays actual pressure, peak pressure, battery level and the engineering units selected. The back light can be switched on at the press of a button. Using the
buttons on the front panel the user can clear the peak value, display min, max and actual pressure, reset the zero point and change the engineering units. The unit is available in four models, please see reverse for details. |
|
Application
For high accuracy electronic pressure measurement with local digital
display and use in applications such as hydraulics, pneumatics, machine
and plant construction, gas and the medical technology field.
Description
Compact microprocessor controlled pressure gauge with thick-film ceramic
measuring cell. The microprocessor processes the signal received
from the pressure sensor, converts it into the desired unit and
displays it. Due to its modular design, the pressure gauge can be
adapted in many ways to suit customer-specific requirements. |
|
A new line of Ashcroft® differential pressure gauges brings a high-quality, cost- effective pressure instrument to the market. The new 1130 Series from Dresser Instruments uses a close-coupled magnetic rack-and-pinion design with four pole magnets to achieve superior stability.
The Ashcroft Type 1130 Series offers an exclusive, weather-resistant stainless steel case, suitable for many processes and environments. An exclusive design on the Ashcroft 1130 Series with an aluminum body, enables the user to order the unit with a field-adjustable switch or to add the switch at later date. This translates to a cost savings as this versatile and efficient unit can be re-adapted for changes in the application.
Visit our website for other Ashcroft differential pressure gauges.
|
|
XP2i-DP Wet Wet Differential
XP2i-DP Features:
- Burst disc protected against accidental over pressure
- High accuracy, long term vacuum measurement
- 0.1% of reading wet/wet differential transducer
- 15 and 100 PSI versions rated to 100 PSI static pressures
- Customizable for panel mounting or portable configurations
- Programmable for custom engineering units
- ATEX / IECEx / CSA intrinsically safe
- Optional datalogging capability
- LCD backlit display
- Easy to use buttons
Applications
- Gas filter testing
- Level measurement
- Rotary gas meter testing
- Autoclave vacuum monitor / calibration
Included with every new XP2i-DP Differential Digital Pressure Gauge is an A2LA accredited calibration certificate with test data recorded at 5 different temperatures - proving that it meets published specifications over the entire operating range. You won't get this kind of detailed report anywhere else! |
|

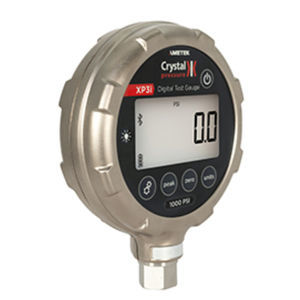

Unlike Mechanical Gauges:
- Dropping can’t affect accuracy
- Overpressure doesn’t affect accuracy
- Repeatable readings
- No hysteresis
- No temperature or gravity effect.
Unlike Other Digital Gauges:
- More resolution
- very rugged water resistant case is gasketed per NEMA4 and IP66
- backlit display
- available with optional dual line pressure display to view peak and live pressure simultaneously - ideal for relief valve testing
- easy to use buttons
- intrinsically safe
- 5 full digits – great for leak testing
- can be calibrated via the keypad or the RS232 port or automatically using a calibration grade pressure controller
Unlike Anything Else:
- 0.1% of reading! Like a deadweight tester!
- Calibration report with data at five temperature
- Replace three or more 0.25% standard gauges
- Intrinsically safe (ATEX) pressure recorder option
- Pressure recording by DataLoggerXP to record pressure and ConFigXP to enable or disable features
- Customize your XP2i for panel mounted configurations or portable applications
- any XP2i can be cleaned for oxygen service
- CE certified and manufactured under a ISO 9001 registered quality system
- Runs on 3 AA alkaline batteries providing up to 1,500 hours of service
Pressure is Our Business!
|
|
Your ATEX Compact Vacuum Meter for 1050 to 1 mbar
The compact vacuum meter VD82 is fully electronic and combine high quality sensors and modern microcontroller technology with a handy design.
Our customers appreciate these easy-to-operate gauges as reliable tools in plant engineering, service and laboratory.
The digital display of your vacuum meter shows the exact absolute pressure. Sensors with temperature compensation and sophisticated evaluation electronics guarantee precise and reproducible measurement results.
Further Advantages
- External sensor
- Display of minimum and maximum pressure
- Automatic switch-off or continuous operation
- High battery lifetime due to clocked measurement
- Operation with battery or mains adapter
- Robust stainless steel flange
- For mobile use or fixed installtion |
|
| The Badotherm high precision gauges are available as 160mm dia. these gauges are all stainless steel construction with a baffle wall and are suitable for corrosive environments and gaseous or liquid media that wll not obstruct the pressure measuring system. optional are a mirrored dial, phosphor bronze tube for laboratory measurement or a 0.2% accuracy. |
|
Application
For measurement of extremely high pressures in corrosive, gaseous and
liquid media which are not highly viscous and do not crystallize.
Suitable for use in corrosive atmospheres.
Temperature performance
Indication error when the temperature of the measuring element
deviates from 20 °C:
rising temp. approx. ±0.4 %/10K
falling temp. approx. ±0.4 %/10K |
|
DIAL SIZE
1½”, 2", 2½”, 4"
Liquid Fillable Gauges P-1550 Series
Overview
Series 1550 liquid filled gauges combine low cost and high accuracy with a rugged stainless steel case and brass internals for corrosive and high vibration environments.
Typical applications include: pumps, compressors, HVAC, petrochemical
processing, and power generation.
Series 1550 gauges are available in stem (Model 1555 & 1559) or panel mount (Model 1558) configurations with brass socket; phosphor bronze Bourdon tubes are supplied to meet specific customer requirements.
Series 1550 gauges come in 18 vacuum, compound, and gauge pressure ranges (see specifications). Glycerin is standard fill fluid, with silicone or mineral oil available on request. Dry (unfilled) gauges can also be supplied, off-theshelf, by your local stocking U.S. Gauge distributor.
SPECIFICATIONS
DIAL SIZE
1½", 2", 2½", 4"
RANGES
Vacuum 30"-0 Hg VAC (counterclockwise rotation with increasing vacuum) Compound: 30" Hg VAC 0, 15, 30, 60, 100 psi Gauge: 0-15, 30, 60, 100, 160, 200, 300, 600, 1000, 1500, 2000, 3000, 6000 psi ACCURACY: ±1.6% FS
LIQUID FILL
Glycerin is standard but silicone and mineral oil are available. Dry (unfilled) gauges are available as off-the-shelf stock through local distributors |
|

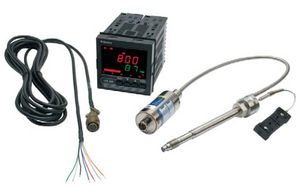

| Dynisco's offers a line of robust Mechanical and Electronic Melt Pressure Gauges that have been designed specifically for harsh and rugged environments of the Extrusion Industry. Select from one of the many rugged and reliable gauges offered on the market today. No matter what your need for measurement is, whether it is for safety or just a display of the pressure, Dynisco has the product. |
|
Measures flow and differential pressure down to 0.001 pascals.
Has square root function for direct readout of flow or velocity.
Will compensate for temperature and absolute pressure variations.
Datalogging facility with RS232C output.
Display can show peak, valley and trends.
The excellent instrument is used extensively in educational and research establishments as well as by most fan manufactures and wind tunnel operators. With a large dot matrix LCD display, it is ideal for most applications. |
|
XR81 Series
AMETEK's XR-Series All-welded Gauge and Seal offers customers a lower cost alternative to an individual gauge and diaphragm seal with the added benefit of a reduction in potential leaks. Our high quality, rugged SOLFRUNT® 1981 (SST internals) SOLFRUNT® 1986 (Monel® internals), gauge are mounted and welded onto our M&G XR Diaphragm
1500 Series
The Models 1530 and 1535 are feature ±1% of span accuracy and utilize 300 series stainless steel case. These heavy duty 2", 2-1/2" and 3-1/2" pressure gauges are specifically designed to withstand the corrosive atmospheres, such as salt air, sour gas, and other industrial gases
1900 Series SOLFRUNT®
SOLFRUNT gauge cases feature an integral wall between the measuring element and the window, and a pressure relieving back for increased safety. They are available in various styles, case materials, and mounting arrangements, and wetted parts are available in bronze, stainless steel, and MONEL®.
508/1409 Series Portable Test Gauges
U.S. Gauge 3" test gauges combine high accuracy, rugged construction and portability for a wide range of field and production testing applications. Instruments are available in chrome plated brass Series 508 and chrome plated ABS Series 1409 case designs
659 Series SOLFRUNT®
When safety is your top priority, AMETEK U.S. The Model 659 provides users with a solid-front and pressure-relieving back design in all stainless steel construction |
|
Miniature pressure & vacuum gauges save space. Ideal for use with Beswick pressure & vacuum regulators, valves and fittings.
Material: Brass threads with plastic gauge dial and cover. |
|
Square Gauges

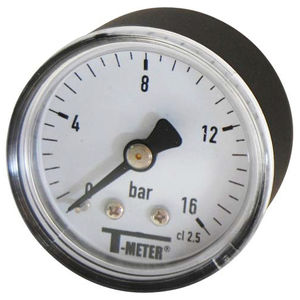

Axial 1/8" ABS 0 - 2,5 40 x 40 360A770
Axial 1/8" ABS 0 - 16 40 x 40 360A774

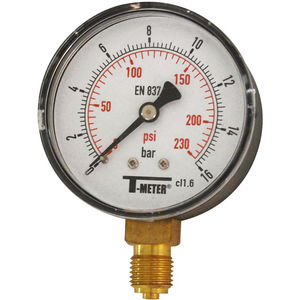

Round Gauges
Axial 1/8" ABS 0 - 10 Diam. 25 880A114
Axial 1/4" ABS 0 - 16 Diam. 50 880A325

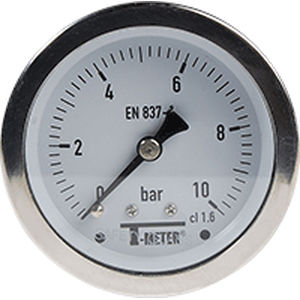

Gauges for panel mounting
Axial 1/8" Steel 0 - 10 Diam. 40 880C214
Axial 1/4" Steel 0 - 25 Diam. 63 880C426
Round | | |
