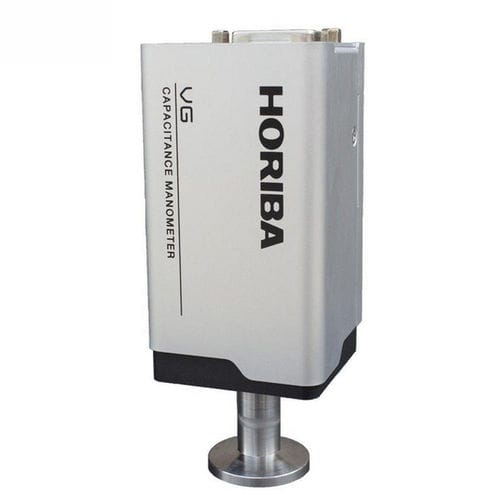

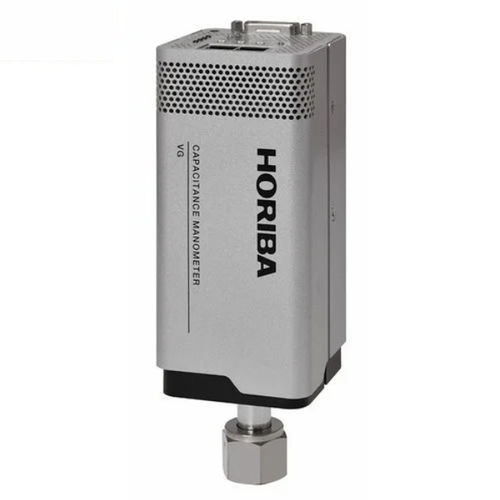

Analog pressure gauge VG S series

absolutediaphragm

Absolute pressure measurement is crucial for most of vacuum processes in various industries including Semiconductor, FPD, HDD, PV and Coating. A capacitance manometer determines the total pressure from the deformation of the diaphragm that occurs when a pressure difference is applied to both side of the diaphragm. The strong points of the capacitance manometer over other methods are: •Higher precision •Less gas dependence in pressure output •Relatively resistant to corrosive gases Features Compact self heating design Original signal processing method for accurate measurement SUS316L diaphragm Selectable from temperature-controlled (55, 100°C) or non-heating type ONE PUSH ReZero Power requirements +/-15VDC or 24VDC CE & RoHS compliant
