Spectrometer analyzer QL series

gasmonitoringspectrum

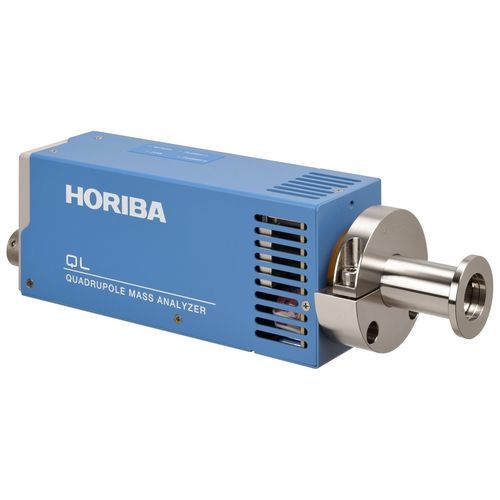

The Micropole System QL Series, which is a quadrupole mass analyzer, is one of the smallest complete mass spectrometer systems. The compact size is achieved using a patented array of miniature quadrupole mass filters. The array offers similar or greater sensitivity than conventional mass spectrometer system but uses just a fraction of the volume. This system is capable of operating at much higher pressures than traditional systems, so the need for additional differential pumping equipment is reduced. The sensors are factory pre-tuned and calibrated against transfer standards to allow direct interchangeability by the user without the need for technical expertise to calibrate on install. Features Extremely compact size and lightweight 1/20th size when compared to conventional residual gas analyzers making it easy to integrate to any system High performance Mini array of 9 quadrupoles gives excellent sensitivity at a fraction of the volume of traditional quadrupoles High pressure operation Can be used at up to 0.9Pa (7mTorr, 9 x 10-3mbar) resulting in the reduction or elimination of expensive vacuum pumping for many applications Interchangeable sensor head in calibration The sensor heads are pre-tuned and calibrated prior to shipment allowing the user to make sensor changes in the field without the need for fine tuning or technical expertise Network sensors Up to eight sensors can be monitored by a single PC using RS-485. PC-less scan operation by external I/O is also possible. User friendly software Micropole Scanner™ 2 software allows the user to monitor partial pressures of gases in various modes e.g. trend graph, spectrum graph, bar graph.
