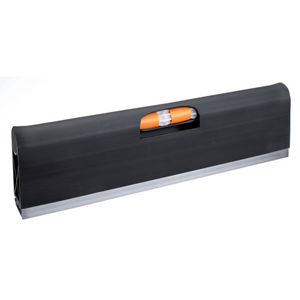

Applications such as machine guards, lifting tables, theatre stages and many others are typical. Safety edges, when activated, will immediately switch off the power source. Prior to the launch of the Haake safety edge, either electrically operating devices to the N/O principle (two conductive strips or layers are brought together when the safety edge is operated), or opto-electronic systems (a light beam is interrupted) were the standard product options available on the market. Such devices operate via signals, which need to be transformed and processed via a control unit.
|
|
|
The SK-Series Control Relay is designed to be used in conjunction with safety elements such as Safety Contact Mats, Safety Contact Edges or Safety Contact Bumpers. The SK series relay utilized a current principle for monitoring the safety contact elements. This method of monitoring makes certain that the high demands for fault recognition as well as for safety are met. Relay switch status along with operating voltage status is displayed via LED’s. SK Series Relays are available in a variety of models depending on the application and conform to safety categories 2 and 3, EN 954-1 and are certified.
|
|

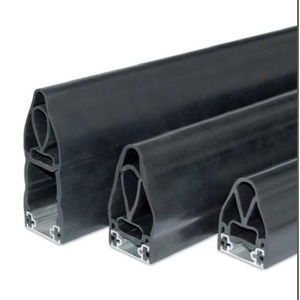

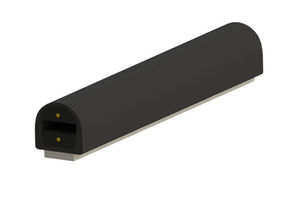

Safety Edges are used to protect dangerous closing edges at automatic doors and gates, shutters, vehicle doors or in the machinery industry. Depending on the force and speed of the moving part a suitable rubber profile has to be selected. Bircher Reglomat safety components are developed and certified to meet todays European Safety Standards.
|
|

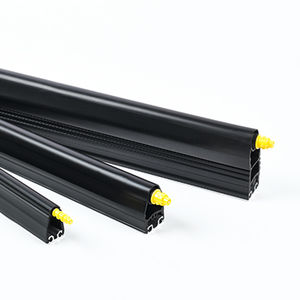

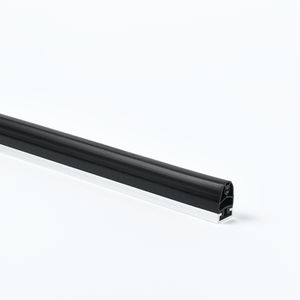

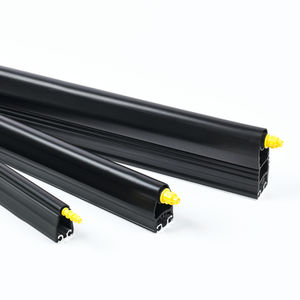

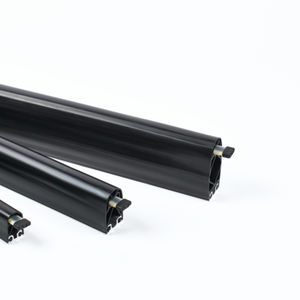

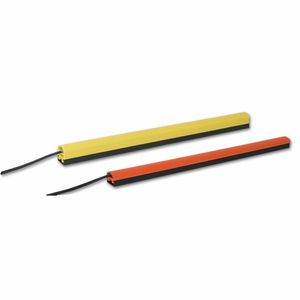

From lifting platforms to machine doors, from sliding shelves to roll-up gates - the Mayser Safety Edges based on the closed circuit principle reliably protect persons from potentially dangerous automatic movements. Slight pressure is sufficient to avert the danger.
Whatever you want to protect with the aid of Mayser Safety Edges - you will find them in the required length. In addition to the comprehensive standard range, customized versions are available, too. Even angled Safety Edges and Safety Edges without dead zones are possible.
|
|
|
|
|
|
Range LINEOCONTACT of AE&T is a range of sensitive switches (ribbons, edges, carpet) designed to measure to adapt to the whole of your applications:
Safety Machine
Automated devices
Conveyer
Emergency call
Sliding doors
Control presence
Etc
Technology used is simple and reliable. It is appropriate for the standard environments like severe.
Flexible device, the range adapts to your needs: you choose the length, dimensions, the color, material, the sensitivity, etc which is appropriate to you and carry we it out for you.

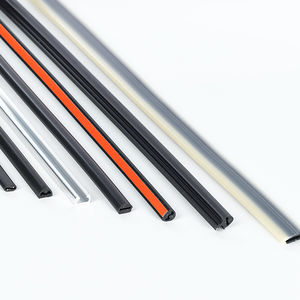

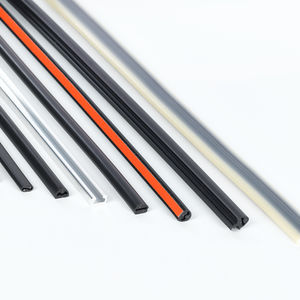

SENSITIVE RIBBONS:
system of "contact in any point" which makes it possible, by a simple pressure, to close the contact and to thus start a call, an alarm, an opening, a flash, etc
Our sensitive edges have very a long life of life (several million contacts in the same point)
SENSITIVE EDGES
system "anti-pinching" made up of sensitive edges integrated in rubber sections. This system makes it possible to close the contact by a pressure as well side as vertical.
The closing of the contact thus starts a call, an alarm, an opening, a flash, etc
SENSITIVE CARPETS
system which makes it possible to detect the presence of a person or an object for a very great number of applications.
Possibility of integrating your logo or of the geometrical forms into it to measure!
RELAY OF CONTROL
system of interface between your sensitive switch (borders, carpet, ribbon) and your application (carries, barrier, alarm, travelator, etc) and to activate it.
|
|
