PERFORMANCE
Power Output: 500mW@5V(Default), 1W@9V(customized)
RF Line-of-sight Range: 4000m@1200bps, 2000m@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200/38400bps optional Receiver Sensitivity: -124dBm@1200bps, -118 dBm@9600bps
Supply Voltage: +4.75~5.5VDC
Transmit Current: <400mA@500mW, <500mA@1W
Receive Current: <40mA
Sleep Current: <5µA optional ex-factory
Frequency Band: 433MHz(Default)
400MHz~470MHz(customized)
Channel: 8(Default), 16/32 (customized)
Default Interface: COM1:TTL/UART,COM2:Non-Standard RS232 or RS485
Size: 53mm×38mm×10mm
Weight: 34g
Antenna Base: 50Ω
Operating Temperature: Industrial: -35℃~+80℃(TCXO crystal)
Commercial: -20℃~+60℃
Frequency Stability ±2.5ppm Industrial
±10ppm Commercial |
|
25kHz UHF Narrow Band FM Multi Channel Transmitter and Receiver.
The TLC2H transmitter and RLC2H receiver offer a low power, reliable data link in an industry standard pin out and foot print.
This makes the TLC2H/RLC2H pair ideally suited to those low power applications where existing wideband modules have insufficient range, or where low cost multi-channel operation is needed without compromising on RF specification or regulatory requirement.
|
|
Power Output:10~20mW. Single transmitter
RF Line-of-sight Range:≥800m
RF Effective Rate: 1200bps(Default),4800bps(customized)
Supply Voltage: 3.1~5V
Transmit Current: <45mA
Sleep current: <20µA
Frequency Band: 430.675MHz(Default)430~435MHz(customized)
Channel: Single Channel
Bandwidth: 10kHz
Interface: TTL(Default), download/setup
Size: 47mm*26mm*8mm
Antenna: 50Ω, with HAC-TH433 Spring Antenna
Weight: 22g
Operating Temperature:
-20℃~+60℃ 430.675MHz
-0℃~+60℃ 430.375MHz
Frequency stabilization:
±5PPM |
|

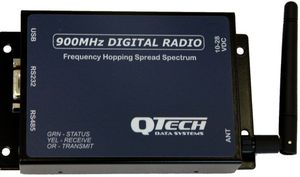

| Wireless interface products provide a cost effective alternative to expensive hard wired connections. The wireless product provides continuous, 24/7 communication using the FCC licenses free 900MHz frequency. Using Frequency Hopping Spread Spectrum (FHSS) technology, a robust signal is provided that is virtually free from disruption due to interference. This technology has been proven in thousands of installations worldwide. |
|
Wireless I/O solutions from Phoenix Contact offer flexible and reliable data transmission for your applications. Monitoring and controlling your processes is reliable with point to point, and multipoint to point industrial radios.
These industrial radios can be incorporated into controlling pump stations, monitoring tank levels and sensors as well as a variety of additional industrial applications. |
|
| ... products without technical information |
| |
PERFORMANCE
Power Output: 500mW@5V(Default), 1W@9V(customized)
RF Line-of-sight Range: 4000m@1200bps, 2000m@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200/38400bps optional Receiver Sensitivity: -124dBm@1200bps, -118 dBm@9600bps
Supply Voltage: +4.75~5.5VDC
Transmit Current: <400mA@500mW, <500mA@1W
Receive Current: <40mA
Sleep Current: <5µA optional ex-factory
Frequency Band: 433MHz(Default)
400MHz~470MHz(customized)
Channel: 8(Default), 16/32 (customized)
Default Interface: COM1:TTL/UART,COM2:Non-Standard RS232 or RS485
Size: 53mm×38mm×10mm
Weight: 34g
Antenna Base: 50Ω
Operating Temperature: Industrial: -35℃~+80℃(TCXO crystal)
Commercial: -20℃~+60℃
Frequency Stability ±2.5ppm Industrial
±10ppm Commercial |
|
25kHz UHF Narrow Band FM Multi Channel Transmitter and Receiver.
The TLC2H transmitter and RLC2H receiver offer a low power, reliable data link in an industry standard pin out and foot print.
This makes the TLC2H/RLC2H pair ideally suited to those low power applications where existing wideband modules have insufficient range, or where low cost multi-channel operation is needed without compromising on RF specification or regulatory requirement.
|
|
Power Output:10~20mW. Single transmitter
RF Line-of-sight Range:≥800m
RF Effective Rate: 1200bps(Default),4800bps(customized)
Supply Voltage: 3.1~5V
Transmit Current: <45mA
Sleep current: <20µA
Frequency Band: 430.675MHz(Default)430~435MHz(customized)
Channel: Single Channel
Bandwidth: 10kHz
Interface: TTL(Default), download/setup
Size: 47mm*26mm*8mm
Antenna: 50Ω, with HAC-TH433 Spring Antenna
Weight: 22g
Operating Temperature:
-20℃~+60℃ 430.675MHz
-0℃~+60℃ 430.375MHz
Frequency stabilization:
±5PPM |
|
| ... products without technical information |
| |
XYR 5000 Wireless Transmitters
Honeywell's award-winning XYR 5000 wireless transmitters deliver value beyond wiring savings, optimizing the plant with data previously unavailable to the control system.
XYR 5000 Absolute
Honeywell WG/A510 wireless transmitters cover a wide pressure range, and can be used to monitor a variety of processes and assets in hazardous and remote areas.
XYR 5000 Acoustic
Honeywell's WN571 acoustic transmitter is used to monitor applications that may generate high frequency noises when they malfunction. It can be configured to detect abnormal asset conditions and contains a built-in temperature sensor.
XYR 5000 Analog Input
Honeywell's WI550 Analog Input Field Transmitter is used to add wireless capabilities to new or existing analog transmitters, such as pressure, temperature, level, flow meters, pH meters or any device that has voltage (0-10 V) or current (4-20 mA) outputs.
XYR 5000 Base Radio
Honeywell's Wireless Base Radio (WBR) combines an RF transceiver and the interface to a SCADA, DCS or data acquisition device.
XYR 5000 Base Radio Antenna
The Wireless Base Radio (WBH) is part of the XYR 5000 family of wireless products. It combines an RF transceiver and the interface to a SCADA, DCS or data acquisition device.
XYR 5000 Differential
Honeywell's WD520 wireless transmitters can be set to operate in four modes: differential pressure, orifice flow, open channel flow and level.
XYR 5000 Dual Discrete
The WW591/592 Dual Discrete Input Field Transmitter is part of the XYR 5000 family of wireless products. It is used to transmit the status of contact switches.
XYR 5000 Gateway
Honeywell's Gateway enables recognition of the XYR transmitters by the Honeywell TDC/TPS system. Setup, receipt and presentation of data collected from the XYR Base Radio is completed with minimal effort.
XYR 5000 Temperature
The WT530 Temperature Transmitter is part of the XYR 5000 family of wireless products. These wireless temperature transmitters can be used to monitor a variety of processes in hazardous and remote areas.
XYR 5000 Wireless Toolkit
Honeywell's Wireless Management Toolkit is the services management software for the wireless product family, including XYR 5000 component management, process monitoring in real time and data acquisition.
|
|
XYR 5000 Wireless Transmitters
Honeywell's award-winning XYR 5000 wireless transmitters deliver value beyond wiring savings, optimizing the plant with data previously unavailable to the control system.
XYR 5000 Absolute
Honeywell WG/A510 wireless transmitters cover a wide pressure range, and can be used to monitor a variety of processes and assets in hazardous and remote areas.
XYR 5000 Acoustic
Honeywell's WN571 acoustic transmitter is used to monitor applications that may generate high frequency noises when they malfunction. It can be configured to detect abnormal asset conditions and contains a built-in temperature sensor.
XYR 5000 Analog Input
Honeywell's WI550 Analog Input Field Transmitter is used to add wireless capabilities to new or existing analog transmitters, such as pressure, temperature, level, flow meters, pH meters or any device that has voltage (0-10 V) or current (4-20 mA) outputs.
XYR 5000 Base Radio
Honeywell's Wireless Base Radio (WBR) combines an RF transceiver and the interface to a SCADA, DCS or data acquisition device.
XYR 5000 Base Radio Antenna
The Wireless Base Radio (WBH) is part of the XYR 5000 family of wireless products. It combines an RF transceiver and the interface to a SCADA, DCS or data acquisition device.
XYR 5000 Differential
Honeywell's WD520 wireless transmitters can be set to operate in four modes: differential pressure, orifice flow, open channel flow and level.
XYR 5000 Dual Discrete
The WW591/592 Dual Discrete Input Field Transmitter is part of the XYR 5000 family of wireless products. It is used to transmit the status of contact switches.
XYR 5000 Gateway
Honeywell's Gateway enables recognition of the XYR transmitters by the Honeywell TDC/TPS system. Setup, receipt and presentation of data collected from the XYR Base Radio is completed with minimal effort.
XYR 5000 Temperature
The WT530 Temperature Transmitter is part of the XYR 5000 family of wireless products. These wireless temperature transmitters can be used to monitor a variety of processes in hazardous and remote areas.
XYR 5000 Wireless Toolkit
Honeywell's Wireless Management Toolkit is the services management software for the wireless product family, including XYR 5000 component management, process monitoring in real time and data acquisition.
|
|
