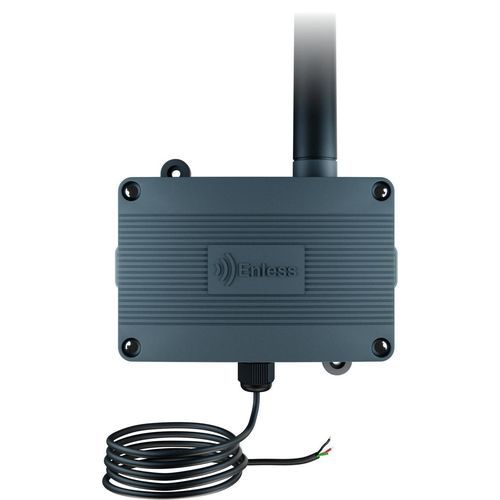

Industrial wireless sensor transmitter TX PULSE 600-036

with indicator lightwith housingLED

Overview
This LoRaWAN pulse sensor is designed for remote meter reading and continuous consumption monitoring. It connects to standard pulse meters (water, electricity, gas) via dry contact or open collector inputs and periodically transmits pulses over LoRa radio, enabling cost‑effective conversion of conventional meters into smart meters.

Key features

• Dry contact and open collector inputs for universal pulse meter compatibility
• Supports LoRaWAN and LoRa Easy (proprietary) communication modes
• Long-range radio performance (typ. >5 km in open terrain using LoRa)
• Replaceable 3.6V Type D lithium battery — long lifetime (up to 15 years depending on settings and environment)
• Robust enclosure rated IP65 / NEMA 4 for outdoor and indoor installations
• Pulse handling: minimum pulse duration 50 ms; maximum frequency 10 Hz; anti-rebound function
• Configurable transmission interval (default: 5 minutes)

Modes of operation

• LoRaWAN mode: Compatible with public and private LoRaWAN networks. Data can be decoded and mapped for integration with building management systems (Modbus, BACnet, etc.).
• LoRa Easy mode: Sends data to an LoRa Easy receiver (available in Modbus, BACnet, HTTP variants) for simplified local integration. LoRa Easy receivers support multiple Enless sensors and provide native decoding to Modbus/BACnet/JSON.

Available models

• EU868 — Part Number: TX PULSE 600-036
• US915 — Part Number: TX PULSE 600-136
• ATEX version available on request for use in explosive atmospheres

Resources (available)

• Product sheets (English & French for TX PULSE 600-036)
• Product sheet (English for TX PULSE 600-136)
• EU Declaration of Conformity
• FCC certificate and related compliance documents
• Installation guide and technical documentation

Technical specifications

• Protocols: LoRaWAN & LoRa Easy
• LoRaWAN versions: EU model v1.0.2 | RP001-1.02 revB; US model v1.0.4 - RP002-1.0.3
• LoRaWAN Class: Class A
• Radio frequency: EU868 (EU model) or US915 (US model)
• Dimensions: W 118 x H 79 x D 43 mm
• Enclosure rating: IP65 / NEMA 4
• Inputs: Dry contact and Open collector
• Pulse duration (min): 50 ms
• Pulse frequency (max): 10 Hz
• Anti-rebound feature
• Transmission interval: 5 min (default) — configurable
• Power supply: 3.6V Type D lithium battery (replaceable). Replacement: BAT D 1000-031
• Battery life: Up to 15 years (depending on configuration and environment)
• Status LEDs: 3 LEDs
• Certifications: EU model — CE, UKCA, LoRaWAN; US model — FCC, ISED, LoRaWAN
• Part numbers: TX PULSE 600-036 (EU868), TX PULSE 600-136 (US915)
