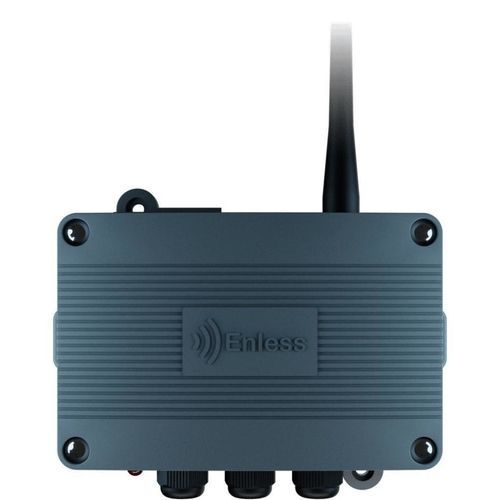

Digital I/O module TX IO 600-040

ModbusBACnetwireless

Presentation
The TX IO 600-040 is a LoRa Easy I/O module designed to add status feedback and relay commands to a BMS (Modbus or BACnet) without additional wiring. It provides 2 dry-contact inputs, 4 relay outputs and three operating modes: remote control, local control and device-to-device (D2D). The receiver sends a radio command. The actuator executes it.

Main features

• Proprietary radio protocol: LoRa Easy (radio communication exclusively with Enless LoRa Easy receiver).
• 2 dry-contact inputs for status feedback.
• 4 relay outputs (48V - 500mA) to drive equipment.
• Three operating modes: Remote control, Local control, Device-to-Device (D2D).
• Radio frequency: EU868.
• 1/4-wave antenna supplied.
• DIN-rail or screw mounting.
• Enclosure protection rating: IP60.
• Power supply: 7.5–24 V DC.
• Certifications: CE, UKCA.

Operating modes

• Remote control: the actuator receives radio commands from a LoRa Easy receiver (connected to a BMS using Modbus or BACnet). The BMS initiates scenarios, the receiver forwards the commands and the actuator executes them.
• Local control: the actuator operates autonomously and uses its input values to drive its relay outputs without requiring dialogue with the BMS.
• Device-to-Device (D2D): the actuator can receive data from up to 4 Enless sensors and drive its relays based on alarm thresholds configured on the transmitters.

Communication
The Enless transmitter/actuator is compatible with the LoRa Easy radio protocol (Enless proprietary). Communication is performed exclusively over LoRa Easy radio with an Enless LoRa Easy receiver (Modbus or BACnet). The product is not compatible with LoRaWAN. A signal repeater can be used if needed to improve radio range.

Applications

• Driving relays from a BMS (Modbus or BACnet).
• Integrating dry-contact inputs for equipment status feedback.
• Local automation based on thresholds (e.g. control driven by Enless sensors in D2D mode).

Characteristics / technical specifications

• Model / Reference: TX IO 600-040
• Supported protocol: LoRa Easy
• Radio frequency: EU868
• Antenna: 1/4-wave antenna supplied
• Dimensions: L 118 x H 79 x D 43 mm
• Mounting: DIN-rail or screw-mounted
• Enclosure IP rating: IP60
• Power supply: 7.5–24 V DC
• Inputs: 2 dry-contact inputs
• Outputs: 4 relay outputs (48V - 500mA)
• Operating modes: Remote control, Local control, D2D
• Configuration: From the receiver (remote control mode) or from the TX IO server (local control and D2D modes)
• Certifications: CE, UKCA
