Pt1000 temperature sensor TX TEMP CONT1 600-032
surface-mountLoRaWANLoRa

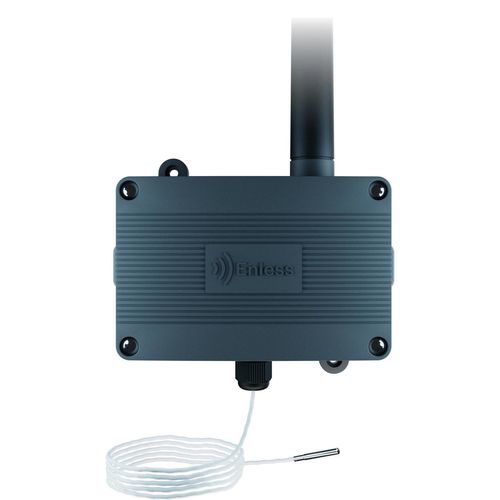

Pt1000 temperature sensor - TX TEMP CONT1 600-032 - Enless Wireless - surface-mount / LoRaWAN / LoRa
Pt1000 temperature sensor - TX TEMP CONT1 600-032 - Enless Wireless - surface-mount / LoRaWAN / LoRa
Pt1000 temperature sensor - TX TEMP CONT1 600-032 - Enless Wireless - surface-mount / LoRaWAN / LoRa - image - 2
Pt1000 temperature sensor - TX TEMP CONT1 600-032 - Enless Wireless - surface-mount / LoRaWAN / LoRa - image - 3
Add to favorites
Compare this product

Characteristics

Technology
Pt1000
Mounting
surface-mount
Output
wireless, LoRaWAN, LoRa
Protection level
IP65, NEMA 4
Applications
for surface temperature measurement, for pipes, for freezers, for refrigerators
Other characteristics
with integrated electronics, radio
Temperature

Min.: -180 °C
(-292 °F)

Max.: 250 °C
(482 °F)

Description

Overview
Measure surface temperature using a PT1000 contact probe. This LoRaWAN temperature sensor with PT1000 probe is designed for surface-contact temperature measurement and supports an extended range (-180 to +250 °C) for applications such as piping (domestic hot water systems), cold storage rooms, refrigerated containers, and other surface-contact use cases. The device supports LoRaWAN and Enless LoRa Easy modes for deployment on private or public networks.

Key features
  • Sensor: PT1000 contact temperature probe
  • Measurement range: -180 to +250 °C
  • Probe length: 2 m (single probe)
  • Designed for surface-contact measurements
  • Radio range: >5 km in open terrain (LoRa)
  • Wireless protocols: LoRaWAN and LoRa Easy
  • LoRaWAN Class: A
  • Power supply: replaceable 3.6 V Type D lithium battery
  • Battery life: up to 15 years (depends on settings and environment)
  • Transmission frequency: default 5 min — configurable
  • Enclosure protection: IP65 / NEMA 4
  • Status indicators: 3 LEDs


Available models
  • EU868 — Part Number: TX TEMP CONT1 600-032
  • US915 — Part Number: TX TEMP CONT1 600-132


Communication & integration
In LoRaWAN mode the sensor transmits data over public or private LoRaWAN networks. Data from Enless sensors is natively decoded and can be mapped to Modbus registers or BACnet objects for integration into a BMS. In LoRa Easy mode the sensor transmits to a LoRa Easy receiver; Enless LoRa Easy receivers are available with Modbus, BACnet or HTTP outputs and can aggregate multiple Enless sensors, decoding and converting data for integration.

Technical specifications
  • Supported protocols: LoRaWAN & LoRa Easy
  • LoRaWAN version: 1.0.2 (EU) / 1.0.4 (US)
  • LoRaWAN class: Class A
  • Radio frequency: EU868 or US915 (model dependent)
  • Dimensions: W 118 x H 79 x D 43 mm
  • IP rating: IP65 (NEMA 4)
  • Sensor: PT1000 contact temperature probe
  • Probe length: 2 m
  • Measurement range: -180 / +250 °C
  • Transmission frequency: 5 min (default) — configurable
  • Power supply: 3.6 V Type D lithium battery — replaceable
  • Battery life: Up to 15 years (depending on settings & environment)
  • Replacement battery: BAT D 1000-031
  • Status LEDs: 3
  • Certifications: CE, UKCA, LoRaWAN (EU model); FCC, ISED, LoRaWAN (US model)
