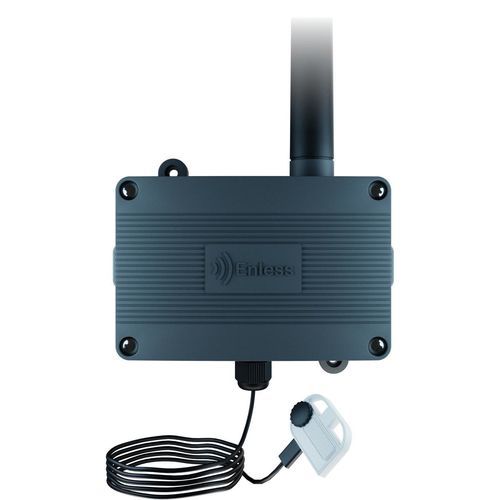

Overview Designed specifically for remote meter reading, this LoRaWAN sensor attaches to the LED display on electricity meters. Each LED flash corresponds to a specific consumption value, allowing the sensor to determine meter consumption by counting LED flashes.

Key features

• Optical sensor that counts LED flashes on electricity meters.
• Counts 5 flashes = 1 pulse; the device periodically transmits pulse count via radio.
• Non-intrusive attachment: optical read head fixed to the meter LED interface using included adhesive strip.
• Supports all visible flash types (except infrared).
• Flash duration supported: 3 ms minimum to 100 ms maximum.
• Transmission frequency: default 5 minutes (configurable).
• Radio performance: LoRa technology for long-range communication (typ. >5 km in open terrain).
• Replaceable 3.6 V Type D lithium battery; very long life (up to 15 years depending on settings and environment).
• Enclosure protection: IP65 / NEMA 4 for field use.

Optical reading The supplied LED optical read head is mounted on the meter LED. It detects and counts visible LED flashes emitted by the meter and converts flashes into pulses (5 flashes = 1 pulse). The sensor stores the counted pulses and periodically transmits them for remote meter reading using a non-intrusive method compatible with common electricity meters.

Battery & power

• Power supply: 3.6 V Type D lithium battery (replaceable).
• Replacement battery reference: BAT D 1000-031.
• Battery life: up to 15 years depending on transmission frequency and environment.

Connectivity & modes

• Supported protocols: LoRaWAN and LoRa Easy.
• LoRaWAN mode: transmits over private or public LoRaWAN networks. Data can be decoded and mapped to Modbus tables or BACnet objects for BMS integration.
• LoRa Easy mode: sends data to LoRa Easy receivers (available in Modbus, BACnet and HTTP versions). A receiver can collect data from multiple sensors and forward as Modbus, BACnet or JSON/HTTP.
• LoRaWAN class: Class A.

Available models EU868 — Part Number: TX PULSE LED 600-038; US915 — Part Number: TX PULSE LED 600-138

Applications / Multiple uses

• Remote meter reading for electricity meters (non-intrusive optical LED reading).
• Integration into building management systems (BMS) via LoRaWAN gateway or LoRa Easy receivers.
• Deployments requiring long battery autonomy and low maintenance.

Specifications

• Supported protocols: LoRaWAN & LoRa Easy.
• LoRaWAN versions: 1.0.2 and 1.0.4 (model-dependent).
• LoRaWAN class: Class A.
• Radio frequency: EU868 or US915 (model-dependent).
• Dimensions: W 118 x H 79 x D 43 mm.
• Enclosure rating: IP65 (NEMA 4).
• Probe: LED optical read head.
• Supported flash types: all visible flashes (except IR).
• Flash duration: 3 ms – 100 ms.
• Transmission frequency: 5 min (default) — configurable.
• Power supply: 3.6 V Type D lithium battery — replaceable.
• Battery life: up to 15 years.
• Replacement battery: BAT D 1000-031.
• Status LEDs: 3 lights.
• Certifications: EU model — CE, UKCA, LoRaWAN; US model — FCC, ISED, LoRaWAN.
