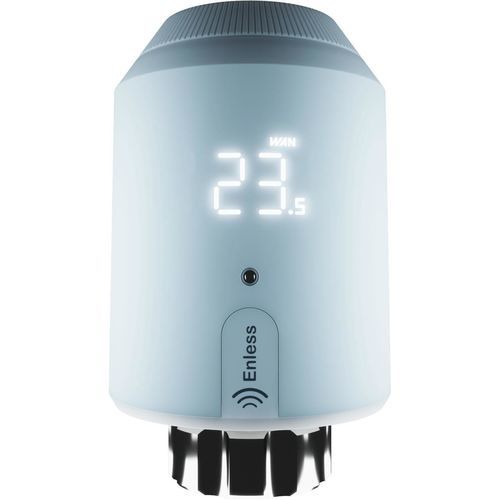

Regulating thermostatic valve TX VALVE 600-060

temperature controlfor waterfor radiator

Overview
The Enless thermostatic radiator valve TX VALVE 600-060 is designed for water radiators and integrates LoRaWAN connectivity (EU868, Class A) to receive remote setpoints and report ambient temperature. Ideal for building management systems (BMS) requiring low-power wireless control and precise local control for occupant comfort and energy savings.

LoRaWAN – Class A
Operates on LoRaWAN Class A with long-range radio performance (over 5 km in open field). Supports downlinks immediately after uplink for efficient remote commands and configuration updates.

Extended battery life
Supplied with 3x AA (Li/FeS2) 1.5 V batteries. Battery life can exceed 5 years depending on control scenarios. Batteries are replaceable without removing the valve from the radiator.

High-precision motor
Stepper motor with micrometric piston positioning for linear and responsive regulation without abrupt temperature swings.

Control modes

• Direct opening percentage: the BMS sends the exact valve opening percentage (the BMS manages regulation logic; the valve executes commands).
• Setpoint mode: the BMS sends a temperature setpoint; the valve uses its internal algorithm to compare ambient temperature and adjusts opening automatically.

Local functions and controls

• Manual adjustment via a rotary selector allowing occupants to fine-tune temperature within defined limits.
• Rotary selector also functions as a push button (calibration, Bluetooth activation, test frame transmission).
• Lock function to prevent unauthorized local changes.
• Periodic anti-seize motor cycling to prevent piston blockage.
• Window-open detection: automatic heating suspension on sudden temperature drop.

Installation & commissioning
Battery compartment accessed by removing the valve sleeve. Simple mounting: fit the valve onto the radiator valve and tighten the clamping ring. Start motor calibration by pressing the temperature selector.

Configuration & updates
Configurable and updatable via the MyEnless app (Bluetooth configuration / OTA updates via app depending on integration scenario).

Mechanics

• Monobloc design without rear plate for increased durability.
• Robust aluminium clamping ring for secure, play-free fixation on radiators.
• Optional polycarbonate anti-vandal shell available as accessory (impact, theft, vandalism protection).

Available adapters (compatible valve bodies)

• RA - M30 x 1.5 (DANFOSS RA ADAPTER)
• RAVL - M30 x 1.5 (DANFOSS RAVL ADAPTER)
• RAV - M30 x 1.5 (DANFOSS RAV ADAPTER)
• M28 x 1.5 → M30 x 1.5 (M28 ADAPTER)
• CALEFFI - M30 x 1.5 (CALEFFI ADAPTER)
• GIACOMINI - M30 x 1.5 (GIACOMINI ADAPTER)

Product resources
Datasheets and declaration of conformity available in PDF (French and English product sheets, EU declaration of conformity).

Technical specifications

• Supported protocols: LoRaWAN
• LoRaWAN version: 1.0.4 - RP002-1.0.3
• LoRaWAN class: Class A
• Radio frequency: EU868
• Dimensions: W 57 x H 90 x D 57 mm
• Enclosure protection rating: IP40
• Default clamping ring: M30 x 1.5
• Accessory adapters: RA, RAV, RAVL, M28x1.5, CALEFFI, GIACOMINI (sold separately)
• Anti-vandal protection: optional protective shell
• Motor control: on downlink reception or manual via temperature selector
• Temperature display: LEDs
• Temperature sensor accuracy: 0.1 °C
• Child lock: Yes
• Transmission periodicity: 15 min (default) - configurable
• Power supply: 3x AA (Li/FeS2) 1.5 V (alkaline usable)
• Battery life: typically 3 years for 60 min control intervals with 6 months/year summer mode; can exceed 5 years depending on usage
• Replacement battery: BAT AA
• Diagnostic LEDs: 3 indicators
• Certifications: CE, UKCA, LoRaWAN
• Model available (EU868): Reference TX VALVE 600-060
