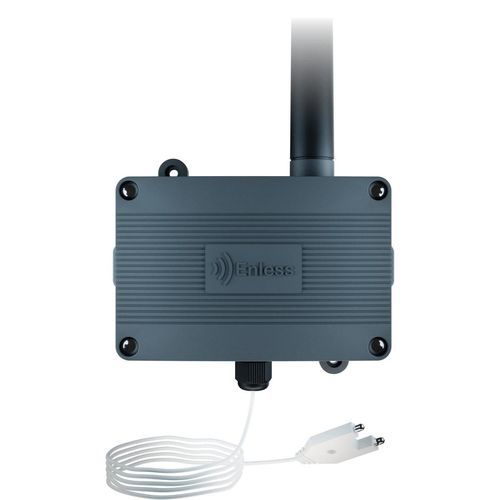

Water leak detector TX CONTACT 600-039

liquidintegrablewireless

Overview
Designed for localized detection, the LoRaWAN leak detection sensor with a nickel-plated brass probe identifies the presence of water at a specific location on your site. Ideal for industrial and commercial environments such as factories, boiler rooms and warehouses, it sends an instant alert as soon as liquid is detected, helping to protect facilities and prevent losses.

Key features

• Spot detection using a nickel-plated brass probe for precise, localized water detection
• Instant alert transmission when liquid is detected
• Suitable for industrial and commercial environments
• Replaceable Type D battery with very long autonomy

Radio performance
Built on LoRa technology, the sensor offers exceptional radio range (over 5 km in open terrain). It supports both public and private LoRaWAN networks and is designed for long-distance wireless transmission in building management systems (BMS).

Battery and autonomy
The product uses a replaceable 3.6V Type D lithium battery. Battery life can reach up to 15 years depending on settings (transmission frequency) and environment; the long-life D-cell reduces maintenance and interventions on site.

Communication modes

• LoRaWAN mode: transmits data over public or private LoRaWAN networks; data from Enless sensors can be decoded and mapped to Modbus tables or BACnet objects for BMS integration
• LoRa Easy mode: sends data to a LoRa Easy receiver (available in Modbus, BACnet and HTTP versions); LoRa Easy receivers can receive data from up to 50 Enless sensors and natively decode/convert it to Modbus/BACnet/JSON

Use cases

• Detection of water leaks at precise locations
• Protection of boiler rooms, machine rooms and warehouses
• Industrial sites and commercial facilities where pinpoint leak detection is required

Available models and certifications

• EU868 — Part Number: TX CONTACT 600-039 + LEAK SPOT (CE, UKCA, LoRaWAN)
• US915 — Part Number: TX CONTACT 600-139 + LEAK SPOT (FCC, ISED, LoRaWAN)

Resources (available for the product)

• French and English product sheets
• Installation Guide
• EU Declaration of Conformity
• FCC certificate

Caractéristiques / spécifications techniques

• Supported protocols: LoRaWAN & LoRa Easy
• LoRaWAN Version: Version 1.0.2 | RP001-1.02 revB (EU); Version 1.0.4 - RP002-1.0.3 (US)
• LoRaWAN Class: Class A
• Radio frequency: EU868 / US915 (models vary by region)
• Dimensions: W 118 x H 79 x D 43 mm
• IP rating: IP65
• Sensor type: "Spot" water detection sensor
• Probe interface: Dry contact
• Cable length: 6 meters
• Transmission frequency: 5 min (default) - configurable
• Power supply: 3.6V Type D lithium battery - replaceable
• Battery life: Up to 15 years
• Replacement battery: BAT D 1000-031
• Status LEDs: 3 lights
• Certifications: CE, UKCA, LoRaWAN (EU model); FCC, ISED, LoRaWAN (US model)
