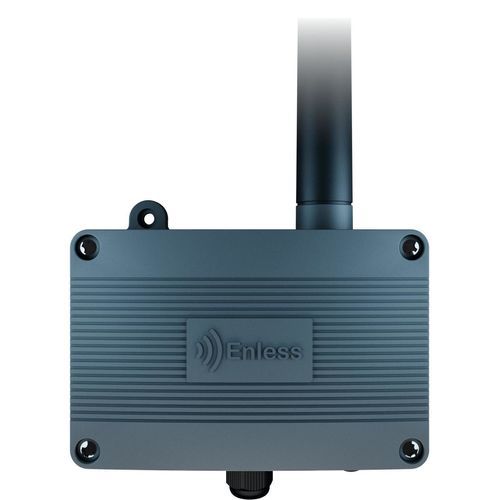

Wireless sensor transmitter with indicator light TX 4/20 600-035

for sensorsLEDhigh-precision

Overview
The 4/20mA LoRaWAN sensor is designed to be connected to a 4/20mA probe. It measures the probe's 4/20mA signal and transmits the measured data over LoRa radio. This enables a variety of applications (for example: pressure measurement, radon monitoring, measurement in extreme temperatures).

Main features

• Connection of a 4/20mA probe via terminal block.
• Measurement of the 4/20mA signal with 12-bit resolution.
• LoRa radio transmission (long range, > 5 km in open field).
• Communication modes: LoRaWAN (public or private network) and LoRa Easy (dedicated communication to LoRa Easy receiver).
• Integration compatibility: native decoding and mapping of data to Modbus registers or BACnet objects for BMS integration; possibility to send JSON to an HTTP server via LoRa Easy receiver.
• Sensor power: replaceable D-type 3.6 V lithium battery (replacement battery supplied).
• Battery life: up to 15 years (depends on transmission settings and environment).
• Diagnostic indicators: 3 LEDs.

Operating modes

• LoRaWAN mode: transmission over a public or private LoRaWAN network. Compatible with LoRaWAN gateways on the market.
• LoRa Easy mode: transmission to LoRa Easy Enless receiver (receivers available in Modbus, BACnet and HTTP versions). LoRa Easy receivers enable reception and conversion of data for straightforward integration.

Available models

• EU868 — Reference: TX 4/20 600-035
• US915 — Reference: TX 4/20 600-135

Available resources

• Product sheet (French) — TX 4/20 600-035
• Product sheet (English) — TX 4/20 600-035
• Product sheet (English) — TX 4/20 600-135
• EU declaration of conformity
• FCC certificate

Characteristics / Technical specifications

• Supported protocols: LoRaWAN & LoRa Easy
• LoRaWAN version: 1.0.2 (RP001-1.02 revB) and 1.0.4 (RP002-1.0.3)
• LoRaWAN class: Class A
• Radio frequencies: EU868 (EU868 model) and US915 (US915 model)
• Dimensions: L 118 x H 79 x P 43 mm
• Enclosure protection rating: IP65 / NEMA 4
• Sensor interface: 4/20mA
• Measurement resolution: 12 bits
• Probe connection: terminal block
• Probe power supply: external power supply recommended
• Transmission period: 5 minutes (default) — configurable
• Internal power: D-type 3.6 V lithium battery — replaceable
• Battery life: up to 15 years (depending on configuration and environment)
• Replacement battery recommended: BAT D 1000-031
• LEDs: 3 diagnostic LEDs
• Certifications (EU868): CE, UKCA, LoRaWAN
• Certifications (US915): FCC, ISED, LoRaWAN
