Pt1000 temperature sensor TX TEMP CONT2 600-232
LoRaWANLoRawireless

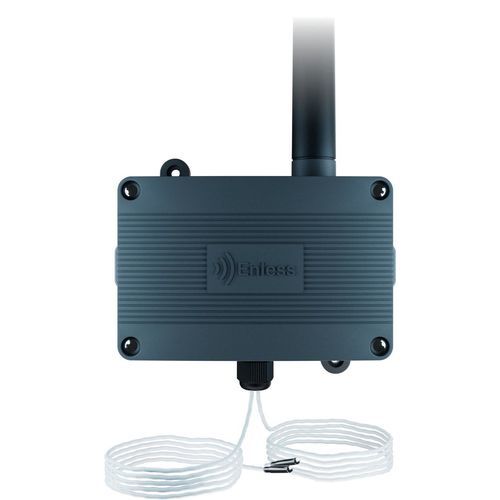

Pt1000 temperature sensor - TX TEMP CONT2 600-232 - Enless Wireless - LoRaWAN / LoRa / wireless
Pt1000 temperature sensor - TX TEMP CONT2 600-232 - Enless Wireless - LoRaWAN / LoRa / wireless
Pt1000 temperature sensor - TX TEMP CONT2 600-232 - Enless Wireless - LoRaWAN / LoRa / wireless - image - 2
Add to favorites
Compare this product

Characteristics

Technology
Pt1000
Output
wireless, LoRaWAN, LoRa
Electrical connection
built-in transmitter
Protection level
IP65, NEMA 4
Applications
for surface temperature measurement
Other characteristics
long-range
Temperature

Min.: -180 °C
(-292 °F)

Max.: 250 °C
(482 °F)

Description

Overview
Designed for contact temperature measurement on surfaces, the TX TEMP CONT2 sensor is equipped with two PT1000 probes for simultaneous remote monitoring of two points. With a wide probe range from -180 to +250°C and an IP65 enclosure, it is suitable for demanding industrial and building applications such as domestic hot water (DHW) monitoring to support Legionella prevention.

Key features
  • Dual PT1000 contact probes for surface temperature measurement
  • Wide measurement range: -180 to +250°C
  • Probe length: 2 m
  • Long-range LoRa wireless communication (over 5 km in open terrain)
  • Compatible with public or private LoRaWAN networks and LoRa Easy mode
  • LoRaWAN Class A operation
  • Replaceable 3.6V Type D lithium battery (D-cell), long lifetime (up to 15 years depending on settings)
  • IP65 enclosure (NEMA 4)
  • Compact dimensions: W 118 x H 79 x D 43 mm
  • Default transmission interval: 5 min (configurable)
  • Status LEDs: 3 indicators
  • Certifications: CE, UKCA, LoRaWAN (EU model); FCC, ISED, LoRaWAN (US model)


Available models
  • EU868 — Part Number: TX TEMP CONT2 600-232 (CE, UKCA, LoRaWAN)
  • US915 — Part Number: TX TEMP CONT2 600-332 (FCC, ISED, LoRaWAN)


Communication and integration
The sensor transmits data over LoRaWAN (public or private networks) or in LoRa Easy mode to LoRa Easy receivers. Data from Enless sensors is natively decoded and can be mapped to Modbus tables or BACnet objects to simplify integration into building management systems (BMS). LoRa Easy receivers are available in Modbus, BACnet and HTTP versions and can collect data from multiple Enless sensors.

Technical specifications
  • Supported protocols: LoRaWAN & LoRa Easy
  • LoRaWAN version: 1.0.2 (RP001-1.02 revB) / 1.0.4 (RP002-1.0.3)
  • LoRaWAN class: Class A
  • Radio frequency: EU868 or US915 (model dependent)
  • Dimensions: W 118 x H 79 x D 43 mm
  • Enclosure rating: IP65 (NEMA 4)
  • Sensors: PT1000 temperature probes
  • Probe length: 2 m
  • Measurement range: -180 to +250°C
  • Transmission interval: 5 min (default) — configurable
  • Power supply: 3.6V Type D lithium battery — replaceable
  • Battery life: Up to 15 years (depending on settings and environment)
  • Replacement battery: BAT D 1000-031
  • Status LEDs: 3 indicators
  • Certifications: CE, UKCA, LoRaWAN (EU model); FCC, ISED, LoRaWAN (US model)
