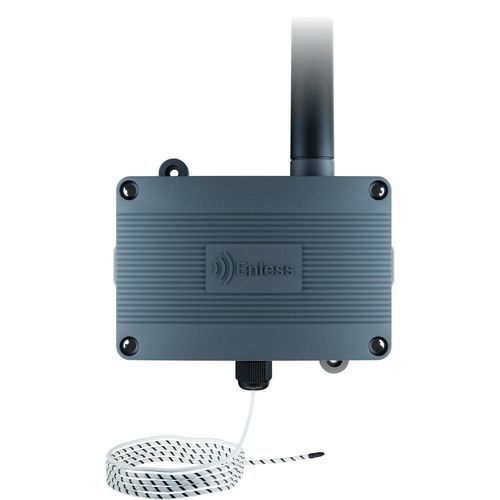

Electronic leak detector TX CONTACT 600-139

waterwirelessModbus

Overview
Detect water leaks on pipes and surfaces and receive instant alerts to prevent damage. The TX CONTACT leak detection sensor is designed for industrial installations (boiler rooms, factories, warehouses) and includes a 2 m leak detection cable for linear coverage along piping and equipment.

Key benefits

• Immediate leak detection with configurable instant alerts.
• 2 m leak detection cable for linear detection along pipe runs and surfaces.
• Suitable for industrial environments: boiler rooms, factories and warehouses.
• Integrates with building management systems (BMS) via LoRaWAN or LoRa Easy receivers (Modbus, BACnet, HTTP/JSON).

Radio & connectivity

• Communication: LoRaWAN (public or private) and LoRa Easy modes.
• Long radio range: over 5 km in open terrain with LoRa technology (site-dependent).
• LoRaWAN: Class A. Supported LoRaWAN versions vary by model/region.
• Data delivery to LoRaWAN gateways or to LoRa Easy receivers with Modbus, BACnet or HTTP/JSON integration to BMS.

Power & autonomy

• Power supply: replaceable 3.6 V Type D (D-cell) lithium battery.
• Battery life: up to 15 years depending on configuration and environment.
• Manufacturer replacement battery reference: BAT D 1000-031.

Use cases

• Linear leak detection along pipe runs and around tanks or equipment.
• Monitoring in boiler rooms, warehouses and industrial plants.
• Integration into BMS for automated alerts and workflow (Modbus tables / BACnet objects available).

Available models

• EU868 version (example part number for EU market).
• US915 version (example part number for US market).

Notes
Default transmission interval: 5 minutes (configurable). Sensor uses a dry-contact probe interface and is housed in an IP65 enclosure suitable for typical industrial installations. Status indicated by 3 LEDs.

Caractéristiques / Spécifications techniques

• Denomination: TX CONTACT (product family)
• Supported Protocols: LoRaWAN & LoRa Easy
• LoRaWAN Version: Version 1.0.2 (RP001-1.02 revB) and Version 1.0.4 (RP002-1.0.3) depending on release/region
• LoRaWAN Class: Class A
• Radio frequency: EU868 or US915 (model dependent)
• Dimensions: W 118 x H 79 x D 43 mm
• IP rating: IP65
• Sensor type: Leak detection cable (2 meters)
• Probe interface: Dry contact
• Cable length: 2 meters
• Transmission frequency: 5 min (default) - configurable
• Power supply: 3.6 V Type D lithium battery - replaceable
• Battery life: Up to 15 years (depending on settings/environment)
• Replacement battery: BAT D 1000-031 (manufacturer reference)
• Status LEDs: 3 lights
• Certifications: CE, UKCA, LoRaWAN (EU models); FCC, ISED, LoRaWAN (US models)
