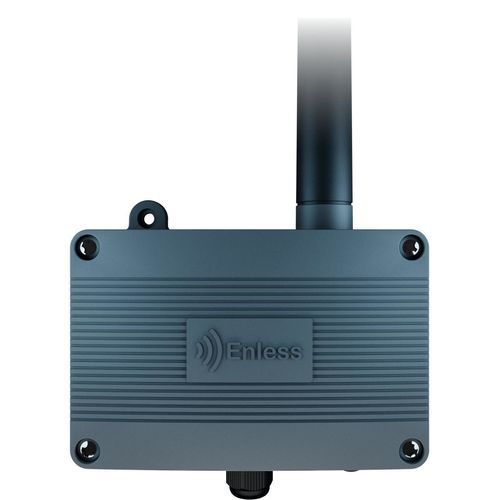

Pt100 temperature sensor TX TEMP INS 600-031

LoRaWANLoRabuilt-in transmitter

Presentation
The hardened LoRaWAN temperature sensor is designed for monitoring industrial sites and exposed outdoor environments. Its IP65 / NEMA 4 enclosure enables installation in demanding conditions while providing reliable temperature reporting over long-range LoRa radio links.

Key features

• IP65 / NEMA 4 enclosure for harsh environments
• Long-range LoRa communication (typ. >5 km line of sight depending on conditions)
• Replaceable D-size lithium battery 3.6 V with optimized autonomy (up to 15 years depending on configuration)
• Wide measurement range −40 to +125 °C with ±0.2 °C accuracy and 0.1 °C resolution
• Default transmission period 5 minutes (configurable)
• Diagnostic LEDs for basic on-site status checks

Operating modes

• LoRaWAN mode: transmission over public or private LoRaWAN networks. Data decoded and mapped for BMS integration (Modbus, BACnet, JSON, ...)
• LoRa Easy mode: transmission to a LoRa Easy Enless receiver for native conversion to Modbus, BACnet or JSON (simple, cost-effective option for Enless deployments)

Applications & use cases

• Technical room monitoring
• Industrial environments (workshops, machine rooms)
• Exposed façades and outdoor installations
• Ambient control and building management system (BMS) monitoring

Integration
Compatible with standard LoRaWAN gateways and LoRa Easy Enless receivers. Data is available natively via Modbus, BACnet or JSON depending on the chosen architecture.

Technical specifications

• Product type: hardened LoRaWAN temperature sensor
• Measurement: temperature
• Measurement range: -40 / +125 °C
• Sensor accuracy: ±0.2 °C
• Sensor resolution: 0.1 °C
• Transmission period: 5 minutes default (configurable)
• Radio protocols: LoRaWAN (Class A); LoRa Easy mode
• Frequencies available: EU868 and US915 (different models)
• LoRaWAN version: 1.0.2 (RP001) / 1.0.4 (RP002 depending on variant)
• Power: replaceable D-size lithium battery 3.6 V
• Battery life: up to 15 years (depends on settings and deployment conditions)
• Recommended replacement battery: BAT D 1000-031
• Diagnostic LEDs: 3 LEDs
• Ingress protection: IP65 / NEMA 4
• Dimensions: L 118 x H 79 x D 43 mm
• Certifications: CE, UKCA, LoRaWAN; FCC / ISED variants available
• Available references: model 600-031 (EU868) and model 600-131 (US915)
