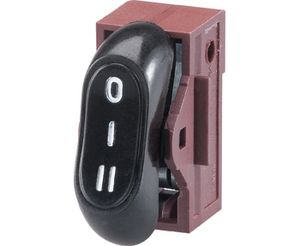

APEM power rocker switches with a state-of-the-art look based on curved shapes.
Among the advantages of the KR series:
- An infinite number of symbols available for all rocker colours within a short time
- A behind-panel depth lower than equivalent models in the market
- Optional IP68 panel sealing
- 10-terminal versions allowing independent LED circuit or additional integrated functions
To simplify and optimize assembly when several switches are involved, APEM offers panel mounting units and connectors.
Main applications: control panels for buses, boats, agricultural machines and construction vehicles ; Can be associated with other APEM products, such as industrial joysticks.
APEM, the broadest offering in the switch market: miniature switches, industrial switches, LED indicators, professional switch panels and professional joysticks.
|
|

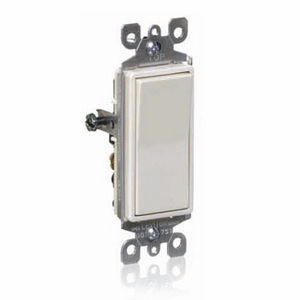

• Ratings up to 20A, 277 V ac
• High in-rush versions
• Single and double pole
• Illuminated and non-illuminated rockers
• Front and sub panel mounting
• Wide range of sizes and styles
• Wide choice of circuits
• Wide choice of terminals and actuators
• Matching indicators
• RoHS compliant
|
|
Baer rocker switch
Characteristics • single pole
• on/ off
• illuminated/ non- illuminated
• snap-in mounting
• customised mounting
• quick connect
• optional with momentary function
• temp. 85/ 55°
Rating 250 VAC, 6 (2) A
125 VAC, 7.5 A
Dimensions (mm) various
Actuator • rockers in different shapes/ colours
Approvals ENEC, UL, CSA
|
|
Baer Auto shutt off rocker switch TIPPMATIC
Characteristics • single pole
• on/ off
• additional timer function
• illuminated/ non-illuminated
• snap-in mounting
• temp. 100/ 55°
Rating 250 VAC, 10 (2) A
125 VAC, 15 A
Dimensions (mm) 37.2 x 17 x 38
Actuator • standard rocker
25.4 x 10.7 mm
Approvals ENEC, cUL
|
|

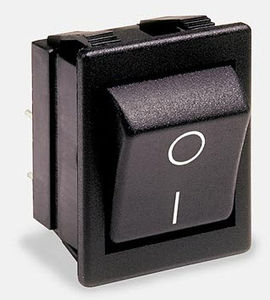

• Ratings up to 20A, 277 V ac
• High in-rush versions
• Single and double pole
• Illuminated and non-illuminated rockers
• Front and sub panel mounting
• Wide range of sizes and styles
• Wide choice of circuits
• Wide choice of terminals and actuators
• Matching indicators
• RoHS compliant
|
|
RR SERIES ROUND ROCKER SWITCH
- Single-pole and double-pole configurations
- Lighted and non-lighted options
- Available in a wide variety of colors
- High current switching in a compact round package
- Self-locking tabs to fit industry-standard panel cut-outs
|
|
|
|
|
|
Full Size Euro-Look Rocker Switches
Eaton's 8004 and 8005 Euro-Look Series features matte finish European styling and snap-in mounting. These durable switches, field-tested in the most demanding truck and marine applications, are available with a variety of standard actuator options. Options include concave, two-face, illuminated, non-illuminated, and the recessed feature which allows placement of your label on the face of our rocker.
All switches in this rugged lineup can be fitted with a silicone rubber seal to provide moisture and dust resistance.
Additionally, these switches can be gang-mounted into a single panel opening. Panel blanks are also available.
SPECIFICATIONS
Ratings:
15A @ 125V ac.
10A @ 250V ac.
3/4 HP @ 250V ac.
(Hp rating does not apply to lighted switches).
CUR marked.
Recommended up to
15A@28V dc.
Circuits:
1PST, 1PDT, 2PST, and 2PDT.
Maintained and momentary action.
Contact Mechanism:
Slow-make/Slow-break contact mechanism.
Butt action contact mechanism designed specifically for use on and low voltage applications.
|
|
|
|
|
|
Eaton presents its New Generation Rocker (NGR) Series. This fieldproven line of full sized rocker switches, initially developed for the Heavy Truck Industry is now found in a variety of vehicle related applications. The NGR offers both European styling and ergonomic design while still providing the solid durability that you have come to expect from Eaton switches.
Illuminated and non-illuminated versions with either incandescent bulbs or LED's are available in either dependent or independent circuits and in a variety of popular switching circuits. The NGR also offers a variety of rocker buttons and indicators with laser-etched or pad printed icons, insertable lenses and adhesive-backed labels.
Ratings:
15A @ 125V ac, 10A@250V ac.
15A @ 28V dc (14V dc rating).
Approvable under stringent UL and CSA standards.
For information, contact your Eaton Sales Representative.
Circuits:
1PST, 1PDT, 2PST, and 2PDT.
Maintained and momentary action.
Contact Mechanism:
Slow-make/Slow-break contact mechanism.
Butt action contact mechanism designed specifically for use on ac and low voltage dc applications.
|
|
|
|
|
|
Field-proven in America's roughest off-road applications, the standard size EURO/SR is one tough and reliable rocker switch. Available with the complete range of rugged one and two-pole, illuminated or non-illuminated circuits. The EURO/SR Series offers snap-in mounting and can be provided with a durable silicone seal which resists dust and moisture.
All EURO/SR switches are molded in an aesthetically pleasing matte finish and operate with a crisp tactile feel allowing for easy actuation. The EURO/SR will accept loads up to 15A.
Terminal numbers are stamped on base for easy identification.
Ratings:
15A @ 125V ac.
10A @ 250V ac.
3/4 Hp @ 250V ac.
(Hp rating does not apply to lighted switches.)
CUR marked.
Recommended up to 15A
@28V dc.
Circuits:
1PST, 1PDT, 2PST, and 2PDT.
Maintained and momentary action.
Contact Mechanism:
Slow-make/Slow-break contact mechanism.
Butt action contact mechanism designed specifically for use
on ac and low voltage dc applications.
Mechanical Life:
Maintained - 100,000 operations, minimum.
Momentary - 25,000 operations, minimum.
|
|
|
|
|
|
ESPORT Full Size Rocker Switches
The ergonomically-designed ESPORT Series comes with a large independent LED-illuminated indicator window which clearly identifies the switch’s labeled function - your label or ours. The switch can be ordered with an LED illuminated actuator, as well. All ESPORT switches are molded in a clean matte finish and operate with a definite tactile feel. Actuation of the switch feels crisp. Also, ESPORT switches will accept loads up to 15A. Due to the LED's long life, lamp replacement should not be necessary.
Tested in America’s toughest truck applications, the ESPORT switch is reliable, durable and is available with a full range of rugged one-and two-pole circuits.
It has an optional polarized lock-on connector. Spade switch terminals are tin-plated for long storage life.
Ratings:
15A @ 125V ac.
10A @ 250V ac.
3/4 Hp @ 250V ac.
CUR marked.
Recommended up to
15A@28V dc.
Circuits:
1PST, 1PDT, 2PST, and 2PDT.
Maintained and momentary action.
Contact Mechanism:
Slow-make/Slow-break contact mechanism.
Butt action contact mechanism designed specifically for use on ac and low voltage dc applications.
Contact Material:
Movable - Silver plated copper with silver contact face button.
Stationary - Copper with silver contact face button.
|
|

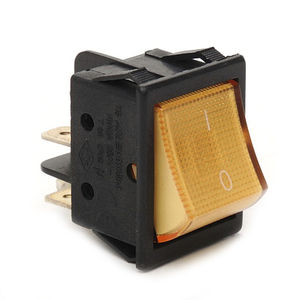

Features/Benefits
* Illuminated versions available
* Positive detent
* Snap-in mounting
Typical Applications
* Floor care products
* Power outlet strips
* HVAC units
* RoHS compliant
|
|
Molveno and Signal Lux design and manufacture electrical switches for household appliances and electrical products. The product range is highly diversified, encompassing everything from rocker, rotary, push-button and slide-switches to connectors and illuminated indicators.
Moreover the choice of sizes, ratings, finishes and accessories is unequalled.
Everel switches are found on everything from large and small appliances to HVAC products, toys, power tools, electronic devices, pumps and motors. Wherever they are used, Everel switches deliver unrivalled quality and reliability.
|
|
A (submini)
Washable Subminiature Rocker Switches CWS (miniature)
Snap-in Power Rocker Switches
CWT (miniature)
Thin Rocker Switches G (ultra-mini)
Washable Ultra-Miniature Rocker Switches
GW (ultra-mini)
Ultra-Miniature Rocker Switches JWL (standard)
High In-rush Rated Rocker Switches
JWM (standard)
High In-rush Rated Rocker Switches JWS (miniature)
Internationally Approved Rockers
M (miniature)
Miniature Rocker Switches M2100 (miniature)
Toggle, Rocker and Paddle Switches
M2T (miniature)
Washable Miniature Rocker Switches MLW (miniature)
Snap-in Rocker and Paddle Switches
P (standard)
Internationally Approved Rocker Switches SW AC/DC (std/hi cap)
Hi Capacity Rocker Switches
SW Hi Cap (std/hi cap)
Hi Capacity Rocker Switches SW Med (standard)
Standard Size Rocker Switches
WR (standard)
Environmentally Sealed Rocker Switches
|
|
|
|
|
|
Features:
* Withstands direct water spray.
* Submersible. Designed to meet IP68.
* Fits industry standard panel openings for drop-in replacement of panel sealed and unsealed switches.
* Snap-in feature accommodates a wide range of panel cut-outs.
* Switches up to 16 amps.
* UV and Solvent resistant.
* Withstands extreme shock & vibration.
* Custom legends available.
* 2- & 3-position, momentary and maintained action.
* Incandescent, LED and neon illumination with independent and dependent light source options.
* UL and CSA recognized.
The K series rockers are rugged, high performance sealed switches designed for use under severe conditions found in marine, appliance, heavy equipment and industrial control applications. They are totally sealed so the switch can withstand direct water spray and submersion, even during operation. They are designed to meet the international submersion specification level IP68. An optional panel seal is also available.
The K1 series is offered in single pole configuration while the K2 series is available in single and double pole configurations. Both series offer illuminated models. Illumination can be independent or dependent of the switch position or a combination of both. A choice of red, green, clear or amber colored lens are offered in illuminated models. Illumination options include incandescent, LED or neon light sources.
Mounting is simple and quick; snaps into panel from the front. The OTTO snap-in design supports a variety of panel thicknesses with just one cut-out size specified; other manufacturers require trial-and-error cut-out sizing.
|
|

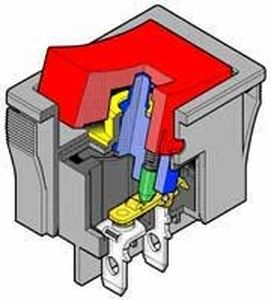

Illuminated Power Rocker Switches
General description:
Full face illumination in choice of red, green, and amber.
9-amp electrical capacity in compact body.
Neon model has built-in resistor for direct connection to AC power source.
Low cost molded rocker.
Front panel, snap-in mounting assures labor-saving installation.
Single-break snap-acting contact mechanism gives smooth actuation and audible feedback. Quick-make, quick-break characteristic limits arcing and prolongs electrical life.
Stable stationary contact construction for high reliability.
Offset terminal alignment gives outstanding insulation resistance and dielectric strength.
Solder lug/.187" quick connect terminals can be used with connectors.
|
|
