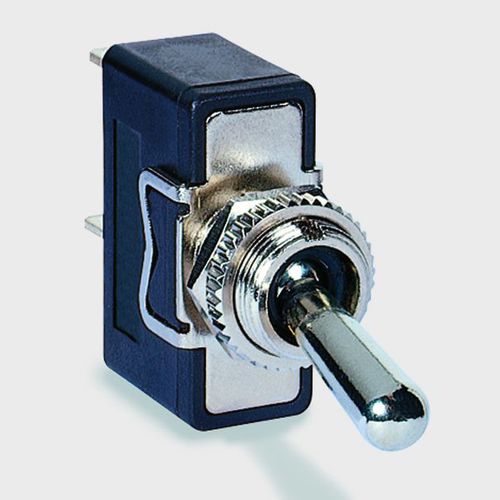

Toggle switch 9300 , 1700 , 1750 series
leverSPDT2-pole

toggle switch
toggle switch
toggle switch
toggle switch
toggle switch
toggle switch
toggle switch
Add to favorites
Compare this product

Characteristics

Type
toggle, lever
Number of poles
SPDT, 2-pole
Other characteristics
industrial, sealed, nylon, metal, momentary, PCB, actuator
Protection level
waterproof, heavy-duty, IP67
Current

20 A

Voltage

250 V, 277 V

Description

At Bulgin, we offer a wide variety of nylon and metal heavy-duty toggle switches which are designed to fulfil the needs of today's automotive, marine and industrial applications. Our momentary toggle switch range (previously Arcolectric) offers a large choice of actuator and circuit options including: Single Pole Single Throw (SPST), Single Pole Double Throw (SPDT), Double Pole Single Throw (DPST) and Double Pole Double Throw (DPDT). Carrying UL, CSA, & ENEC certification, we also offer waterproof variants that are sealed to IP67 standards, allowing for use in outdoor or harsh environment applications that are exposed to elements such as dust, water and dirt. Well known for their quality and reliability, Bulgin’s toggle switches are cost effective solutions to many existing applications. These switches offer features at an attractive price point often well below that of the existing competition. Nylon and Metal switch variants Multiple Lever Options Ratings up to 20A, 250V ac - 277V ac IP67 panel seal versions, supplied complete with gaskets (3900 Series – All Variants) Single and double pole Choice of circuit options including 3 position and momentary Mounting hole: 12.7mm diameter. Sealing accessories available Quick Connect, Solde
