Glass components include: Viewports (glass, pyrex, quartz), Add-a-doors, and Glass tube adapters
Accessories include: Up-to-air valves, Vacuum grease, Anti-seize compound, Protective flange caps, Wrenches
Viewports provide a simple method of adding an observation window to coating systems and other applications where a view of the internal chamber is required. A&N viewports are available in a variety of window materials (glass, pyrex, and fused quartz) and flange styles. Therefore, you will find an option for vacuum chambers operating high and ultra-high levels of vacuum.
Fixed viewports come in a variety of flange styles and window materials. The window is sealed with a transition material is known as KOVAR®. The ultimate pressure rating of these viewports is determined by the flange style. Note: Fixed viewports are not designed to withstand positive pressures.
Weldable viewports come in a variety of flange styles and window materials.
|
|
|
in 2- and 3 way version, DN 15-150, Flanges DIN/ISO drilled to PN16- and ANSI Cl 150, up to 180°C (360°F)
|
|
Description:

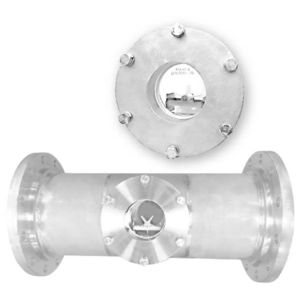

SIGHT GLASSES are instruments used to monitor the phases of the productive process in the chemical, pharmaceutical and alimentary industries.
|
|
Nor-Cal's load lock chambers are provided with a six inch CF flange for mounting to the gate valve, a six inch Add-A-Door with 7056 glass viewport, a 2.75 inch CF flange for attachment of the linear feedthrough, and two 2.75 inch CF flanges for pumping. Standard finish is electropolished. Custom sizes can be supplied upon request.
SPECIFICATIONS:
- Construction:
Flanges: 304 stainless steel
Body: 304 stainless steel
Viewport: 7056 glass
O-ring: Viton
- Temperature range -20°C to 200°C
- Vacuum range >= 10^-8 Torr - High vacuum
|
|
The MLI sight glass is mainly used to indicate the condition of the refrigerant as well as the liquid level in the receiver or the oil level in the compressor.
MLI is equipped with a sensitive indicator that reflects a colour, depending on the moisture content in the refrigerant.
|
|

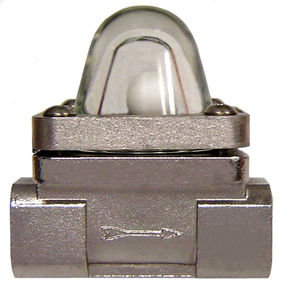

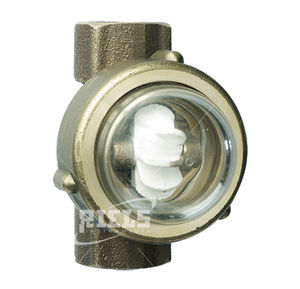

For visually monitoring the flow of fluids from the outside of the piping.
Operating Pressure Range: 0 - 13 barg
Operating Temperature Range: 0 - 200 °C
Benefits and Features
Easy to Use
Ball movement indicates flow status, which gives superior visibility.
Use of PTFE (fluorine resin) gasket results in superior maintainability.
Application Areas
Visual inspection of various types of equipment.
Operational Check of Steam Traps
Inspect the operating status of equipment by checking the flow of water, hot water, air, steam, etc.
|
|
| ... products without technical information |
| |
Mica has a high dielectric strength and excellent chemical stability, making it a favored material for manufacturing capacitors for radio frequency applications. It has also been used as an insulator in high voltage electrical equipment. It is also birefringent and is commonly used to make quarter and half wave plates.
We use transparent natural mica, which has been important in the electrical/electronic industry in such applications as electron tubes,sight windows, capacitors, generators, and insulating spacers for semiconductors.
Mica is very stable at high temperatures, and possesses some attractive electrical properties. It is flexible, chemically inert, and has good mechanical strength perpendicular to the lamina.
We provide mica parts fabricated to your specifications and drawings.
|
|
Necessity of protection from Electromagnetic Interference exists in correspondence of cabinet openings though which there is the need to look at monitors equipment or bright indicators or measure display instruments or other.
Such "windows" as LCDs, LEDs or CRTs, can be shielded with the our SHIELDING WINDOWS.
Civil, hospital, military, security, automotive or industrial use, also with bulletproof performance (see below).
Available for indoor or external building/automotive applications, custom made, prototype, little series, short delivery time and cheaper prices.
|
|
|
VUSSIL is a window which ensures 2 functions : transparency and electromagnetic protection. Its applications are varied : Faraday cages, video monitors, computer screens, racks, indicator…
|
|
|
|
|
|
Electronic equipment with various types of indicative performance or viewing devices, such as digital read-outs or displays, may require protection from radiated electrical energy (EMI/RFI). Typical applications include EMI/RFI shielding for electronic displays and enclosures used in medical, avionic, telecommunication, military and industrial equipment.
These unique windows are designed to enhance clarity in viewing while, at the same time, introduce a high degree of shielding to prevent equipment damage due to impinging radiated electrical energy. Transmittance, conductivity, and image quality can be adjusted or tuned to fit the needs of specific applications.
Metex offers a wide range of custom-shielded optical windows for displays requiring EMI radiation or susceptibility shielding to meet military, TEMPEST or NSA specifications. Our Shielded Windows have been designed into commercial and military equipment to provide highly effective electromagnetic shielding while providing exceptional optical clarity and resolution.
|
|
