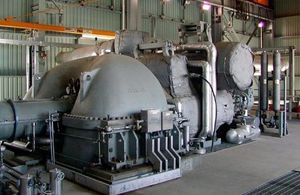

Steam Turbines
For nearly a century, Elliott steam turbines have earned a reputation as the most rugged, reliable and versatile drivers in the industry. Combining engineering expertise, rugged designs and precision manufacturing, Elliott steam turbines are built to perform and endure years of continuous service. These powerful workhorses provide exceptional value and performance in a broad range of processing, mechanical and power generation applications, around the clock and around the globe, in environments of every extreme.
Elliott steam turbines come in a variety of sizes ranging from small, 20 hp (15 kW) single-stage units, to large 135,000 hp (100,000 kW) multi-valve multi-stage extraction condensing units. These units can be built to API standards and can be customized to meet exacting customer specifications or other industry standards. With a large selection of both standard and engineered steam turbines and turbine generator sets, Elliott steam turbines boost production in industries as diverse as oil and gas, chemical and petrochemical, pulp and paper, power generation and food processing.
|
|
Dresser-Rand RLH, RLHA and SST Models manuafactured at our Wellesville, New York plant can be found in virtually every industry around the world utilizing steam for process. Rugged, API compliant mecahnical drives for fans, pumps, compressors and generators.
FEATURES INCLUDE:
- Horizontal and Axial Split casings
- API 611 compliant
- ATEX Compliant (RLA/RLHA models only)
- Up to 2600 kWe (3500 HP).
- Inlet pressures to 62 BARG (900 PSIG)
- Inlet temperatures to 510 degrees C (950 degrees F).
|
|
Model C, Single-Stage Overhung Wheel design manufactured in Bielefeld, Germany plant. Capable of high inlet steam pressures and high inlet temperatures.
FEATURES INCLUDE:
+ Inlet steam pressures up to 109 BARG (1581 psig)
+ Temperatures up to 510 degrees C (950 degrees F).
+ Available with integrated reduction gear.
+ Forced feed oil system with integrated oil reservoir.
+ Typical applications include generator, pumps, fans, compressor drives.
|
|
|
|
|
|

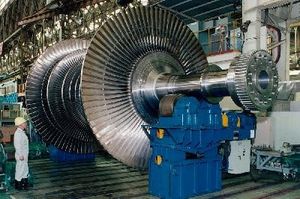

The blade tips of a turbine rotate some 3,000 times a minute and are thus faster than the speed of sound. The blades under extremely high steam temperatures (approx. 620 °C) and pressures (up to 250 bar) are subjected to extreme loads and stresses. Even so, it is expected of steam turbines that they are reliable and perform their work round the clock.
Hitachi, Ltd. has been supplying these kinds of highly efficient and reliable steam turbines for over 75 years now. Hitachi Power Europe's parent company has on offer turbines in the 250 to 1,380 megawatt (MW) rating class. Constant research and refinements ensure that these components belong to the best of their kind across the world.
The components (turbine and generator) are manufactured in the Hitachi works to the NE of Tokyo in Japan. Hitachi engineering teams not only carry out strict quality checks to ensure maximum performance and quality, but also provide ongoing and extensive support for their customers and service/upgrade the turbines.
|
|
The sturdy design of these machines ensures a long life and optimum service intervals. The steam turbines are available in various models and sizes: Condensing turbine, Back pressure turbine, Extraction turbine and the highly standardized MARC series (Modular ARrangement Concept).
|
|
A comprehensive range of turbines for all applications, from industrial power generation up to the largest power plants in the world
Alstom's turbine range includes advanced gas, steam and hydro turbines for power generation, mechanical drives and propulsion systems. Our global capabilities also include service, maintenance, refurbishment and upgrading of turbine plants and training of personnel.
-gas turbines from 56 MW up to 288 MW for turnkey power plants including simple cycle, combined cycle, repowering and retrofit
-steam turbines from 100 MW up to 1200 MW for fossil steam turbines and up to 1800MW for nuclear steam turbines
-steam turbine retrofits
-hydro turbines for all types of hydropower plants; high or low head, storage and run-of-the-river
-hydraulic and pump turbines up to 900 MW
|
|
| ... products without technical information |
| |
... see all the products in the category
Turbines
|
|
|
|
|
Superior Turbine Tripping Reliability
The Elliott Pos-E-Stop 203 Trip Block is a technological leap forward in the control of trip valves for steam turbines, hot gas expanders and similar power applications in emergency situations such as overspeed, high vibration or process upset. The Pos-E-Stop Trip Block's flexible "two-out-of-three" logic provides a significantly higher degree of tripping reliability than single or paired solenoid designs, and its best in class response time reduces the tripping interval for enhanced safety. And, the Pos-E-Stop Trip Block has the ability to interface with the master plant control or EDS system.
Features and Benefits
- Improved trip system reliability
- Best in class response time with reduced tripping interval
- Increased availability
- On-line test capability without defeating trip protection
- On-line replacement of critical components without defeating trip protection
- Continuous on-line monitoring of solenoids and valve positions
- Elimination of isolation valves reduces risk of operator error
- Enables trip system standardization across the plant
- Easy to install; simplifies most piping layouts
- Meets hazardous area classifications
- Meets applicable CE directives
|
|
Turbine-Generators - Intelligent Alternative for Power Generation
An Elliott turbine generator set gives its customers with steam systems an intelligent alternative for reliably, efficiently and cost effectively meeting their electrical power needs with on-site generation. Elliott’s steam turbine generator sets match a wide range of customer applications and power requirements. Elliott can provide complete, custom-engineered packages for continuous or stand-by power resulting in an extremely reliable, highly efficient energy solution ranging from 50 kW to 30 MW.
|
|
Dresser-Rand offers a large model selection of Steam Turbine Generator sets from 500kWe to 100 MW for on-site combined cycle cogeneration and simple cycle power production applications.
D-R installations include Oil and Gas, paper, ethanol, ORC, universities, waste-to-energy, food process, sugar, steel, marine, biomass, and other industries utilizing steam for process or energy production.
Design options include:
- Condensing or non-condensing
- Controlled or automatic extraction
- Mixed steam inlet
- Integrated reduction gear
- Electronic control options
|
|
|
|
