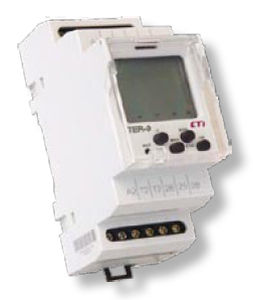

TER-3A:NTC thermostat -30..+10 °C
* single thermostat for temperature monitoring and regulation in range -30.. +70 °C in six ranges
* can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors, devices, open spaces, etc.
* function of short-circuit or sensor disconnection monitoring
* possibility to set function “heating”/”cooling” ( setting is done by DIP switch)
* adjustable hysteresis (sensitivity) , switching by potentiometer in range 0.5 -5 K
* choice of external thermo sensors with double insulation in standard lengths 3, 6 and 12 m (see accessories pg. 87)
* it is possible to place sensor directly on terminal block – for temperature monitoring in a switchboard or in its surroundings
* multivoltage supply AC/DC 24 -240 V, not galvanically separated
* output contact 1x NO 16 A /250 V AC1
* red LED indicated status of output, green LED indicates energization of the device
* 1-MODULE, DIN rail mounting
|
|
|
|
|
|
Example:
JUMO eTRON T Digital thermostat with LC display for mounting on a 35mm DIN rail (70.1050)
Heating or cooling is configurable
Limit monitoring
Available for resistance thermometer, thermocouple, standard current or voltage signals, according to choice
10A relay (changeover contact)
Adjustable switching hysteresis
Simple, space-saving installation
Time-delayed switch-on after power-on is selectable, e.g. for staggered starting of several equipment units
3-digit LC display with special characters for °C and °F
Parameter level protected by code
Setup program for configuration and archiving via PC
Customized linearization via tabular function in the setup program
UL approval
The JUMO eTRON T is a compact digital thermostat in 90mm x 22.5mm format for simple temperature control (heating or cooling). The measurement input permits the connection of resistance thermometers or thermocouples, or standard current or voltage signals. The measured value is shown on a 3-digit LC display.
The switching status of the relay K1 is indicated by an LED.
The instrument is operated from 3 keys on the front panel. The electrical connection is made via screw terminals.
A setup program and a PC interface are available as accessories, for easy configuration and parameterization from a PC.
|
|
|
|
|
|
LAUDA Proline - Heating and cooling thermostats at temperatures from -90 up to 300 °C for professional use in research, application engineering and production.
LAUDA Proline thermostats are the technical superlative for high-performance, reliable thermostating tasks. With an extreme temperature range of -90 to 300 °C, they fulfil the most demanding requirements for tough use in industrial materials testing, research, technology and quality control. With their excellent functionality and high level of user-friendliness, the Proline thermostats set the technological standard at international level.
The choice is yours: Master or Command
With the LAUDA Proline range, you can choose the degree of user-friendliness you need. Both versions offer the complete scope and all safety functions. Whereas the Master version does not go for the comprehensive programming comfort, the Command version offers state-of-the-art display and operation technology. The utlimate highlight: the most modern LiBus technology allows you to up-grade from the Master version to the Command version easily, at any time. Both controllers can be easily programmed from the PC by means of the LAUDA
Wintherm Plus software.
LAUDA Proline Master: For professional standard applications
The Proline Master devices are designed for all applications from -90 up to 300 °C with high thermostating accuracy and reliability whose parameters are not modified so frequently. They have all the basic and safety functions required for professional thermostating during continuous use. A modular structure and bus technology enable the individual extension of the rangeof functions and performance.
|
|
Thermostats, automatic controller etc.
Taxes/rules/supervising
With a temperature and a humidity control system you create climate conditions, which make a perfect function possible of your components.
Thermostats and Hygrostate steer and regulate
* Heaters,
* Filter exhaust,
* Heat exchanger or
* Coolers,
if fixed temperature levels or dampness levels to be over and/or fallen below. For the protection of smooth operational sequence fans can be supervised by filter exhausts additionally. An air flow guard recognizes and signals, if an exhaust failed blocked or.
|
|

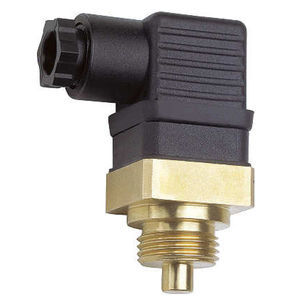

On/off type signal, temperature range 35-110°C. Can pilot currents up to 10A
MOD 507 Bimetallic thermostats Sensore di temperatura - Termostato bimetallico MOD.507
Capacity contact: 5 (1) A / 250 Vac
Temperatures intervention: 35 / 80° C
Electrical connection: DIN connector 43650
Output signal: SPDT
|
|
Honeywell Sensing and Control offers a range of commercial and precision thermostat products.
Precision thermostats include both hermetic and non-hermetic devices for use in a wide array of applications including computers, copy machines, aircraft, radar equipment, medical equipment and electronic control systems. Honeywell offers custom-packaged thermostats designed to operate in extreme environmental conditions.
Commercial thermostats include products for use in a wide array of small and major appliances, automotive applications, office copy machines, heat and smoke detectors and HVAC (Heating, Ventilation, Air Conditioning) equipment. These snap-action thermostats include automatic or manual reset options, phenolic or ceramic housings and a variety of mounting brackets and terminals.
|
|
The Vigitherme M23 is a very thin model : 6,5 mm.
The two picot edges allow a direct mounting on a printing circuit with a pitch of 7,62 mm
TECHNICAL CHARACTERISTICS
- Range of temperature : - 40° to+ 180°C
- Current rating : 5 A
- Voltage rating : 250 V
- Type of contact : opening or closing
- Nature of contacts : massive silver
- Voltage proof between terminations and ground : 2000 V
- Contact resistance : 10 m Ohm
|
|
-NO and NC in one casing
-Separate adjustable temperatures
-High switching capacity
-Terminals easily accessible
-Clip fixing
Two thermostats in one casing:
Thermostat (contact breaker, normally closed) for regulating heaters.
Thermostat (contact maker, normally open) for regulating filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Approvals: UL File Nr. E164102
|
|
*Large convection surface
*Clip fixing
*Ready for use
*Maintenance free
Petit thermostat compact et mécanique pour la régulation ou le contrôle de la température desrésistances chauffantes, par ex. dans les coffrets, les armoires électriques ou les équipementsde mesure en sécurité augmentée installés en zone dangereuse avec risques d'explosion.
La conception spéciale de l'interrupteur permet d'obtenir une haute sensibilité de réponse, unefaible différence de température de commutation et une durée de vie élevée (10 000 cycles).
La puissance de commutation élevée permet une commande directe des résistances chauffantes.

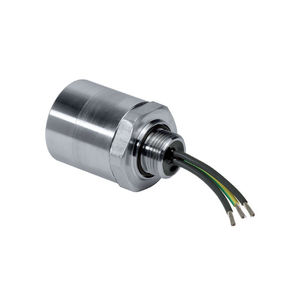

Ex protection type :
-Ex d IIC T6 - Ex tD A21 IP6X T85°C
Conformity certificate:
-01 ATEX 6074/02, LCIE N° 06 ATEX Q8011, IECEx LCI 07. 0021
|
|
Heito manufactures small thermostats with fixed adjustment called VIGITHERME.
In order to satisfy the needs of some customers, HEITO is building up his range of products with Pt 100 or Pt 1000 sensors manufactured in cases similar to the Vigitherme thermostats.
This is platinum resistance 100 ohms or 1000 ohms at 0°C with approvals CEI 751 (class B).
The temperature sensitive range is -50°C to + 200°C.
Connections are available with two, three or four wires.
|
|
Fixed Thermostat A3 Line
- Non sensitive to current
- Up to 20 A / 250 VAC
- Up to 100.000 cycles
- From 70ºC to 425ºC
- With or w/out Incorporated Fuse
High A3 Thermostats is the more extensive and versatile Line in the marketplace, offering an incredible quantity of versions and accessories that fit to practically any application of Thermal Regulation and Protection, such as:
* High Calibration Temperatures up to 425ºC (A3K line);
* Current Capacity (Up to 20 A / 250 VAC);
* Designed for Surface Convection or Conduction;
* Thermostats with Fuse (A3K3);
* Automatic or Manual Reset;
* Single or Double Poles;
* Normally Open or Closed;
* Differential Options;
* Tolerance Options;
* Innumerable mounting and housing versions;
* Different cover versions;
* Multiple terminal Options.
|
|
Fixed Thermostat R Line
- Non sensitive to current
- Up to 20 A / 250 VAC
- Up to 100.000 cycles
- From 50ºC to 160ºC
The Fixed R Thermostats Line is very versatile, offering a wide range of versions and accessories that fit to practically every application of Thermal Regulation and Cutout, such as:
* Rated Current up to 16 A / 250 VAC;
* Automatic or manual Reset;
* Normally Open or Closed;
* Differential Options;
* Tolerance Options;
* Innumerable mounting versions;
* Several terminal options.
|
|
Bimetal thermostat for temperature control within enclosures. Available fitted with close-on-rise (NO) or open-on-rise (NC) contact.
- Wide setting range (from -10°C to + 80°C)
- Snap-on mounting on DIN rail (patented system)
- Narrow switch temperature difference (ca 3°K)
|
|
-Adjustable temperature
-Change-over contact
-High switching capacity
-Thermal coupling
-Terminals easily accessible
-Clip fixing
The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices.
The thermostat registers the surrounding air and can switch both inductive.
Approvals: UL File No. E164102
|
|

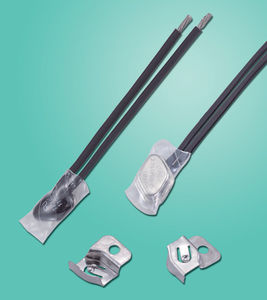

Klixon® 1NT Series: Fixed Temperature Thermostats
The 1NT thermostat is used in a variety of applications throughout the world. They help ensure the correct and safe function of many appliances and HVAC products.
Sensata Technologies’ reputation is based on the proven quality and reliability of our products. Our cost effective solutions protect the consumer as well as the manufacturers of these products. Decades of experience and the committment to continuous improvement have resulted in the best thermal protection devices available.
Applications
• Coffee and tea makers • Gas furnaces
• Sandwich makers • Fan heaters
• Hair setters • Vacuum cleaners
• Microwave ovens • ...And more!
• Rice cookers
|
|
To ensure both perfect insulation and absolute tightness, the Vigitherme can be cased in a epoxied resin.
The epoxied resin moulding A 2 is destined to be immersed in the fluids. A diameter threading of 14 mm allows to fix the device through a wall.
|
|
The Airpax 5003 series is a RoHS compliant, thin, lightweight, wafer-type thermal switch that is ideal for applications when space is at a premium. Overall depth without projecting terminals is only 0.250 inches.
The basic switch assembly is operated by a bimetal disc with positive, reinforced snap-action, which is known for its reliable repeatability. The construction of the switch assembly offers excellent shock and vibration
resistance. Thermal response is fast due to low mass.
|
|

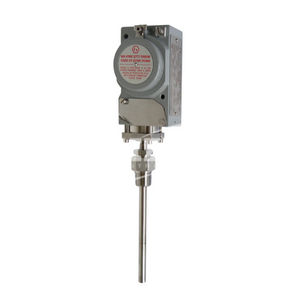

Temperature switch - P Series - Industrial model
Version : direct or remote bulb
From -50 to 600°C
IP66 epoxy coated alloy housing
Copper or stainless steel capillary and bulb
1 or 2 SPDT microswitches
Agreement : ATEX 94/9 CE - CSA - BV - GOSGORTCHNADZOR
Temperature switch - F Series - Compact industrial model
Version : direct or remote bulb
From -90 to 380°C
IP66 epoxy coated alloy housing
Copper or stainless steel capillary and bulb
1 or 2 SPDT microswitches
Agreement : ATEX 94/9 CE, GOSGORTECHNADZOR
|
|
Temperature Monitoring
Electronic Temperature Switch TDD
Temperature Switch TWR
Thermal Reed Switches TRS
Frost Predection and Capillary Thermostat TEA-F, -K
Room and Surface Thermostat TEA-R,-A
Rod and Air-DuctThermostat TEA-L, -S
Thermostats for industrial Applications TER
|
|
|
In the thermostat, a liquid enclosed in a sensor expands on exposure to heat and induces a bellows system. This in turn actuates a micro switch via a high-precision mechanism. The switch closes or opens a signal loop. Thermostats do not require any electrical energy supply. Thermostats from Trafag enjoy an outstanding reputation. Being fully maintenance-free, they can be in nonstop use for several decades without any loss of accuracy.
|
|
Adjustable Thermostat
- Current sensitive and non-sensitive
- Up to 16 A / 250 VAC
- >= 100.000 cycles
- From 0º à 280 ºC
Microtherm‘s Adjustable Thermostats are the ideal solution for Temperature Control in all kinds of Heating Equipment or house appliance. The temperature may be adjusted to any value between 20ºC and 260ºC, through a selecting spindle.
|
|
-Large setting range
-Small size
-Simple to mount
-High switching performance
KTO 011:
Thermostat (normally closed); contact breaker for regulating heaters.
Approvals: UL File Nr. E164102
|
|
-Large setting range
-Small size
-Simple to mount
-High switching performance
KTS011:
Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Approvals: UL File Nr. E164102
|
|
To ensure both perfect insulation and absolute tightness, the Vigitherme can be cased in a epoxied resin.
The standard A 1 moulding is a cylinder and its dimension are the following :
For the M 16 : Diameter 17 mm - high 23 mm
|
|
|
Hermetically sealed, high quality Snap–action switching Single pole, single throw (SPST) Normally open or normally closed Pre–set, non–adjustable calibration Max resistive load: 7 amp Operating temperature range: -65°F to 550°F (-54°C to 288°C) Ambient temperature range: -80°F to 550°F (-62°C to 288°C) Plating: standard is copper–nickel plated with silver contacts (other platings available) Many options available including switch packaged into probe, strap mount, or immersion thermostat
|
|
-NO and NC in one casing
-Default temperature settings
-High switching accuracy
-Clip fixing
Two factory-set thermostats in one casing:
Fix-Thermostat/Contact breaker (NC) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
Fix-Thermostat/Contact maker (NO) for regulating filter fans, heat exchangers or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperaure is rising.
Heaters and cooling equipment can be switched independently from each other with a temperature offset as opposed to the usual change-over contacts.
Approvals: UL File Nr. E164102
|
|
-Small size
-Default temperature settings
-Easy to install
-High switching tolerance
Fix Thermostat FTO 011
Contact breaker / NC (red casing) for regulating heaters or for switching signal devices when temperature has fallen below the minimum value.
The contact opens when temperature is rising.
Fix Thermostat FTS 011
Contact maker / NO (blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded.
The contact closes when temperaure is rising.
Approvals: UL File Nr. E164102
|
|
|
|
|
|
Thermtrol Corporation is a leading provider of precision-made protective thermal devices. We design and manufacture a wide variety of thermal controls ranging from manual reset protectors, to fixed-temperature disc thermostats and thermal cutoffs. Our engineers can recommend one of our standard thermal devices to best meet your needs, or custom design a control for your specific application. All Thermtrol products are made to exacting quality standards to ensure they meet the heat protection requirements of the most demanding commercial and industrial applications.
With sales offices located in North Canton, Ohio and Hong Kong plus manufacturing facilities in both Ohio and Vietnam, Thermtrol Corporation serves a diverse cross-section of business and industry throughout North America, Asia, and around the world. Our valued customers include companies in the appliance, electronics and lighting industries, as well as a host of other industrial manufacturers. Our thermal devices protect everything from vacuum cleaners and microwave ovens to battery packs and motors.
|
|
- Bimetal sensing element type
- Liquids and gas application
- Brass or St. Steel materials
- 1/2" male thread, other on request
- Fixed switch points from 30°C to 130°C
- N.O. or N.C. contact
- 360° revolving connector on request
- Pmax = 100 bar
- Protection class IP65
|
|

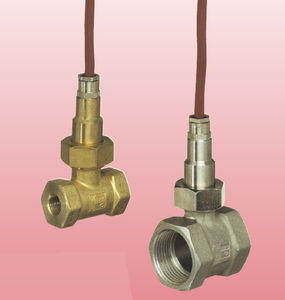

Designed with brass or anodized aluminium body, G3/8" - G1/2" - G1/4" and M22x1.5 standard thread connections, push-on 6.3x0.8 and screw terminals or DIN Plug. Available with N/O or N/C contacts.
Temperature range: +25°C...+130°C
IP54 and IP65 standard protection. On request special thermostats with IP67 protection can be supplied.
Models available with an optional magnet to attract possible fluid impurities.
Suitable for application with speed reducers, compressors, pumps, heat exchangers, explosion engines.
All the models suit the UE standards.
|
|
|
|
