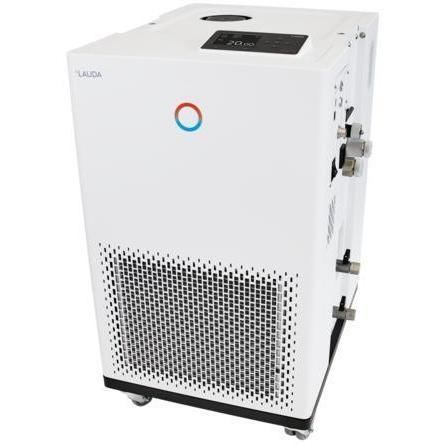

Electronic thermostat Integral IN 150 XT

programmable230VACfor heating and cooling

Product description
Operate the Integral process thermostat via the device's colour TFT display or optionally with an intuitive touch operating unit. The unit provides dynamic temperature control for external circuits and extensive connectivity for local and network operation.

Features

• Process thermostat with integrated cooling system for dynamic temperature control in external circuits
• Management of heat transfer media with stored material properties
• Fully electronic continuous PID controller for internal and external control
• Low-level and adjustable over-temperature protection with acoustic alarm (suitable for flammable and non-flammable liquids)
• Integrated port for external Pt100; second external Pt100 possible via interface module
• Adjustable integrated bypass and low internal volume with large non-thermostated expansion vessel (cold fluid layer system)
• Air-cooled condenser and SmartCool energy-saving digital cooling management including compressor on/off control
• Coloured TFT display showing actual and set values and graphical temperature profile
• Cursor and softkey input plus dedicated Tmax key for overtemperature
• Self-adapt function for automatic determination of control parameters
• LAUDA Variopump (pressure pump) with 8 selectable output levels or outflow pressure control; digital pump pressure display
• Remote fault indication via floating contact
• Programmer with up to 150 temperature/time segments divided into 5 programs
• Integrated web server for browser-based operation (PC, tablet, smartphone) with authentication and encryption
• USB and Ethernet interfaces standard; up to 2 optional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Uses traditional refrigerants (HFCs) in accordance with EU regulation (EU) 573/2024
• Clear-text menu navigation; selectable languages include DE, EN, FR, ES, IT, RU
• SelfCheck assistant for system diagnostics; PowerAdapt for optimised heating use according to supply limits

Working range

• Min. working temperature: -45 °C
• Max. working temperature: 220 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -45 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow (pressure): 65 L/min
• In/outlet connection thread (outside): M30 x 1,5
• Inlet/outlet hose size: 3/4″
• Min. filling volume: 2.5 L
• Max. filling volume: 8.7 L
• Dimensions (WxDxH): 430 x 550 x 760 mm
• Weight: 106 kg
• Noise level: 60 dB(A)
• Power supply example: 230 V; 50 Hz (variant dependent)
• Power plug example: Power cord with angled plug (CEE7/7)

Cooling capacity (50 Hz)
200 °C | Pump level 8 | Thermal oil | 1.5 kW
100 °C | Pump level 8 | Thermal oil | 1.5 kW
20 °C | Pump level 8 | Ethanol | 1.5 kW
10 °C | Pump level 8 | Ethanol | 1.5 kW
0 °C | Pump level 8 | Ethanol | 1.3 kW
-10 °C | Pump level 8 | Ethanol | 1 kW
-20 °C | Pump level 4 | Ethanol | 0.7 kW
-30 °C | Pump level 4 | Ethanol | 0.3 kW
-40 °C | Pump level 4 | Ethanol | 0.06 kW
-45 °C | Pump level 2 | Ethanol | 0.02 kW


Datasheet / Documentation
Data sheet Integral IN 150 XT is available (see product downloads).

Technical specifications

• Model: Integral IN 150 XT
• Regulation type: Electronic PID (internal or external)
• Sensor interface: Built-in Pt100; optional second Pt100 via module
• Pump: LAUDA Variopump, 8 selectable output levels or pressure control
• Protection: Low-level and adjustable overtemperature protection with acoustic alarm
• Control / Interfaces: Coloured TFT display, integrated web server, USB, Ethernet; optional modules RS232/485, Profibus, EtherCAT, analogue, contact
• Programming: 150 temperature/time segments across 5 programs
• Cooling: Air condenser, SmartCool management
• Compliance: Refrigerants (HFCs) in accordance with (EU) 573/2024
