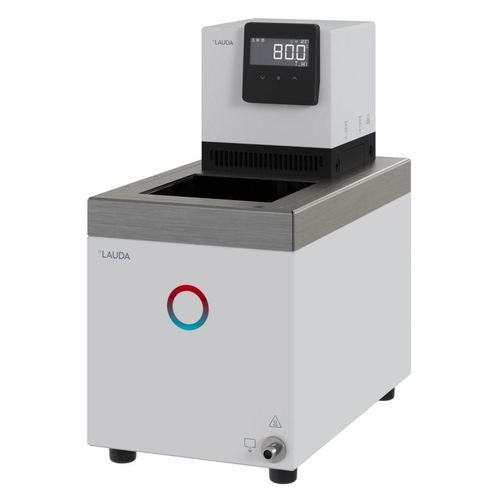

Constant temperature thermostatic bath Universa U 8 E

circulationheateddigital display

Product description
The Universa U 8 E circulating bath thermostat is designed for precise temperature control in laboratory and industrial tempering applications. It supports bath volumes in the 4–40 L range and is delivered in the variant shown with a 6.6–8.8 L bath, max. heating consumption 2.4 kW and operating temperature up to 100 °C. The device features a modular control head and interchangeable heating/cooling base for flexible configuration.

Key features

• Circulating bath thermostat for standard temperature control tasks up to 100 °C, intuitive 3-button operation.
• Reliable circulation pump with flow reduction for adjusted volumetric flow and constant pressure; max. pump flow 15 L/min, max. discharge pressure 0.2 bar.
• Modern connectivity with integrated Ethernet and USB interfaces as standard.
• Integrated Wi‑Fi communication (import and use restricted to certified countries/regions: USA, Canada, EU incl. UK and Switzerland, India).
• Future-proof modularity: interchangeable control head and heating/cooling base for easy upgrades.
• Integrated timer with countdown for time-controlled temperature processes.
• Bright VA LC two-line display for clear readings.
• Remote control and monitoring via integrated web server (LAUDA Command app or browser) secured by PKI and 2‑factor authentication; cloud connection to LAUDA.LIVE for data analysis and remote maintenance.
• Safety features including low-level and overheating protection for use with non-flammable liquids, audible and visual alarms.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: 35 ... 100 °C
Working temperature range with water cooling: 20 ... 100 °C
Operating temperature range: -30 ... 100 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Max. power consumption: 2.4 kW
Current consumption: 10 A
Bath opening (WxD): 150 x 150 mm
Min. / max. bath volume: 6.6 / 8.8 L
Max. discharge pressure: 0.2 bar
Max. pump flow: 15 L/min
Dimensions (WxDxH): 230 x 400 x 450 mm
Weight: 10 kg
Power supply: 200-240 V, 50/60 Hz
Power plug: Power cord with angled plug (CEE7/7)

Technical summary / specifications

• Model: Universa U 8 E
• Recommended working range: 35–100 °C (with water cooling 20–100 °C)
• Temperature stability: 0.05 ± K
• Bath volume (example variant): 6.6–8.8 L; bath opening 150 x 150 mm
• Max. pump flow: 15 L/min; max. discharge pressure: 0.2 bar
• Max. power consumption: 2.4 kW; current: 10 A
• Dimensions (WxDxH): 230 x 400 x 450 mm; Weight: 10 kg
• Connectivity: Ethernet, USB, integrated Wi‑Fi; web server; compatibility with LAUDA Command and LAUDA.LIVE
• Safety: low-level protection, over-temperature protection, audible and visual alarms
