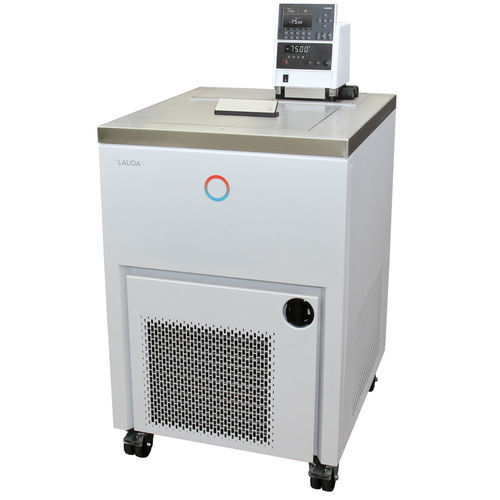

Circulation cryostat Proline Kryomate RP 4050 CW

Product description
The Proline Kryomate RP 4050 CW is a thermostatic bath/circulator available in air- and water-cooled versions. It features large bath openings and a selectable bath volume of 32.0–44.0 L, suited for laboratory and industrial tempering between -50 °C and 150 °C.

Features

• Thermostatic bath/circulator with latest microprocessor control and integrated cooling system
• Input via cursor keys, numeric soft keys or both; additional Tmax key for overtemperature
• SelfCheck Assistant for system diagnosis
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer with 150 temperature/time segments, separable into 5 programs
• Adjustable bath circulation to match application requirements
• SmartCool system for energy-saving digital cooling management including compressor on/off control
• Uses conventional refrigerants (HFCs) in accordance with EU regulation (EU) 573/2024 on F-gases
• Back-lit graphic LCD with high resolution and configurable display modes
• Detachable command console usable as remote control
• Fully electronic continuous controller with PID action for internal and external control
• Optically decoupled RS 232/485 interface integrated as standard
• Timer function for switching on, standby or running programs
• Pump connectors on the side and rear with installed bypass
• Electronically controlled heating of bath edge and bath bridge to prevent condensation and freezing at low temperatures
• Additional green LED temperature display
• EasyUse system for straightforward operation
• PowerAdapt system to use the maximum allowable heating power according to supply limits
• Upgradeable with up to 2 interfaces (RS 232/485, Profibus, analogue or contact modules, Ethernet‑USB module)
• LAUDA Vario pump with 4 selectable output steps
• Option: additional pump for external application (thread M38x1.5 O)
• Condenser cooling: water (CW version)

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)
Working temperature range: -50 ... 150 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 3.5 kW
Max. power consumption: 5 kW
Current consumption: 16 A
Max. discharge pressure: 0.9 bar
Max. pump flow (pressure): 90 L/min
Min. / max. bath volume: 32.0 / 44.0 L
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 11.7 L/min
Maximum cooling water pressure: 10 bar
Dimensions (WxDxH): 600 x 700 x 1216 mm
Weight: 124 kg
Power supply: 400 V; 3/N/PE; 50 Hz
Power plug: Power cord with plug (IEC 60309, 5‑pole, CEE, red, 16 A)


Cooling capacity (50 Hz)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
200 °C | 2 | Thermal oil | 6 kW
20 °C | 2 | Ethanol | 5.9 kW
0 °C | 2 | Ethanol | 3.4 kW
-20 °C | 2 | Ethanol | 1.7 kW
-30 °C | 2 | Ethanol | 1 kW
-40 °C | 2 | Ethanol | 0.5 kW
-50 °C | 2 | Ethanol | 0.15 kW

Characteristics / technical specifications

• Model: Proline Kryomate RP 4050 CW
• Part no.: L001665
• Working temperature range: -50 ... 150 °C
• Temperature stability: 0.05 ± K
• Bath volume: 32.0 - 44.0 L
• Heater power (max): 3.5 kW
• Max. power consumption: 5 kW
• Current consumption: 16 A
• Max. pump flow: 90 L/min
• Max. discharge pressure: 0.9 bar
• Cooling water flow rate: 11.7 L/min
• Recommended cooling water temperature: 15 °C
• Maximum cooling water pressure: 10 bar
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 124 kg
• Power supply / plug: 400 V; 3/N/PE; 50 Hz / Power cord with plug (IEC 60309, 5‑pole, CEE, red, 16 A)
