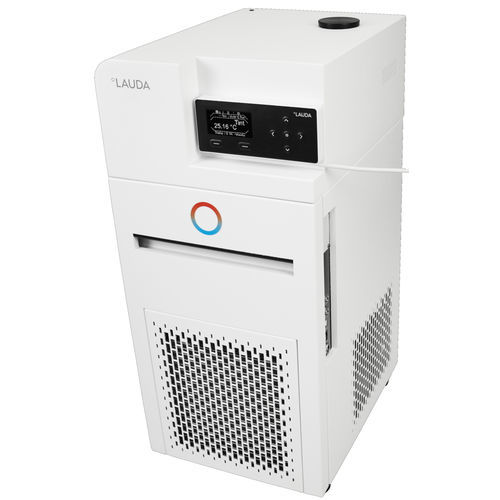

Heated circulator PRO RP 245 E

Overview
The PRO circulating heating and process thermostats are designed for external applications and specified for temperatures up to 250 °C. Their very low fill volume enables rapid temperature changes on the connected application. The compact tower design minimises required floor space. A factory-integrated cooling coil is available for counter-cooling. Cooling models offer quick temperature transitions thanks to cooling capacities of 0.6 and 0.8 kW combined with the small fill volume. All units include a pressure-suction pump and a hybrid refrigeration system permitting air or additional water cooling.

Key features

• Circulating thermostat with advanced microprocessor control and integrated refrigeration
• Input via cursor keys and softkeys
• Detachable Command console for remote operation
• Temperating bath in stainless steel (insulated, overflow and drain tap)
• Upgradeable with interface modules (RS232/485, Profibus, EtherCAT; analogue or contact modules)
• Low-level protection and adjustable overtemperature protection with audible alarm for flammable and non-flammable fluids
• Refrigeration with natural refrigerant
• High-contrast bright graphic OLED display
• EasyUse system for simplified operation
• Tower format for small footprint
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels, rear pump connections
• Fully electronic PID controller for internal or external control
• SmartCool for energy-efficient refrigeration control with automatic compressor management
• Integrated programmer: 1 program, up to 20 segments
• SelfCheck assistant for system diagnostics
• Very small fill volume for fast temperature changes
• USB and Ethernet interfaces included
• PowerAdapt system to maximise heating output without overloading the supply
• Hybrid condenser cooling (option for additional heat dissipation with cooling water)

Working range

• Minimum operating temperature: -45 °C
• Extended maximum operating temperature: 200 °C
• Temperature stability: 0.05 ± K

Technical specifications (according to DIN 12876)
Operating temperature range: -45 ... 200 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Maximum heating power: 2.5 kW
Maximum power consumption: 3.7 kW
Current consumption: 16 A
Maximum discharge pressure: 0.7 bar
Maximum pump suction: 0.4 bar
Maximum pump flow (pressure): 22 L/min
Connection thread (external) in-/outlet: M16 x 1
In-/outlet ferrule Ø: 13 mm
Minimum fill volume: 2.4 L
Maximum fill volume: 4.4 L
Dimensions (W × D × H): 300 × 430 × 675 mm
Weight: 39 kg
Power supply: 230 V; 50 Hz
Power connector: Power cord with angled Schuko plug (CEE7/7)

Cooling capacity (50 Hz)
Temperature | Pump level | Tempering fluid | Cooling capacity 50 Hz
20 °C | 8 | Ethanol | 0.8 kW
10 °C | 8 | Ethanol | 0.8 kW
0 °C | 8 | Ethanol | 0.8 kW
-10 °C | 8 | Ethanol | 0.53 kW
-20 °C | 4 | Ethanol | 0.34 kW
-30 °C | 4 | Ethanol | 0.15 kW
-35 °C | 4 | Ethanol | 0.09 kW
-40 °C | 4 | Ethanol | 0.04 kW
-45 °C | 2 | Ethanol | 0.01 kW

Characteristics / technical specifications

• Model: PRO RP 245 E
• Temperature range: -45 … 200 °C
• Temperature stability: 0.05 ± K
• Maximum heating power: 2.5 kW
• Cooling capacity (e.g. 20 °C): 0.8 kW (pump level 8, ethanol)
• Maximum pump flow (pressure): 22 L/min
• Fill volume: 2.4 – 4.4 L
• Dimensions (W×D×H): 300 × 430 × 675 mm
• Weight: 39 kg
• Power supply: 230 V; 50 Hz (example variant with angled Schuko plug CEE7/7)
