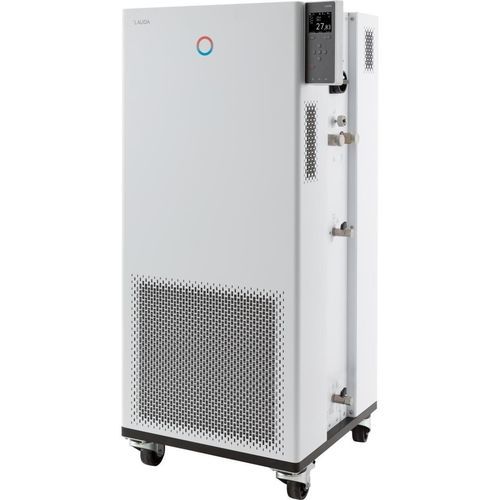

Heated circulator Integral IN 550 XTW

Description
Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended functions.

Features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat-transfer liquids with stored media data
• ATEX-certified gas-warning sensors with warning and switch-off function and external status interface for higher-level safety systems
• Self-adapt function for automatic determination of control parameters
• LAUDA Vario pump (pressure pump) with 8 selectable output levels or control of outflow pressure
• Remote fault indication via floating contact
• Integrated web server for browser-based operation in local networks via PC, tablet or smartphone with authentication and encryption
• Very small internal volume and large non-thermostated expansion vessel (cold-fluid-layer system)
• Use of natural refrigerants
• Colour TFT display showing actual and set values and graphical temperature profile
• Input via cursor and soft keys; additional Tmax key for overtemperature protection
• Quick-stop function via black push-button and remote-release contacts
• PowerAdapt system to use the maximum allowed heat from the power supply
• USB and Ethernet interfaces as standard; up to two additional interface modules optional (RS232/485, Profibus, analogue, contact, EtherCAT)
• Integrated and adjustable bypass
• SmartCool energy-saving digital cooling management including compressor on/off control
• Clear-text menu in six selectable languages (DE, EN, FR, ES, IT, RU)
• SelfCheck Assistant for system diagnosis
• Fully electronic continuous controller with PID action for internal and external control
• Low-level and adjustable overtemperature protection with acoustic alarm for flammable and non-flammable liquids
• Port for external Pt100 integrated; second external Pt100 feasible via interface module
• Programmer with 150 temperature/time segments separable into 5 programs
• Digital display of pump pressure
• Condenser cooling: water

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 220 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) - table
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
200 °C | 8 | Thermal oil | 5.8 kW
100 °C | 8 | Thermal oil | 5.8 kW
20 °C | 8 | Ethanol | 5.8 kW
10 °C | 8 | Ethanol | 5.8 kW
0 °C | 8 | Ethanol | 5.4 kW
-10 °C | 8 | Ethanol | 4 kW
-20 °C | 4 | Ethanol | 2.8 kW
-30 °C | 4 | Ethanol | 1.7 kW
-40 °C | 4 | Ethanol | 0.75 kW
-50 °C | 2 | Ethanol | 0.35 kW

Technical specifications

• Working temperature range: -50 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 8 kW
• Max. power consumption: 10.5 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow (pressure): 65 L/min
• In/outlet connection thread (outside): M30 x 1.5
• Inlet/outlet hose size: 3/4"
• Min. filling volume: 4.8 L
• Max. filling volume: 17.2 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Cooling water temperature max.: 30 °C
• Cooling water flow rate: 8 L/min
• Pressure difference cooling water min.: 0.8 bar
• Maximum pressure cooling water: 10 bar
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 181 kg
• Noise level: 60 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)
• Part no.: L004070
