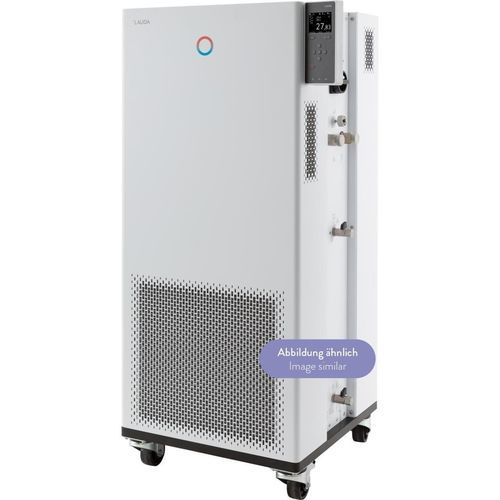

Laboratory water bath Integral IN 530 TW

with cooling systemthermostatichigh-precision

Product overview
Modular interface concept for flexible integration of the Integral process thermostats into laboratory and production processes. Standard interfaces: Ethernet, USB, integrated Pt100; additional interfaces and protocols can be added via modules.

Key features

• Process thermostat with integrated cooling system for dynamic temperature control of external circuits
• Management of heat-transfer liquids with stored properties
• Fully electronic continuous PID controller for internal and external control
• Low-level detection and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• Port for external Pt100 integrated; second external Pt100 possible via interface module
• Programmer with 150 temperature/time segments, separable into 5 programs, optimized for temperature ramps
• Integrated web server for browser-based operation via PC, tablet or smartphone; secure transfer via authentication and encryption
• Operation with conventional refrigerants (HFC) in accordance with EU regulation 573/2024
• Coloured TFT display showing actual and set values and graphical temperature profile
• Cursor and softkey input; additional Tmax key for overtemperature protection
• Self-adapt function to determine control parameters
• High-performance pressure pump and digital pump pressure display
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• SmartCool energy-saving digital cooling management with compressor on/off control
• Clear-text menu navigation in six languages (DE, EN, FR, ES, IT, RU)
• SelfCheck assistant for system diagnosis
• PowerAdapt system to use maximum allowable heating power without overloading the supply
• Standard USB and Ethernet interfaces; upgradable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Condenser cooling: water

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 120 °C
• Temperature stability: 0.05 ± K

Cooling capacity
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
100 °C | Thermal oil | 6 kW | 6 kW
20 °C | Ethanol | 6 kW | 6 kW
10 °C | Ethanol | 5.5 kW | 5.5 kW
0 °C | Ethanol | 4.5 kW | 4.5 kW
-10 °C | Ethanol | 3 kW | 3 kW
-20 °C | Ethanol | 1.6 kW | 1.6 kW
-30 °C | Ethanol | 0.7 kW | 0.7 kW


Technical data

• Working temperature range: -32 … 120 °C
• Ambient temperature range: 5 … 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.5 bar (50 Hz) / 4.6 bar (60 Hz)
• Max. pump flow (pressure): 40 L/min (50 Hz) / 65 L/min (60 Hz)
• Inlet/outlet connection thread (outside): G 3/4"
• Hose size inlet/outlet: 3/4"
• Filling volume: min. 7.2 L / max. 20.5 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C (max. 30 °C)
• Cooling water flow rate: 14.5 L/min
• Min. cooling water pressure difference: 0.8 bar
• Max. cooling water pressure: 10 bar
• Dimensions (W x D x H): 560 x 550 x 1325 mm
• Weight: 150 kg
• Noise level: 62 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)

Model / ordering

• Model: Integral IN 530 TW
• Order number: L002667
