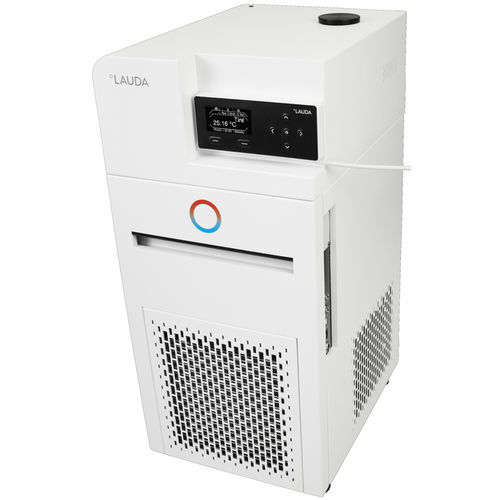

High temperature heating circulator PRO RP 250 E

refrigerated

Product overview
The PRO RP 250 E is a heating and cooling circulation thermostat for external process applications. It features a low filling volume for fast temperature response, an integrated cooling coil and hybrid condenser cooling (air and cooling water). The unit is designed for compact, space-saving installation and external tempering tasks with a working range covering deep sub-zero to elevated temperatures.

Key features

• Heating/cooling circulator with microprocessor control and integrated refrigeration
• Operation via cursor keys and softkeys; detachable command console for remote use
• Stainless steel bath vessel (insulated) with overflow and drain tap
• LAUDA Varioflex pressure/suction pump with 8 selectable levels; max. flow 22 L/min
• Fully electronic continuous PID controller for internal and external control
• SmartCool energy-saving digital cooling management with compressor control
• Hybrid cooling: condenser cooling with ambient air or complementary cooling water
• Low filling volume (2.4–4.4 L) for rapid temperature changes
• USB and Ethernet interfaces standard; retrofittable options: RS232/485, Profibus, EtherCAT, analogue/contact modules
• Integrated programmer (1 program, max. 20 segments) and SelfCheck diagnostics

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — examples
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz
20 °C | 8 | Ethanol | 1.5 kW
10 °C | 8 | Ethanol | 1.44 kW
0 °C | 8 | Ethanol | 1.2 kW
-10 °C | 8 | Ethanol | 0.84 kW
-20 °C | 4 | Ethanol | 0.54 kW
-30 °C | 4 | Ethanol | 0.29 kW
-40 °C | 4 | Ethanol | 0.11 kW
-45 °C | 4 | Ethanol | 0.04 kW
-50 °C | 2 | Ethanol | 0.02 kW


Technical data (selected)

• Working temperature range: -50 … 200 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW; current: 16 A
• Pump: LAUDA Varioflex (pressure/suction), 8 levels; max. flow pressure: 22 L/min
• Min./Max. filling volume: 2.4 L / 4.4 L
• In/Outlet thread (outside): M16 x 1; Ø olives: 13 mm
• Dimensions (WxDxH): 300 x 430 x 675 mm; Weight: 47 kg
• Power supply: 230 V; 50 Hz; power cord angled plug (CEE7/7)
