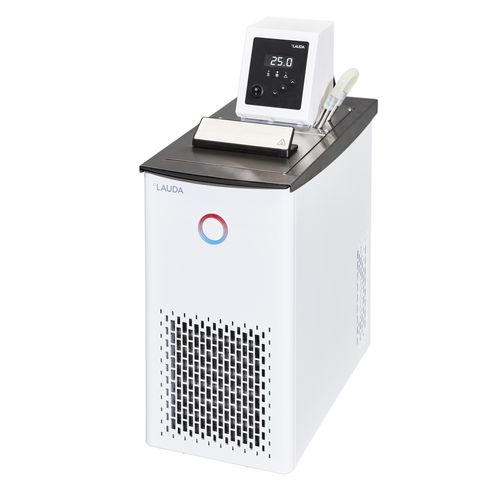

Digital display thermostatic bath Alpha RA 8

refrigeratedfor laboratory applicationslaboratory

The cooling thermostats RA 8, RA 12 and RA 24, including standard-issue bath covers and pump connections, facilitate cooling across the entire temperature range from -25 to 100°C. Automatic compressor control extends the service life of the compressor and offers savings on operation costs. Features Thermostatic bath/circulator with simplest operation and integrated cooling system Fully electronic continuous controller Circulating pump with flow reduction Condenser cooling Air 1-line LED display for display of actual or set temperature Low level and overtemperature protection for use with non-flammable liquids Bath from stainless steel Outlet connection at the rear User-friendly menu guidance with simplest 3-key operation Acoustic and visual alarm Cooling through intelligent energy saving system (compressor automatic) Utilises traditional refrigerants (HFCs) in accordance with European legislation to control F-gases (EU) 573/2024 Technical data (according to DIN 12876) Ambient temperature range 5 ... 40 °C Temperature stability 0.05 ± K Heater power max. 1.5 kW Max. power consumption 1.8 kW Current consumption 8 A Max. discharge pressure 0,2 bar Max. pump flow pressure 15 L/min Min. / max. bath volume 5.0 / 7.5 L Dimensions (WxDxH) 235 x 500 x 605 mm Weight 29 kg Power supply 220 V; 60 Hz / 230 V; 50 Hz Power plug Power cord with angled plug (CEE7/7)
