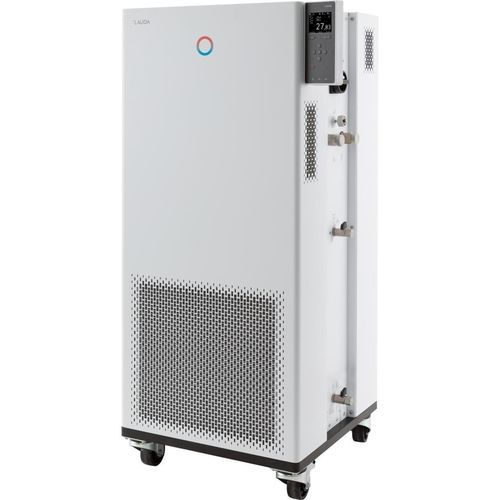

TFT graphic display temperature control unit Integral IN 550 XT

with touchscreenprogrammablefluid circulation

Description
Operate the Integral IN 550 XT process and circulation thermostat via the built-in coloured TFT display or optionally with a touch operating unit. The unit combines an integrated refrigeration system, powerful pressure pump and advanced control functions for dynamic temperature control of external circuits in industrial applications.

Features

• Process thermostat with integrated cooling for dynamic temperature control of external circuits
• Management of heat transfer fluids with stored fluid properties
• ATEX-certified gas-warning sensors with alarm and automatic shut-off; external status interface for higher-level safety systems
• Self-adapt function for automatic PID parameter determination
• LAUDA Variopump (pressure pump) with 8 selectable output levels or pump-outflow pressure control; digital pump pressure display
• Remote fault indication via floating contact
• Programmer: up to 150 temperature/time segments, divided into 5 programs
• Integrated web server for browser-based operation (PC, tablet, smartphone) with authentication and encryption
• Operates with natural refrigerants; SmartCool energy-saving cooling management with compressor on/off control
• Clear-text menu navigation and multi-language support (DE, EN, FR, ES, IT, RU)
• Quick-stop via black push-button and remote release contacts; Tmax key for overtemperature protection
• PowerAdapt system to adapt maximum heating use to supply limitations
• USB and Ethernet interfaces standard; upgradable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• SelfCheck Assistant for system diagnosis; fully electronic continuous PID controller for internal and external control
• Low-level detection and adjustable over-temperature protection with acoustic alarm suitable for flammable and non-flammable fluids
• Port for external Pt100 integrated; second external Pt100 possible via interface module
• Integrated adjustable bypass; very small internal volume and large non-thermostated expansion vessel (cold fluid layer system)
• Condenser cooling: air

Working range

• Min. working temperature: -50 °C
• Max. working temperature: 220 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — examples
200 °C | Pump level 8 | Thermal oil | 5 kW
100 °C | Pump level 8 | Thermal oil | 5 kW
20 °C | Pump level 8 | Ethanol | 5 kW
10 °C | Pump level 8 | Ethanol | 4.8 kW
0 °C | Pump level 8 | Ethanol | 4.6 kW
-10 °C | Pump level 8 | Ethanol | 3.3 kW
-20 °C | Pump level 4 | Ethanol | 2.4 kW
-30 °C | Pump level 4 | Ethanol | 1.5 kW
-40 °C | Pump level 4 | Ethanol | 0.7 kW
-50 °C | Pump level 2 | Ethanol | 0.3 kW


Technical data (according to DIN 12876)
Working temperature range: -50 ... 220 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 8 kW
Max. power consumption: 10.5 kW
Current consumption: 16 A
Max. discharge pressure: 3.1 bar
Max. pump flow (pressure): 65 L/min
In/Outlet connection thread (outside): M30 x 1.5
Inlet/outlet hose size: 3/4"
Min. filling volume: 4.8 L
Max. filling volume: 17.2 L
Dimensions (W x D x H): 560 x 550 x 1325 mm
Weight: 176 kg
Noise level: 65 dB(A)
Power supply: 400 V; 3/PE; 50 Hz
Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)
Interfaces: USB and Ethernet standard; upgradable with RS232/485, Profibus, analogue, contact or EtherCAT modules
