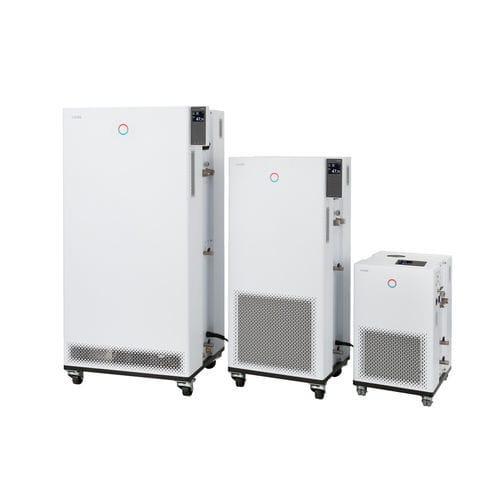

Electronic thermostat Integral IN 530 T

adjustableprogrammablerelay

Product description
The Integral IN 530 T is a modular process thermostat designed for dynamic temperature control of external circuits. Standard interfaces include Ethernet, USB and an external Pt100 port; additional interfaces and communication protocols can be added via interface modules. The unit integrates an electronic PID controller, programmable temperature/time segments and an on-board cooling system for industrial process applications.

Features

• Process thermostat with integrated cooling system for dynamic control of external circuits
• Management of heat transfer liquids with stored material data
• Fully electronic continuous PID controller for internal and external regulation
• Low-level detection and adjustable over-temperature protection with acoustic alarm for flammable and non-flammable media
• Integrated port for external Pt100; second external Pt100 possible via module
• Programmer with 150 temperature/time segments, separable into 5 programs
• Integrated web server for browser-based operation (PC, tablet, smartphone) with authentication and encryption
• Operates with traditional HFC refrigerants in compliance with EU Regulation 573/2024 on F-gases
• Colour TFT display showing actual and set values and graphical temperature profile
• Cursor and softkey input; additional Tmax key for overtemperature
• Self-adapt function for automatic tuning of control parameters
• High-pressure pump with digital pressure display and adjustable bypass
• Remote fault indication via floating contact
• SmartCool energy-saving digital cooling management with compressor on/off control
• SelfCheck assistant for system diagnosis and PowerAdapt for optimized heating use
• USB and Ethernet interfaces as standard; upgradable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact, EtherCAT)
• Condenser cooling: air

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 120 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -32 ... 120 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max.): 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 3.5 bar (50 Hz), 4.6 bar (60 Hz)
• Max. pump flow (pressure): 40 L/min (50 Hz); 65 L/min (60 Hz)
• Inlet/outlet connection thread (outside): G 3/4"
• Inlet/outlet hose size: 3/4"
• Min. filling volume: 7.2 L
• Max. filling volume: 20.5 L
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 149 kg
• Noise level: 66 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pol, CEE, red, 16 A)

Cooling capacity (extract)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
100 °C | Thermal oil | 5 kW | 5 kW
20 °C | Ethanol | 5 kW | 5 kW
10 °C | Ethanol | 4.5 kW | 4.5 kW
0 °C | Ethanol | 3.8 kW | 3.8 kW
-10 °C | Ethanol | 2.6 kW | 2.6 kW
-20 °C | Ethanol | 1.5 kW | 1.5 kW
-30 °C | Ethanol | 0.6 kW | 0.6 kW

Technical summary

• Model: Integral IN 530 T
• Working range: -32 to 120 °C
• Temperature stability: 0.05 ± K
• Heater power: 8 kW
• Max. pump flow: 40 L/min (50 Hz) / 65 L/min (60 Hz)
• Filling volume: 7.2 L – 20.5 L
• Standard interfaces: Ethernet, USB; expandable via interface modules
