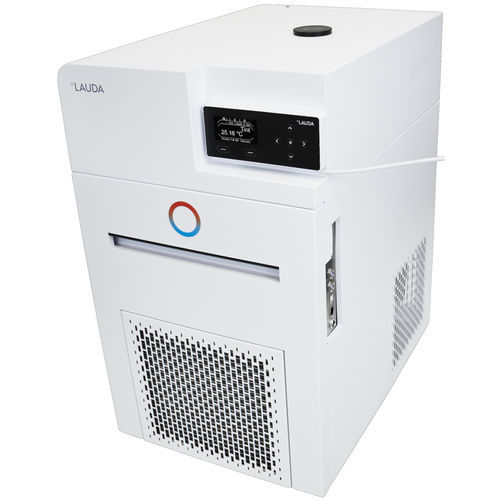

Electronic thermostat PRO RP 290 E

adjustableprogrammablerelay

Product description
The PRO RP 290 E circulation and process thermostat provides heating and cooling for external applications with rapid temperature response. Low filling volume enables fast temperature changes in the connected system. The compact tower design reduces footprint while an integrated cooling coil and hybrid cooling options (ambient air and cooling water) support demanding temperature control tasks. The unit is equipped with a LAUDA Varioflex pressure/suction pump for process circulation.

Features

• Thermostatic circulator with advanced microprocessor control and integrated cooling system
• Operation via cursor keys and softkeys; detachable command console for remote use
• Stainless steel bath vessel (insulated, with overflow and drain tap)
• Retrofittable interfaces: RS232/485, Profibus, EtherCAT; analogue or contact modules
• Low-level detection and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable fluids
• Uses natural refrigerants
• Bright, high-contrast graphic OLED display and EasyUse operation system
• Tower design for small footprint
• LAUDA Varioflex pump (pressure/suction) with 8 selectable levels; rear connections
• Fully electronic continuous PID controller for internal and external control
• SmartCool energy-saving digital cooling management including compressor on/off control
• Integrated programmer: 1 programme with up to 20 segments
• SelfCheck assistant for system diagnosis
• USB and Ethernet interfaces standard; PowerAdapt for optimized heater usage
• Hybrid cooling: complementary heat removal with cooling water

Working range

• Min. working temperature: -90 °C
• Max. working temperature: 200 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) — data
20 °C | Pump level 8 | Ethanol | 0.8 kW
10 °C | Pump level 8 | Ethanol | 0.77 kW
0 °C | Pump level 8 | Ethanol | 0.74 kW
-10 °C | Pump level 8 | Ethanol | 0.72 kW
-20 °C | Pump level 4 | Ethanol | 0.7 kW
-30 °C | Pump level 4 | Ethanol | 0.68 kW
-40 °C | Pump level 4 | Ethanol | 0.64 kW
-50 °C | Pump level 4 | Ethanol | 0.56 kW
-60 °C | Pump level 4 | Ethanol | 0.39 kW
-70 °C | Pump level 4 | Ethanol | 0.21 kW
-80 °C | Pump level 4 | Ethanol | 0.09 kW
-90 °C | Pump level 2 | Ethanol | 0.01 kW


Technical data (excerpt)

• Model: PRO RP 290 E
• Device type: Circulation and process thermostat (heating and cooling)
• Working temperature range: -90 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.5 kW
• Max. power consumption: 3.7 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.7 bar
• Max. pump suction: 0.4 bar
• Max. pump flow (pressure): 22 L/min
• In/Outlet connection thread (outside): M16 x 1
• In/Outlet Ø olives: 13 mm
• Filling volume: min. 2.4 L — max. 4.4 L
• Bath vessel: stainless steel, insulated, with overflow and drain tap
• Interfaces: USB and Ethernet standard; retrofittable for RS232/485, Profibus, EtherCAT, analogue/contact modules
• Dimensions (WxDxH): 390 x 600 x 685 mm; Weight: 77 kg
• Power supply example: 230 V; 50 Hz; Power cord with angled plug (CEE7/7)
