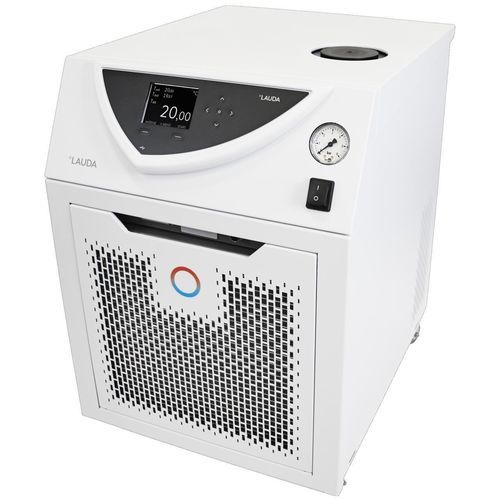

Electronic thermostat Variocool VC 2000

programmableG 3/4230VAC

Product description
All models are available in air- or water-cooled versions (W) and are fitted with steerable fixed castors. For higher-power tower models (from VC 5000) sound insulation or outdoor installation option is available.

Features

• Coloured TFT display showing actual and set values and a graphical temperature profile
• Fully electronic continuous PID controller
• USB interface as standard
• Integrated programmer with up to 150 segments, split into 5 programs
• SmartCool energy-saving digital cooling management with compressor on/off control
• Condenser cooling: air
• Clear-text menu navigation, six selectable languages (DE, EN, FR, ES, IT, RU)
• Electronic level indication and low-level alarm
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• Compatible with non-flammable heat transfer liquids (water, water/glycol)
• Uses natural refrigerants
• Easy input via cursor and soft keys
• Powerful pressure pump
• Upgradeable with interface modules (analogue, contact, RS232/485, Profibus, Ethernet-USB)
• Top filler opening and rear drain tap
• Process thermostat suitable for use with non-flammable heat transfer liquids

Working range

• Min. working temperature: -25 °C
• Max. working temperature: 80 °C
• Temperature stability: 0.05 ± K

Cooling capacity (50 Hz)
Temperature | Tempering medium | Cooling capacity 50 Hz
20 °C | Ethanol | 1.92 kW
10 °C | Ethanol | 1.52 kW
0 °C | Ethanol | 1.17 kW
-10 °C | Ethanol | 0.82 kW
-20 °C | Ethanol | 0.49 kW
-25 °C | Ethanol | 0.28 kW

Technical data (according to DIN 12876)

• Model: Variocool VC 2000
• Part no.: L004073
• Working temperature range: -25 ... 80 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 2.6 kW
• Max. power consumption: 3.1 kW
• Current consumption: 14 A
• Max. discharge pressure: 3.2 bar
• Max. pump flow (pressure): 37 L/min
• In/outlet connection thread (outside): G 3/4"
• Pressure adjustment: bypass
• Filling volume min.: 8 L
• Filling volume max.: 15 L
• Dimensions (WxDxH): 450 x 550 x 790 mm
• Weight: 58 kg
• Power supply: 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Display & control: Coloured TFT, PID controller, integrated programmer (max.150 segments)
• Interfaces: USB standard; upgradeable with multiple interface modules (analogue, contact, RS232/485, Profibus, Ethernet-USB)
• Cooling: Air condenser, SmartCool energy-saving cooling management
• Pump: Powerful pressure pump; suitable for non-flammable liquids (water, water/glycol)
• Refrigerant: Uses natural refrigerants
