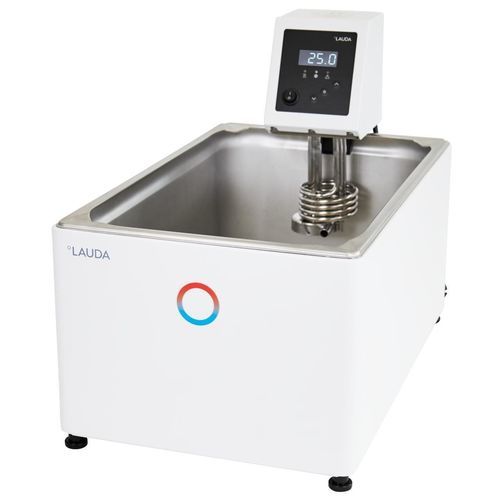

Constant temperature thermostatic bath Alpha A 24

circulationautomaticheated

Product overview
The Alpha A 24 heating thermostat provides controlled temperature regulation for laboratory and industrial baths. Operating range 25–100 °C with a bath volume of 18–25 L and a deep‑drawn stainless steel bath designed for use with non‑flammable liquids.

Key features

• Thermostatic bath with straightforward operation
• Fully electronic continuous controller
• Circulating pump with flow reduction
• 1‑line LED display for actual or set temperature
• Low‑level and overtemperature protection for non‑flammable liquids
• Deep‑drawn stainless steel bath
• Simple 3‑key user menu
• Acoustic and visual alarm
• Optional cooling coil and pump circulation set available

Working range

• Min. working temperature: 25 °C
• Max. working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max.): 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 7 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow: 15 L/min
• Bath volume (min / max): 18.0 / 25.0 L
• Dimensions (WxDxH): 332 x 535 x 420 mm
• Weight: 11 kg
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled plug (CEE7/7)
• Part no.: L000621

Accessories

• Cooling coil set
• Pump circulation/connection set
• Bath cover set

Downloads
Datasheet Alpha A 24 and user manuals available in multiple languages (PDF).
