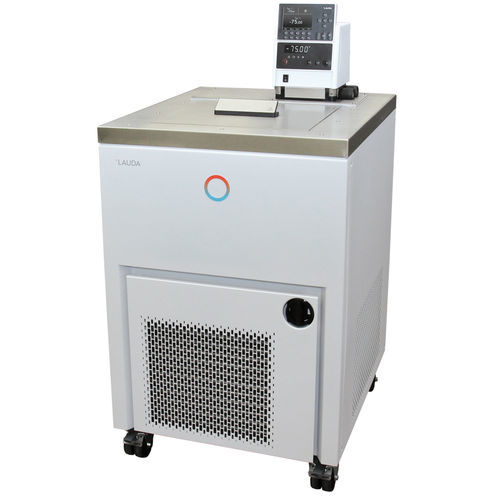

Circulation cryostat Proline Kryomate RP 4050 CW

Product overview
The Proline Kryomate RP 4050 CW is a water-cooled cryothermostat with a large bath opening and a usable bath volume of approximately 32–44 L. It provides a wide working range from -50 °C to 200 °C and is designed for industrial and laboratory tempering applications.

Features

• Thermostatic bath/circulator with microprocessor control and integrated cooling system
• Input via cursor keys and numeric softkeys; additional Tmax key for overtemperature
• SelfCheck Assistant for system diagnosis
• Low-level and overtemperature protection for use with non-flammable liquids
• Programmer: 150 temperature/time segments, up to 5 separable programs
• Adjustable bath circulation to match application requirements
• Electronically controlled bath-edge and bridge heating to prevent condensation and icing
• Back-lit graphic LCD with multiple display modes
• Detachable command console for remote operation
• Fully electronic continuous controller with PID action for internal and external control
• Optically decoupled RS-232/485 interface integrated as standard
• Timer function to switch on the thermostat, set standby or run programs
• Pump connectors on side and rear with installed bypass
• Condenser cooling: water
• Additional green LED temperature display
• EasyUse user interface for simplified operation
• PowerAdapt for optimal use of available mains power
• Option to upgrade with up to 2 interface modules (RS-232/485, Profibus, analogue/contact modules, Ethernet–USB)
• LAUDA Vario pump with 4 selectable output steps
• SmartCool: digital energy-saving cooling management with compressor on/off control
• Use of HFC refrigerants in accordance with EU Regulation (EU) 573/2024

Working range

• Minimum working temperature: -50 °C
• Maximum working temperature: 200 °C
• Temperature stability: 0.05 ± K

Technical data (according to DIN 12876)

• Working temperature range: -50 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power (max): 3.5 kW
• Max. power consumption: 5 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.5 bar
• Max. pump flow: 19 L/min
• Bath volume (min/max): 32.0 / 44.0 L
• Recommended cooling water temperature: 15 °C
• Cooling water flow rate: 11.7 L/min
• Max. cooling water pressure: 10 bar
• Dimensions (W×D×H): 600 × 700 × 1216 mm
• Weight: 124 kg
• Power supply (example): 400 V; 3/N/PE; 50 Hz — power cord with IEC 60309 plug (5‑pole, CEE, red, 16 A)

Cooling capacity (50 Hz)

• 200 °C | Pump level 2 | Thermal oil | 6 kW
• 20 °C | Pump level 2 | Ethanol | 6 kW
• 0 °C | Pump level 2 | Ethanol | 3.5 kW
• -20 °C | Pump level 2 | Ethanol | 1.8 kW
• -30 °C | Pump level 2 | Ethanol | 1.1 kW
• -40 °C | Pump level 2 | Ethanol | 0.6 kW
• -50 °C | Pump level 2 | Ethanol | 0.25 kW

Notes

• Large bath opening with bath volumes approximately 30–40 L depending on configuration
• Integrated SmartCool digital cooling management for energy-efficient operation
• Multiple pump output steps and options for internal/external PID control

Characteristics / technical specifications

• Model line: Proline Kryomate
• Type / order no.: RP 4050 CW / L001657 (example variant)
• Bath volume: 32.0 / 44.0 L (min/max)
• Temperature range: -50 °C to 200 °C
• Temperature stability: 0.05 ± K
• Max. pump flow: 19 L/min
• Max. heater power: 3.5 kW
• Key systems: SmartCool, PowerAdapt, EasyUse, LAUDA Vario pump, SelfCheck
