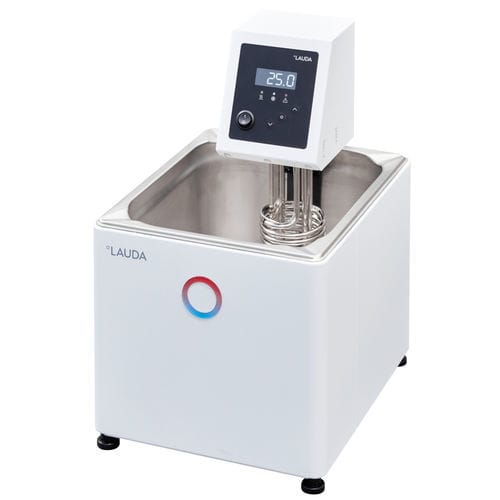

High temperature heating circulator Alpha A 12

Product overview
The Alpha A 12 is a bench-top heating thermostat designed for thermostatic baths. It features a deep-drawn stainless-steel bath with a nominal volume of 12.0 L, an electronic continuous controller and a 1.5 kW heater. The unit operates between 25 and 100 °C and is suitable for laboratory and industrial process applications. Cooling coil, pump circulation set and bath cover set are available as optional accessories.

Key features

• Thermostatic bath with simple, three-key operation
• Fully electronic continuous temperature controller
• Circulating pump with flow reduction
• 1-line LED display for actual or set temperature
• Low-level and overtemperature protection for use with non-flammable liquids
• Deep-drawn stainless-steel bath
• Acoustic and visual alarm
• Optional cooling coil and pump circulation set available

Operating range

• Minimum working temperature: 25 °C
• Maximum working temperature: 100 °C
• Temperature stability: 0.05 ± K

Technical specifications

• Working temperature range: 25 ... 100 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 1.5 kW
• Max. power consumption: 1.5 kW
• Current consumption: 7 A
• Max. discharge pressure: 0.2 bar
• Max. pump flow (pressure): 15 L/min
• Bath volume min. / max.: 8.0 / 12.0 L
• Dimensions (W×D×H): 270 x 332 x 420 mm
• Weight: 8 kg
• Power supply: 220 V; 60 Hz / 230 V; 50 Hz
• Power plug: Power cord with angled Schuko plug (CEE7/7)

Optional accessories

• Cooling coil set
• Pump circulation set
• Bath cover set
