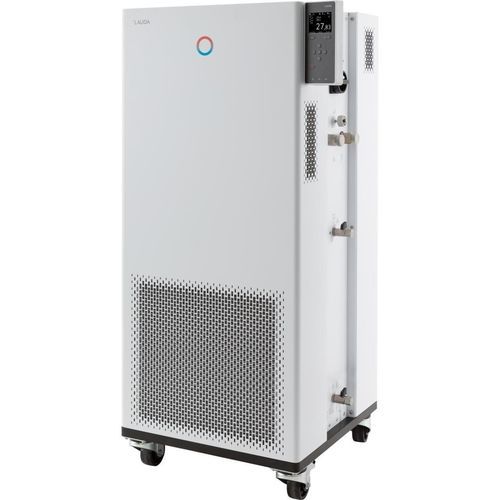

TFT graphic display temperature control unit Integral IN 280 XTW

with touchscreencirculating oilcirculating

Product description
Operate your Integral process thermostat simply via a modern TFT display directly on the device or optionally via an intuitive operating unit with touch display and extended range of functions.

Features

• Process thermostat with integrated cooling system for dynamic temperature control within external circuits
• Management of heat transfer liquids with stored properties
• Fully electronic continuous controller with PID action for internal & external control
• Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
• Port for external Pt100 integrated; second external Pt100 feasible via interface module
• Integrated and adjustable bypass
• Integrated web server for browser-based operation in local networks via PC, tablet or smartphone; secure data transfer by authentication and encryption
• Condenser cooling: water
• Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
• Easy input via cursor and soft keys; additional Tmax key for overtemperature protection
• Self-adapt function for automatic determination of control parameters
• Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
• Remote fault indication via floating contact
• Programmer with 150 temperature/time segments that can be separated into 5 programs
• Very small internal volume and large non-thermostated expansion vessel (cold fluid layer system)
• Utilises traditional refrigerants (HFCs) in accordance with Regulation (EU) 573/2024 on fluorinated greenhouse gases
• Clear-text menu navigation, six selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck Assistant for system diagnosis
• PowerAdapt system to use the maximum permissible heating power without overloading the supply
• USB and Ethernet interfaces as standard
• Option to upgrade with up to 2 additional interfaces (RS232/485, Profibus, analogue, contact or EtherCAT module)
• Digital display of pump pressure
• SmartCool system for energy-saving digital cooling management including compressor on/off control

Working range
Min. working temperature | -80 °C
Max. working temperature | 220 °C
Temperature stability | 0.05 ± K

Cooling capacity (50 Hz / 60 Hz)
Temperature | Pump level | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
200 °C | 8 | Thermal oil | 1.7 kW | 1.7 kW
100 °C | 8 | Thermal oil | 1.7 kW | 1.7 kW
20 °C | 8 | Ethanol | 1.7 kW | 1.7 kW
10 °C | 8 | Ethanol | 1.65 kW | 1.65 kW
0 °C | 8 | Ethanol | 1.6 kW | 1.6 kW
-10 °C | 8 | Ethanol | 1.6 kW | 1.6 kW
-20 °C | 4 | Ethanol | 1.8 kW | 1.8 kW
-30 °C | 4 | Ethanol | 1.8 kW | 1.8 kW
-40 °C | 4 | Ethanol | 1.8 kW | 1.8 kW
-50 °C | 4 | Ethanol | 1.5 kW | 1.5 kW
-60 °C | 4 | Ethanol | 0.9 kW | 0.9 kW
-70 °C | 4 | Ethanol | 0.45 kW | 0.45 kW
-80 °C | 2 | Ethanol | 0.18 kW | 0.18 kW

Technical specifications

• Working temperature range: -80 ... 220 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 4 kW
• Max. power consumption: 9 kW
• Current consumption: 13.5 A
• Max. discharge pressure: 3.1 bar
• Max. pump flow (pressure): 65 L/min
• Inlet / outlet connection thread (outside): M30 x 1,5
• Min. filling volume: 4.8 L
• Max. filling volume: 17.2 L
• Water cooling connection thread (outside): 3/4"
• Recommended cooling water temperature: 15 °C
• Cooling water temperature max.: 30 °C
• Cooling water flow rate: 2.7 L/min
• Pressure difference cooling water min.: 0.8 bar
• Maximum cooling water pressure: 10 bar
• Dimensions (WxDxH): 560 x 550 x 1325 mm
• Weight: 195 kg
• Noise level: 62 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A)
