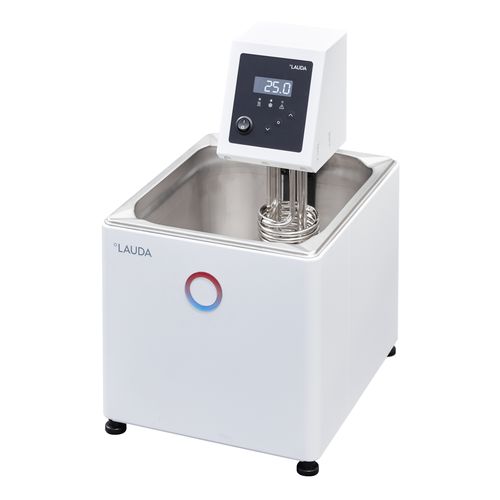

Digital display thermostatic bath Alpha A 6

compactfor heat treatmentheating

The heating thermostats A 6, A 12 and A 24 work in the temperature range between 25 and 100°C. Cooling coil, pump circulation set and bath cover set are available as accessories for all thermostats. Features Thermostatic bath with simplest operation Fully electronic continuous controller Circulating pump with flow reduction 1-line LED display for display of actual or set temperature Low level and overtemperature protection for use with non-flammable liquids Bath from deep-drawn stainless steel User-friendly menu guidance with simplest 3-key operation Acoustic and visual alarm Optional cooling coil and pump circulation set available Technical data Temperature stability 0.05 ± K Heater power max. 1.5 kW Max. power consumption 1.5 kW Current consumption 7 A Max. discharge pressure 0,2 bar Max. pump flow pressure 15 L/min Min. / max. bath volume 2.5 / 5.5 L Dimensions (WxDxH) 181 x 332 x 370 mm Weight 7 kg Power supply 220 V; 60 Hz / 230 V; 50 Hz Power plug Power cord with angled plug (CEE7/7)
