Heated thermostatic bath Universa U 16 E

digital displaycirculationconstant temperature

Overview

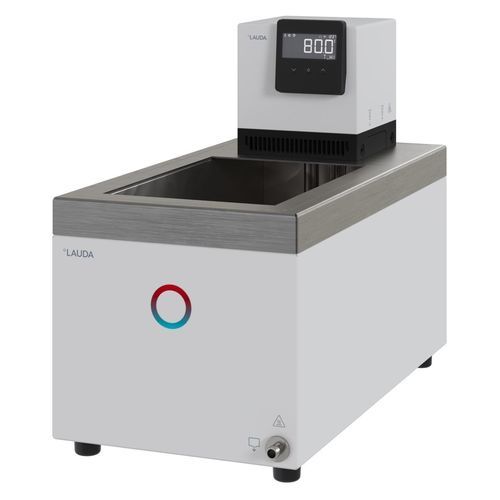

The Universa circulating bath thermostat Universa U 16 E delivers flexible temperature control for laboratory and industrial tempering tasks. This variant provides a bath volume of 12.7–17.1 L and heating/power consumption up to 2.4 kW, with integrated connectivity for local and remote operation.

Key features

• Circulating bath thermostat for standard temperature control up to 100 °C with intuitive 3‑button operation and bright VA LC two‑line display.
• Integrated circulation pump with flow reduction for controlled volumetric flow; max. pump flow 15 L/min at max. discharge pressure 0.2 bar.
• Modular design with interchangeable control head and heating/cooling base for future upgrades and serviceability.
• Connectivity: Ethernet, USB and integrated Wi‑Fi; built‑in web server and support for LAUDA Command and LAUDA.LIVE (PKI and 2‑factor authentication) for remote access and cloud analysis.
• Integrated countdown timer for timed processes and wireless connection to PC, tablet or smartphone.
• Safety features including low‑level and overheating protection plus audible and visual alarms for use with non‑flammable liquids.

Working range

• Min. working temperature: 35 °C
• Max. working temperature: 100 °C (20 … 100 °C with water cooling)
• Operating temperature range (system): -30 … 100 °C
• Temperature stability: 0.05 ± K

Technical data (excerpt)
Model: Universa U 16 E
Bath opening (WxD): 200 x 300 mm
Bath volume (min/max): 12.7 / 17.1 L
Max. heating / power consumption: up to 2.4 kW
Current: 10 A
Max. pump flow: 15 L/min; Max. discharge pressure: 0.2 bar
Dimensions (WxDxH): 280 x 550 x 450 mm
Weight: 13 kg
Power supply: 200–240 V, 50/60 Hz; Power plug: angled Schuko (CEE7/7)

Ordering & compliance

• Reference (shown variant): L003970
• Wi‑Fi import and use restricted to certified countries/regions (USA, Canada, EU incl. UK and Switzerland, India)
