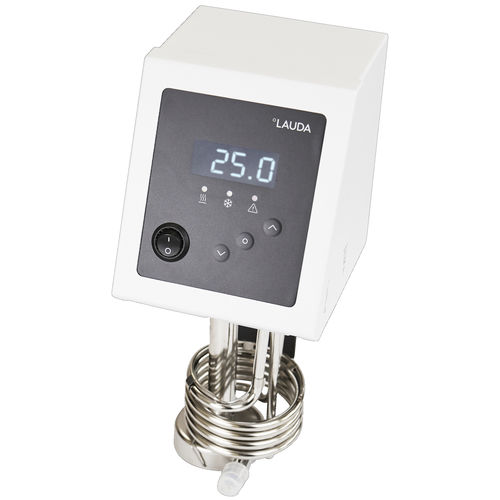

Electronic thermostat ALPHA A

adjustableprogrammableimmersed

LAUDA Alpha immersion thermostats impress with their easy-to-use control system. Thanks to the supplied screw clamp, the immersion thermostats can be mounted quickly and easily on different bath vessels. Features Immersion thermostat with simplest operation Fully electronic continuous controller Circulating pump with flow reduction 1-line LED display for display of actual or set temperature Low level and overtemperature protection for use with non-flammable liquids Usable for baths with max. 30 mm wall thickness and an immersion depth of min. 150 mm User-friendly menu guidance with simplest 3-key operation Acoustic and visual alarm Optional cooling coil and pump circulation set available Technical data (according to DIN 12876) Ambient temperature range 5 ... 40 °C Temperature stability 0.05 ± K Heater power max. 1 kW Max. power consumption 1 kW Current consumption 10 A Max. discharge pressure 0,2 bar Max. pump flow pressure 15 L/min Min. / max. bath volume max. 50.0 L Dimensions (WxDxH) 125 x 150 x 300 mm Weight 4 kg Power supply 100 V; 50/60 Hz Power plug Power cord with plug (NEMA 5-15P)
