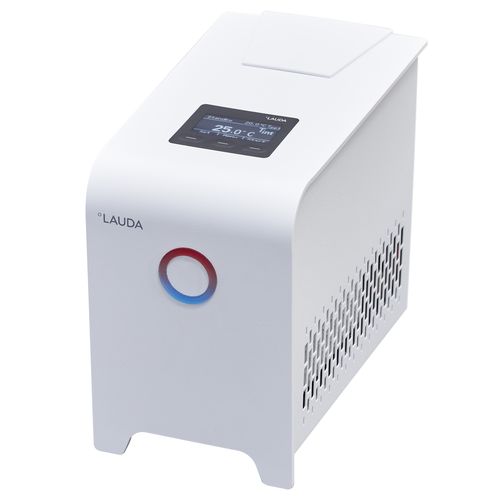

Electronic thermostat LOOP L 100

G 1/4ACfor cooling unit

The L 100 and L 250 air-cooled device types achieve a cooling capacity of 120 and 250 watt. The devices are primarily for use at constant temperatures with low power requirements. Both device types are especially energy-efficient and silent in partial-load operation. Features Easy to use recirculation thermostat with integrated cooling system Facile 3-key user interface Operates with non flammable liquids (water,water/glycol) Air cooled system Bright and high-contrast graphic OLED display RS 232 interface Quiet and low vibration level operation due to refrigerant free cooling technology User friendly menu navigation in plain language Pump connectors with fast couplings for simple change of applications Compact overall size and low weight Technical data (according to DIN 12876) Ambient temperature range 5 ... 40 °C Temperature stability 0.1 ± K Heater power max. 0.2 kW In / Outlet connection thread (outside) Quick C. 1/4″ Max. filling volume 0.28 L Dimensions (WxDxH) 175 x 301 x 266 mm Weight 7 kg Noise level 57 dB(A) Net weight 6.5 kg Max. discharge pressure 0,8 bar Max. pump flow pressure 3 L/min Power supply 100-240 V; 50/60 Hz Power plug Power cord with angled plug (CEE7/7)
