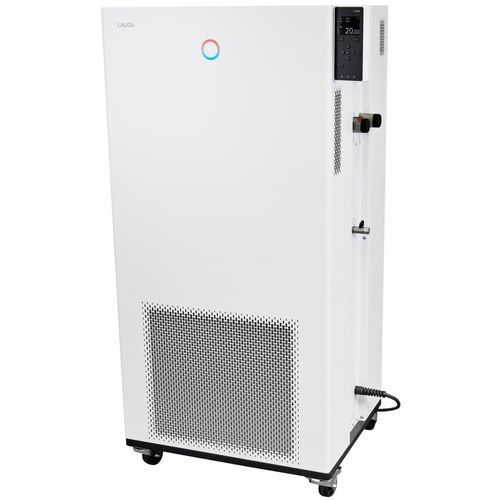

Automatic thermostatic bath Integral IN 1030 T

refrigeratedcirculationheated

Overview
The Integral IN 1030 T is a process thermostat with integrated cooling designed for dynamic temperature control of external circuits. Its modular interface concept enables flexible integration into industrial processes. Devices are equipped as standard with Ethernet, USB and Pt100; additional interfaces and protocols can be added via modules.

Features

• Process thermostat with integrated cooling system for dynamic temperature control within external circuits
• Management of heat-transfer fluids with stored fluid properties
• Fully electronic continuous PID controller for internal and external control
• Low-level detection and adjustable over-temperature protection with acoustic alarm—suitable for flammable and non-flammable liquids
• USB and Ethernet interfaces as standard; data export to USB stick
• Upgradeable with up to 2 additional interface modules (RS232/485, Profibus, analogue, contact or EtherCAT)
• Digital pump-pressure display
• Condenser cooling: air
• Coloured TFT display showing actual & set values and graphical temperature profile
• Easy input via cursor and soft keys; additional Tmax key for overtemperature protection
• Self-adapt function for automatic determination of control parameters
• High-performance pressure pump; optional additional pump for internal circulation
• Integrated port for external Pt100; second external Pt100 possible via interface module
• Programmer with 150 temperature/time segments, separable into 5 programs
• Integrated web server for browser-based operation in local networks (PC, tablet, smartphone) with authentication and encryption
• Operates with conventional refrigerants (HFCs) in accordance with EU regulation 573/2024
• Clear-text menu navigation; selectable languages: DE, EN, FR, ES, IT, RU
• SelfCheck assistant for system diagnosis
• PowerAdapt system to maximise usable heating power given the supply limits
• Remote fault indication via floating contact
• Adjustable bypass for pressure limiting
• SmartCool energy-saving digital cooling management including compressor on/off control

Working range

• Min. working temperature: -32 °C
• Max. working temperature: 150 °C
• Temperature stability: 0.1 ± K

Cooling capacity (excerpt)
Temperature | Tempering medium | Cooling capacity 50 Hz | Cooling capacity 60 Hz
100 °C | Thermal oil | 11 kW | 11 kW
20 °C | Ethanol | 11 kW | 11 kW
10 °C | Ethanol | 9.5 kW | 9.5 kW
0 °C | Ethanol | 7.1 kW | 7.1 kW
-10 °C | Ethanol | 4.9 kW | 4.9 kW
-20 °C | Ethanol | 3 kW | 3 kW
-30 °C | Ethanol | 1.6 kW | 1.6 kW


Notes

• Programmer: 150 temperature/time segments, separable into 5 programs
• Integrated web server enables secure browser-based control in local networks (authentication and encryption)

Technical specifications

• Model: Integral IN 1030 T
• Working temperature range: -32 ... 150 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.1 ± K
• Heater power max.: 8 kW
• Max. power consumption: 11 kW
• Current consumption: 16 A
• Max. discharge pressure: 5.5 bar (50 Hz), 7.0 bar (60 Hz)
• Max. pump flow pressure: 60 L/min (50 Hz); 70 L/min (60 Hz)
• In/Outlet connection thread (outside): M38 x 1,5
• Inlet/outlet hose size: 1″
• Min. filling volume: 9.7 L
• Max. filling volume: 25.5 L
• Dimensions (WxDxH): 760 x 650 x 1605 mm
• Weight: 223 kg
• Noise level: 70 dB(A)
• Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
• Power plug: Power cord with plug (IEC 60309, 5-pin, CEE, red, 16 A) — variant options available
• Pump pressure display: digital
