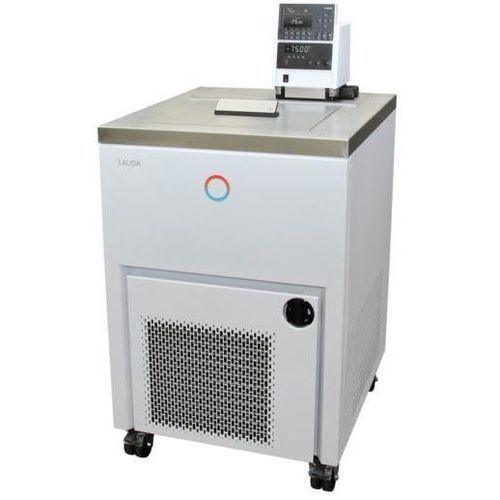

Circulation cryostat Proline Kryomate RP 4050 C

Product overview
The Proline Kryomate RP 4050 C is a thermostatic bath/circulator for industrial and laboratory temperature control. Available in air- or water-cooled versions with large bath openings and bath volumes corresponding to 30 or 40 L (technical data: 32.0 / 44.0 L). Designed for use with non-flammable heat transfer fluids and configurable for different pump/output options.

Key features

• Microprocessor-controlled bath/circulator with integrated refrigeration
• Input via cursor keys and numeric softkeys; additional Tmax key for overtemperature
• SelfCheck assistant for system diagnosis
• Low-level and overtemperature protection for non-flammable liquids
• Programmer with 150 temperature/time segments (up to 5 programs)
• Adjustable bath circulation and LAUDA Vario pump with 4 selectable output steps
• Electronically controlled bath-edge and bridge heating to prevent condensation and icing
• Back-lit graphic LCD display and detachable command console for remote operation
• Fully electronic PID controller and standard optically isolated RS 232/485 interface
• SmartCool digital cooling management and PowerAdapt power management

Working range
Min. working temperature: -50 °C
Max. working temperature: 200 °C
Temperature stability: 0.05 ± K

Cooling capacity (50 Hz) - examples
200 °C | Pump level 2 | Thermal oil | 5 kW
20 °C | Pump level 2 | Ethanol | 5 kW
0 °C | Pump level 2 | Ethanol | 3 kW
-20 °C | Pump level 2 | Ethanol | 1.6 kW
-30 °C | Pump level 2 | Ethanol | 1 kW
-40 °C | Pump level 2 | Ethanol | 0.5 kW
-50 °C | Pump level 2 | Ethanol | 0.25 kW

Technical specifications

• Working temperature range: -50 ... 200 °C
• Ambient temperature range: 5 ... 40 °C
• Temperature stability: 0.05 ± K
• Heater power max.: 3.5 kW
• Max. power consumption: 5 kW
• Current consumption: 16 A
• Max. discharge pressure: 0.5 bar
• Max. pump flow (pressure): 19 L/min
• Bath volume min. / max.: 32.0 / 44.0 L
• Dimensions (WxDxH): 600 x 700 x 1216 mm
• Weight: 129 kg
• Power supply: 400 V; 3/N/PE; 50 Hz
• Power plug: Power cord with plug (IEC 60309, 5‑pole, CEE, red, 16 A)

Options & documentation
Upgradeable with up to two interface modules (RS 232/485, Profibus, analogue/contact modules, Ethernet-USB). Timer function, pump connectors on side and rear, installed bypass, and condenser options (air or water). Technical datasheet and manuals available in PDF.
